Brand: Whirlpool
Model: MTW5605TQ0 - WASHER

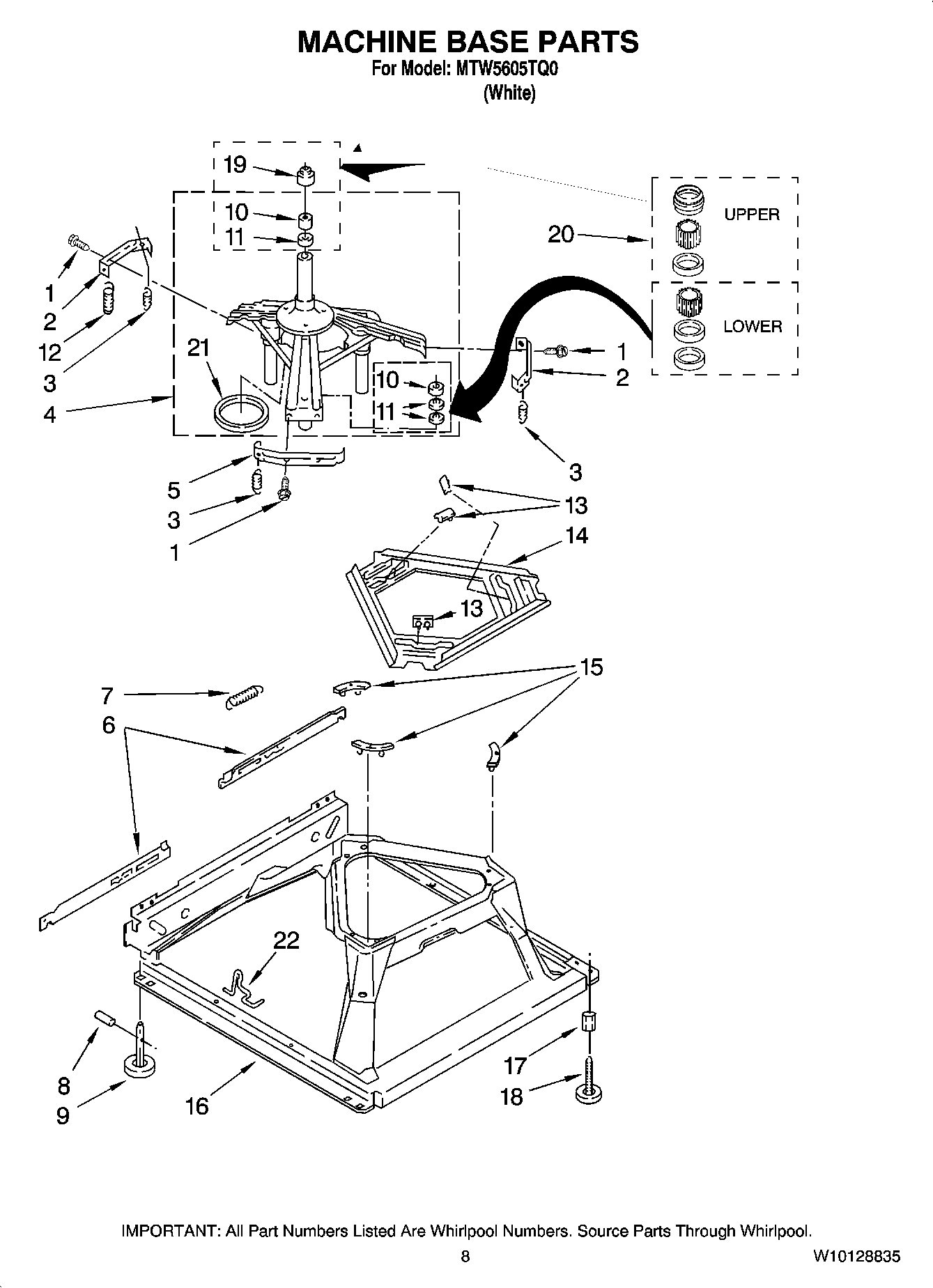

05 - MACHINE BASE PARTS 1
- 01 - TOP AND CABINET PARTS
- 01 - TOP AND CABINET PARTS 1
- 02 - COLOR VARIATION PARTS
- 02 - CONTROLS AND REAR PANEL PARTS
- 03 - AGITATOR, BASKET AND TUB PARTS
- 03 - AGITATOR, BASKET AND TUB PARTS
- 03 - DRYER FRONT PANEL AND DOOR
- 04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
- 04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS 1
- 04 - CABINET
- 05 - LIT/OPTIONAL
- 05 - MACHINE BASE PARTS
- 05 - MACHINE BASE PARTS 1
- 06 - Tub
- 06 - WATER RESERVOIR AND ICE ELBOW
- 06 - WIRING HARNESS PARTS
- 06 - WIRING HARNESS PARTS 1
- 07 - BRAKE AND DRIVE TUBE PARTS
- 07 - BRAKE AND DRIVE TUBE PARTS 1
- 07 - GAS CARRYING
- 07 - OVEN DOOR PARTS
- 08 - DISPENSER FRONT
- 08 - DISPENSER FRONT PARTS
- 08 - GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3400076 | SCREW | W10846509 | $6.15 | ||
| 2 | 64067 | BRACKET | WP64067 | $6.27 | ||
| 3 | 63907 | SPRING | WP63907 | $4.61 | ||
| 4 | 8575214 | SUPPORT | 280184 | $267.55 | ||
| 5 | 64065 | Bracket, Spring Outer (L.F.) | WP64065 | $0.00 | ||
| 6 | 63466 | Link, Leveling Mechanism (2) | $0.00 | |||
| 7 | 62597 | SPRING | 8316845 | $5.69 | ||
| 8 | 62837 | PIN-DOWEL | WP62837 | $9.78 | ||
| 9 | 62596 | FEET-LEVENING | 285244 | $15.93 | ||
| 10 | 8546455 | BEARING | WP8546455 | $24.42 | ||
| 11 | 357409 | SEAL | W11095997 | $20.16 | ||
| 12 | 388492 | TENSION SPRING | WPW10250667, WG02F09247 | $7.12 | ||
| 13 | 62568 | PAD-SUSPEN | 285219 | $21.10 | ||
| 14 | 3946509 | SKATE PLATE | WP3946509 | $151.82 | ||
| 15 | 3363660 | PAD-SUSPEN. | 285744 | $15.10 | ||
| 16 | 3946512 | BASE | 285771 | $254.09 | ||
| 17 | 3359452 | NUT | WP3359452 | $6.45 | ||
| 18 | W10001130 | FEET-LEVELING | WPW10001130 | $7.16 | ||
| 19 | 8577376 | CENTER SEAL | WP8577376 | $4.42 | ||
| 20 | 285203 | D/D CENTER POST BEARING KIT | $93.35 | |||
| 21 | 63134 | RING | WP63134 | $7.03 | ||
| 22 | 63806 | RETAINER | WPW10145155 | $4.00 |
*The price can change whitout warning
