Brand: Maytag
Model: JB36NXFXRW04 - REFRIGERATOR

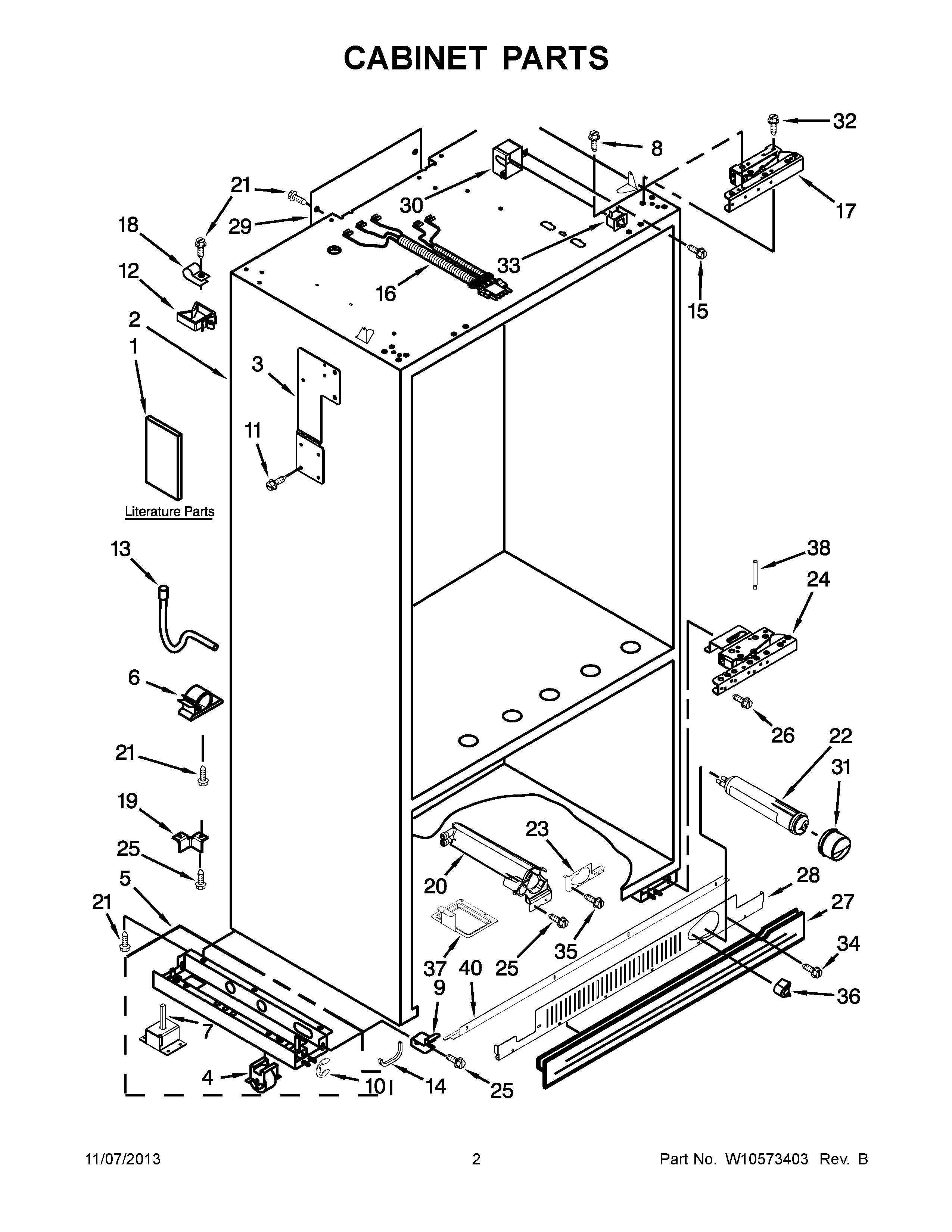

02 - CABINET PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10303991 | USE & CARE GUIDE | $0.00 | |||
| 1 | W10246774 | ENERGY GUIDE | $0.00 | |||
| 1 | W10483326 | SERVICE & WIRING SHEET | $0.00 | |||
| 1 | W10234145 | MAIN CONTROL SERVICE SHEET | $0.00 | |||
| 1 | 2317840 | Modular Icemaker Service Sheet | $0.00 | |||
| 1 | W10379137 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 2 | N/P | CABINET (NOT A SERVICEABLE PART) | $0.00 | |||
| 3 | W10188499 | BRACKET, GRILLE (LEFT HAND) | $0.00 | |||
| 3 | W10188500 | BRACKET | $86.81 | |||
| 4 | W10138054 | ROLLER-CAB | WPW10138054 | $34.87 | ||
| 5 | W10138423 | SUPPORT | W10860448 | $288.76 | ||
| 5 | W10279275 | SUPPORT | W10860229 | $293.24 | ||
| 6 | 2004514 | CLAMP-TUBE | $5.02 | |||
| 7 | 2005032 | LEVELER | $148.65 | |||
| 8 | 8533913 | SCREW | W11189635 | $12.16 | ||
| 9 | 2307640 | BRACKET | W10839844 | $36.17 | ||
| 10 | 2006841 | RING-E | $71.25 | |||
| 11 | 487415 | SCREW | WP965173 | $9.04 | ||
| 12 | W10129069 | CLIP, TUBE | $0.00 | |||
| 13 | 2314064 | TUBE-DRAIN | $71.41 | |||
| 14 | 2307584 | GROMMET | $17.15 | |||
| 15 | 487415 | SCREW | WP965173 | $9.04 | ||
| 16 | W10209506 | HARNS-SWCH | $69.17 | |||
| 16 | W10209520 | HARNS-SWCH | $66.58 | |||
| 17 | W10167397 | HINGE,DOOR | $382.57 | |||
| 17 | W10167398 | HINGE-DOOR | $230.27 | |||
| 18 | W10331955 | CLAMP | $7.65 | |||
| 19 | 2006617 | BRACKET | $69.65 | |||
| 20 | W10121140 | HOUSING | WPW10121140 | $209.27 | ||
| 21 | W10141596 | SCREW | $7.53 | |||
| 22 | W10121146 | Filter, Water | EDR3RXD1 | $0.00 | ||
| 23 | W10348782 | BRACKET | W10674648 | $15.27 | ||
| 24 | W10136731 | HINGE-DOOR | $352.54 | |||
| 25 | W10001250 | SCREW | WP489464 | $5.69 | ||
| 26 | W10142233 | SCREW | WPW10142233 | $6.58 | ||
| 27 | W10188547 | FRONT GRILLE | WPW10188547 | $116.51 | ||
| 28 | W10189196 | FRONT KICK PLATE | WPW10189196, W11739145 | $125.82 | ||
| 29 | W10426957 | COVER-DUCT | $100.04 | |||
| 30 | W10167341 | COVER | $58.48 | |||
| 30 | W10167387 | COVER | $58.63 | |||
| 31 | 2260518B | CAP-FILTER | WP2260518B | $25.70 | ||
| 32 | 8533913 | SCREW | W11189635 | $12.16 | ||
| 33 | W10656773 | LIGHT-SWITCH | W11384469 | $29.43 | ||
| 34 | W10005050 | SCREW | WP489464 | $5.69 | ||
| 35 | 8281163 | SCREW | WP8281163 | $9.34 | ||
| 36 | 2260503B | BUTTON | WP2260503B | $61.11 | ||
| 37 | 2318189 | PAN-DRIP | $113.74 | |||
| 38 | W10234202 | PIN-HINGE | $66.35 | |||
| 40 | W10250961 | GRILLE TRIM TOP | $0.00 |
*The price can change whitout warning
