Brand: Maytag

Model: YMER7651WW2 - ELECTRIC RANGE

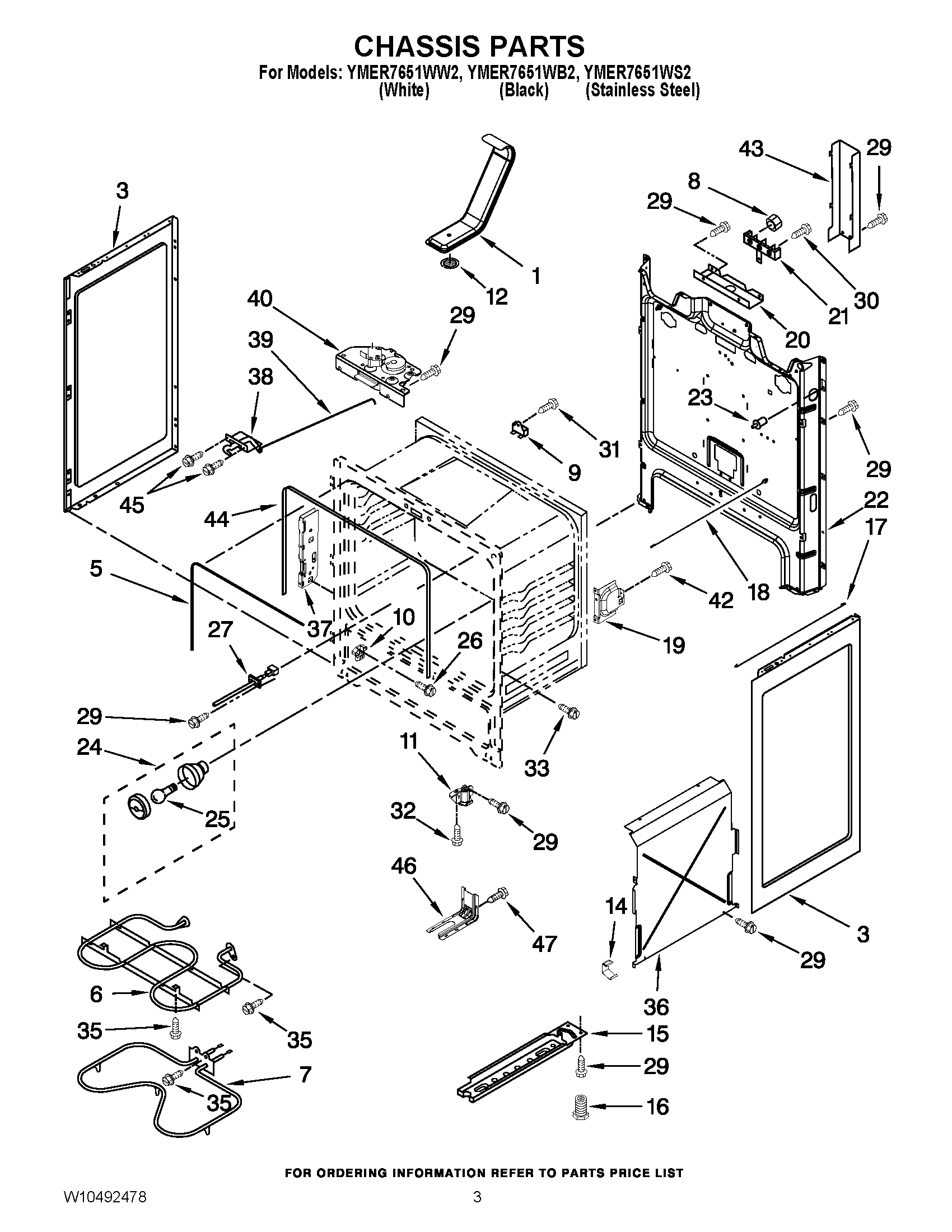

03 - CHASSIS PARTS

YMER7651WW2
Plan number Part Number Description Replacement Price
1 W10134285 Vent Tube Asmbly WPW10134285   $0.00
3 W10322769 PANEL-SIDE WPW10575396   $140.80
3 W10322770 ASM-SIDE PNL,INSUL.,BLK SERV WPW10162245   $140.01
5 8522416 Seal, Oven Door WPW10658354, W11542153     Call to order
6 W10308476 ELEMENT-BROIL W10856603   $139.20
7 W10308477 ELEMENT, BAKE (HIDDEN) ZZW10308477, WPW10308477     Call to order
8 7103P027-60 NUT 10-32 UNF .375 HEX WP7103P027-60   $5.87
9 3196548 FUSE THERMAL WP3196548   $38.08
10 W10317898 GLIDE FRONT W10763667   $89.49
11 W10341186 FOOT-LEVEL WPW10341186   $25.57
12 9761301 SCREEN   $112.80
14 W10137382 CLIP   $37.20
15 W10390008 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
15 W10390007 ASM BASE RAIL - CLIP,RIGHT WPW10306546   $102.17
16 W10058460 FOOT - LEVEL WPW10058460   $4.61
17 W10196451 RETAINER W10465685   $14.03
18 9757239 ROD,DOOR   $73.85
19 W10355173 BRACKET W10404688   $14.01
20 3186034 Bracket, Service W11728255   $0.00
21 W10246624 BLOCK-TERM WP8203546   $23.61
22 W10289149 BACK, MAIN   $0.00
23 9757262 INTERRUPTEUR DE PORTE WP9757262   $122.85
24 W10454648 SOCKET ASSY W11594027   $61.17
25 311255 Bulb, Oven Light 8009, 40A15F, WG03F02051   $0.00
26 3196165 SCREW WP3196175   $6.45
27 W10181986 SENSOR WPW10181986   $116.55
29 3196178 SCREW W11233072   $12.16
30 3400016 SCREW WP3400016   $6.65
31 3196172 SCREW   $11.46
32 W10031780 SCREW W10777162   $6.89
33 W10067840 SCREW WPW10067840   $6.32
35 3196174 SCREW WP3196174   $6.45
36 9758238 RETAINER W10450380   $28.63
37 W10289077 HINGE-RECEIVER W10647259   $6.32
38 9761013 DOOR-LATCH WP9761013   $198.07
39 W10078380 ROD,LATCH   $70.35
40 W10107840 DOOR-LATCH WPW10107840   $99.71
42 3196169 SCREW WP3196557   $6.31
43 W10326122 COVER, TERMINAL BLOCK WPW10326122   $100.35
44 W10010350 OVEN SEAL, FLANGE   $0.00
45 3196560 SCREW W11169708   $12.72
46 W10306542 ANCHOR-TIP W11447673   $24.49
47 7101P485-60 ANCHOR-TIP WP7101P485-60   $29.67
NI W10208653 INSULATION-WRAPPER WPW10208653   $66.64
NI 8272612 INSULATION WP8272612   $153.69
NI W10333344 INSULATION W11684918   $25.90
NI 8054068 RETAINER WP8054068   $69.45
*The price can change whitout warning
