Brand: Maytag
Model: BBI20TW (BOM: P1199101W W) - COMMERCIAL ELECTRIC DRYER

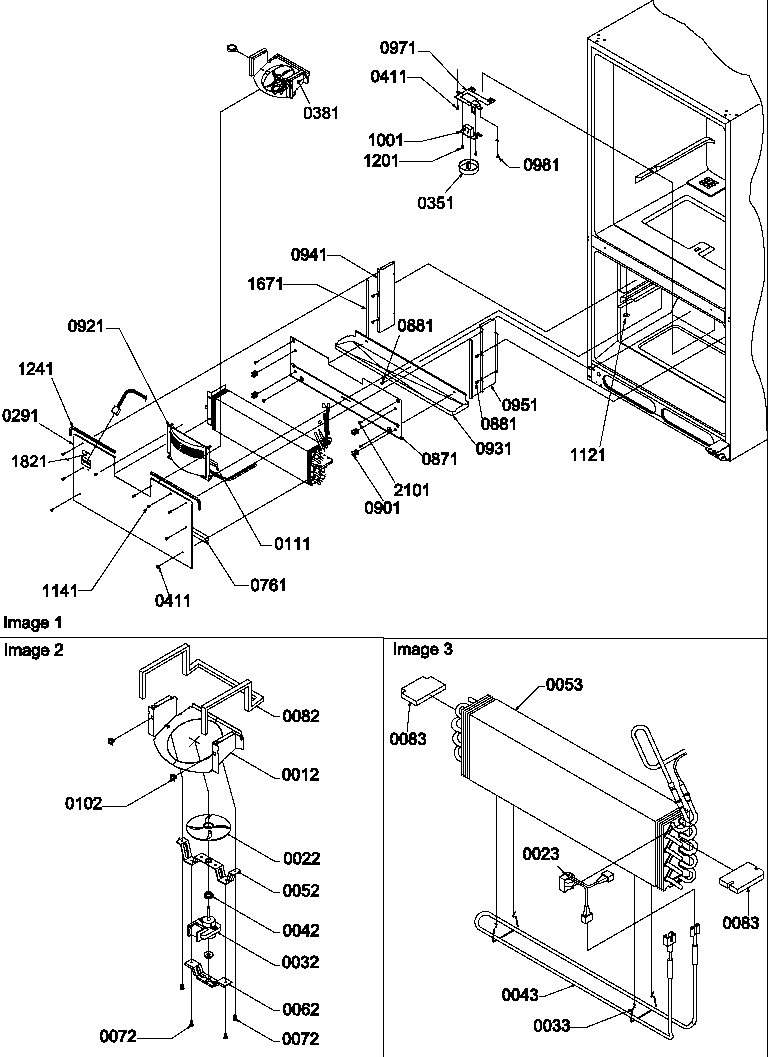

06 - EVAP AREA
- 01 - BOTTOM HINGE AND ROLLER ASSY
- 03 - CONDENSER ASSY/HIGH VOLTAGE BOX
- 04 - TOP VENTING PARTS
- 05 - DOOR ASSEMBLIES
- 06 - EVAP AREA
- 07 - FZ SHELF/DELI/CRISPER ASSEMBLIES
- 09 - MACHINE COMPARTMENT ASSY
- 09 - UNIT PARTS
- 09 - WATER SYSTEM
- 10 - SHELF LADDERS/LIGHT ASSEMBLIES
- 11 - SHELVING
- 12 - TRIM & ACCESSORIES
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 12 | 10954102 | SHROUD, EVAP FAN | $0.00 | |||
| 22 | 12059901 | BLADE-FAN | WP12059901 | $15.06 | ||
| 23 | 10442409 | THERMOSTAT | WP10442409 | $83.69 | ||
| 32 | 10654206 | MOTOR, EVAP FAN | $0.00 | |||
| 33 | 10428101 | CLIP | W11673433 | $109.19 | ||
| 42 | A1017202 | GROMMET-FAN | WP2264462 | $38.50 | ||
| 43 | 10991104 | HEATER, EVAPORATOR | $0.00 | |||
| 52 | 10656101 | BRKT MTR | WP10656102 | $0.00 | ||
| 53 | R0170059 | ASSY,LOW SIDE | $0.00 | |||
| 62 | 10656001 | BRK`T-MTR MT/LW | $0.00 | |||
| 72 | M0224416 | SCREW | WP90767 | $6.30 | ||
| 82 | B8386609 | GASKET | $0.00 | |||
| 83 | 12141901 | BLOCK, EVAPORATOR | $0.00 | |||
| 102 | M0580007 | GROMMET, SCREW | $0.00 | |||
| 111 | B8386610 | GASKET | $0.00 | |||
| 291 | 12032202 | EVAP COVER-PNT | $0.00 | |||
| 351 | D7689905 | KNOB, CONTROL | $0.00 | |||
| 381 | M0211018 | SCREW | WP98165 | $6.50 | ||
| 411 | M0238616 | SCREW | 67006425 | $6.50 | ||
| 761 | A3189320 | GASKET, FOAM | $0.00 | |||
| 871 | 12032404 | SHIELD, EVAPORATOR- E CT | $0.00 | |||
| 881 | M0238642 | SCREW | 67006425 | $6.50 | ||
| 901 | 10623002 | CLIP | $9.66 | |||
| 921 | 10952502 | COVER, FAN SHROUD | $0.00 | |||
| 931 | 12031804 | TRAY, DRIP | $0.00 | |||
| 941 | 12059702 | DAM-RTN AIR L | $0.00 | |||
| 951 | 12059701 | DAM-RTN AIR R | $0.00 | |||
| 971 | 10649801 | BRKT CONT. | $0.00 | |||
| 981 | M0253916 | SCREW | $0.00 | |||
| 1001 | C8946703 | CONTROL, TEMP | W10752646 | $187.22 | ||
| 1121 | M0310341 | PLUG, BUTTON | $0.00 | |||
| 1141 | M0310305 | PLUG, BUTTON (WHT) | $0.00 | |||
| 1201 | M0216716 | SCREW | WP90767 | $6.30 | ||
| 1241 | A3030353 | GASKET | $0.00 | |||
| 1671 | B8386604 | GASKET, AIR | $0.00 | |||
| 1821 | 12169701 | GASKET | $0.00 | |||
| 2101 | M0239229 | SCREW | 67006425 | $6.50 |
*The price can change whitout warning
