Brand: Maytag
Model: BR22VC (BOM: P1325015W C) - MICROWAVE HOOD, 1.9 CUBIC FOOT

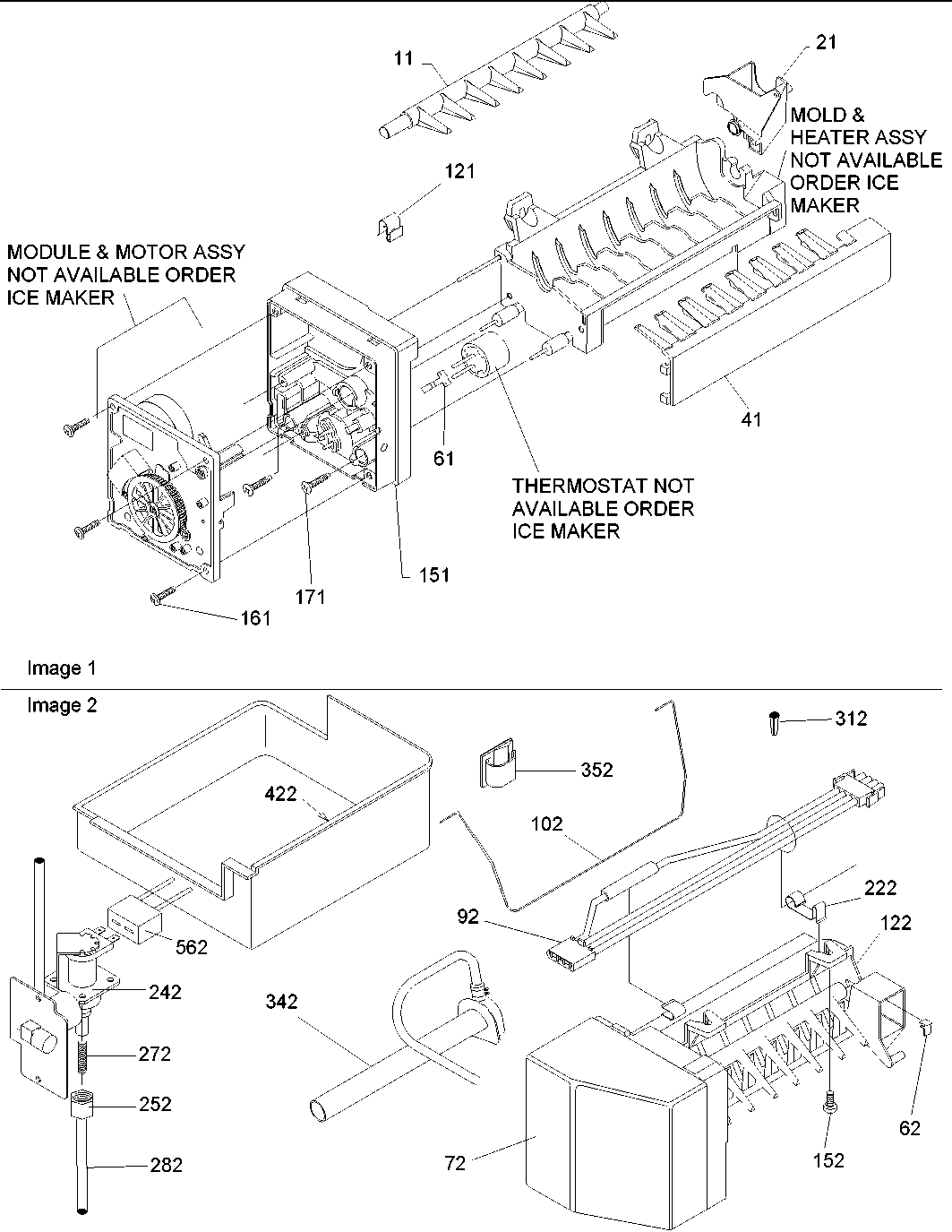

06 - Ice Maker Assy & Parts
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 11 | R0183119 | EJECTOR | WP627843 | $70.20 | ||
| 21 | R0156839 | CUP-FILL | WP628356 | $38.37 | ||
| 41 | R0183120 | ARM-STRIPR | WP2182124 | $65.48 | ||
| 61 | R0191094 | CLIP | WP2315522 | $8.02 | ||
| 62 | B5720302 | CLIP | $0.00 | |||
| 72 | 10519801 | COVER-FRNT | WPW10289690 | $6.32 | ||
| 92 | D7813004 | HARNESS,WIRE | WPD7813010 | $57.11 | ||
| 102 | 10884401 | ARM-SHUT | WP67004028 | $67.84 | ||
| 121 | 10319801 | CLIP | WP628379 | $7.94 | ||
| 122 | D7824705 | ICEMAKER | D7824706Q | $172.20 | ||
| 151 | R0183121 | HOUSING-IM | WP2195914 | $80.42 | ||
| 152 | M0211018 | SCREW | WP98165 | $6.50 | ||
| 161 | R0186041 | SCREW | $0.00 | |||
| 171 | R0186040 | SCREW | $0.00 | |||
| 222 | 10526701 | CLAMP, WIRE | $0.00 | |||
| 242 | 10524606 | VALVE,INLET | W10833899 | $195.90 | ||
| 252 | M0753001 | NUT | WP627018 | $9.40 | ||
| 272 | A1055101 | SPRING, ANTIKINK | WPA1055105 | $0.00 | ||
| 282 | B5705308 | TUBE | WPB5705307 | $8.55 | ||
| 312 | A3223101 | INSERT,TUBE | WPA3223101 | $6.28 | ||
| 342 | 10463201 | TUBE-WATER | W11176463 | $86.95 | ||
| 352 | M0104106 | CLIP | WPM0104106 | $5.68 | ||
| 422 | 10476201 | PAN-ICE | WP67001255 | $154.42 | ||
| 562 | 10525901 | HARNESS, WATER VALVE | $0.00 | |||
| NI | M0114003 | CLIP | WPM0114003 | $9.42 | ||
| NI | 10527028 | INSTR, INSTALL (KENMORE) | $0.00 | |||
| NI | A3036901 | LABEL WARRANTY | $0.00 | |||
| NI | 10244904 | COUPLING | W11033771 | $27.10 | ||
| NI | M0251015 | SCREW | 681390 | $11.46 | ||
| NI | M0311301 | PLUG BUTTON | $0.00 | |||
| NI | A3124301 | PLUG | $0.00 | |||
| NI | 10834701 | LABEL, IM | $0.00 | |||
| NI | M0108105 | CLAMP | W10833902 | $8.29 |
*The price can change whitout warning
