Brand: Maytag
Model: MAV7258AWQ - WASHER

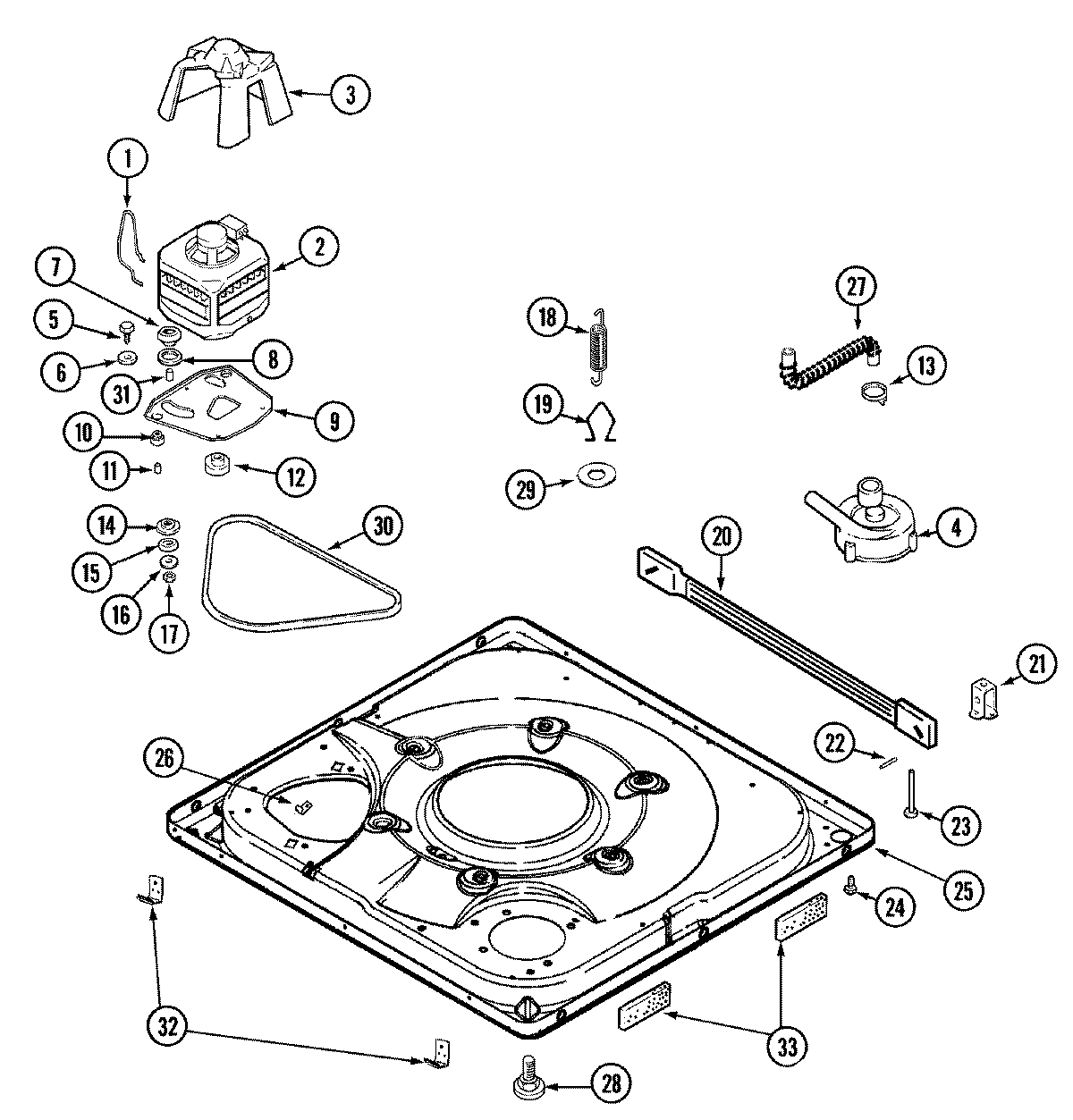

01 - BASE
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22004376 | SPRING | WP22004376 | $6.27 | ||
| 2 | 21001516 | MOTOR, 2S 1/2HP 120/60 HI-TORC | WP21001950 | $182.42 | ||
| 3 | 22002721 | SHIELD, MOTOR | $0.00 | |||
| 3 | 33002190 | SCREW | $6.43 | |||
| 4 | 21001732 | MAYTAG WASHER VERTICAL PUMP | WP35-6465 | $103.49 | ||
| 4 | 22003438 | SLEEVE, PUMP (ATL) | $0.00 | |||
| 5 | 25-7833 | SCREW | $0.00 | |||
| 6 | 25-7834 | WASHER | $0.00 | |||
| 7 | 33-9946 | ISOLATOR | WP33-9946 | $1.77 | ||
| 8 | 35-3570 | WASHER, MOTOR PIVOT | $0.00 | |||
| 9 | 21001366 | PLATE, MOTOR | $0.00 | |||
| 9 | 35-2065 | PAD, MOTOR PLATE | $0.00 | |||
| 10 | 22004348 | SLIDE, MOTOR PIVOT | $0.00 | |||
| 10 | 35-3646 | ISOLATOR | WP35-3646 | $5.43 | ||
| 11 | 25-7831 | SPACER | $0.00 | |||
| 12 | 22004297 | MOTOR, 2S 1/2HP 120/60 HI-TORC | WP21001950 | $182.42 | ||
| 12 | 21001506 | PULLEY, MOTOR-60 HZ | WG04F05506, WP21001950 | $0.00 | ||
| 13 | 22002853 | CLAMP | WP285655 | $5.88 | ||
| 14 | 35-3571 | SLIDE, MOTOR PIVOT | $0.00 | |||
| 15 | 33-9967 | WASHER | WP33-9967 | $0.66 | ||
| 16 | 25-7047 | WASHER, FLAT | $0.00 | |||
| 17 | 25-7325 | LOCKNUT | WPY707702 | $5.40 | ||
| 18 | 21001598 | SPRING, SUSPENSION | WP21001598 | $5.81 | ||
| 19 | 21001166 | HOOK- SUSP | WP21001166 | $6.27 | ||
| 20 | 21001754 | BAR, STABILIZER | $0.00 | |||
| 21 | 35-2046 | BRACKET, STABILIZER | $0.00 | |||
| 22 | 35-2052 | PIN, STABILIZER | $0.00 | |||
| 23 | 35-3020 | LEG FOOT | WP22004469 | $11.23 | ||
| 24 | 33002190 | SCREW | $6.43 | |||
| 25 | 22003390 | BASE (AS PACKED) | $0.00 | |||
| 25 | 22003511 | INSULATION | $0.00 | |||
| 26 | 25-7845 | SPEEDNUT | $0.00 | |||
| 27 | 22003285 | HOSE, TUB TO PUMP | WP22003285 | $24.67 | ||
| 28 | 35-3507 | FOOT & PAD ASSY | WP25001119 | $0.00 | ||
| 29 | Y25-7951 | WASHER, SUSPENSION HOOK | $0.00 | |||
| 30 | 22003483 | DRIVE BELT | WP22003483, WG03L06160 | $34.49 | ||
| 31 | 25-7830 | SPACER | $7.99 | |||
| 32 | 22002239 | CLIP, LOWER FRONT PANEL | WP22002239 | $0.00 | ||
| 32 | 33002190 | SCREW | $6.43 | |||
| 32 | 22002966 | NUT | WP692771 | $6.49 | ||
| 33 | 22002782 | PAD | $5.27 |
*The price can change whitout warning
