Brand: Maytag
Model: PBB1951HEB - REFRIGERATOR

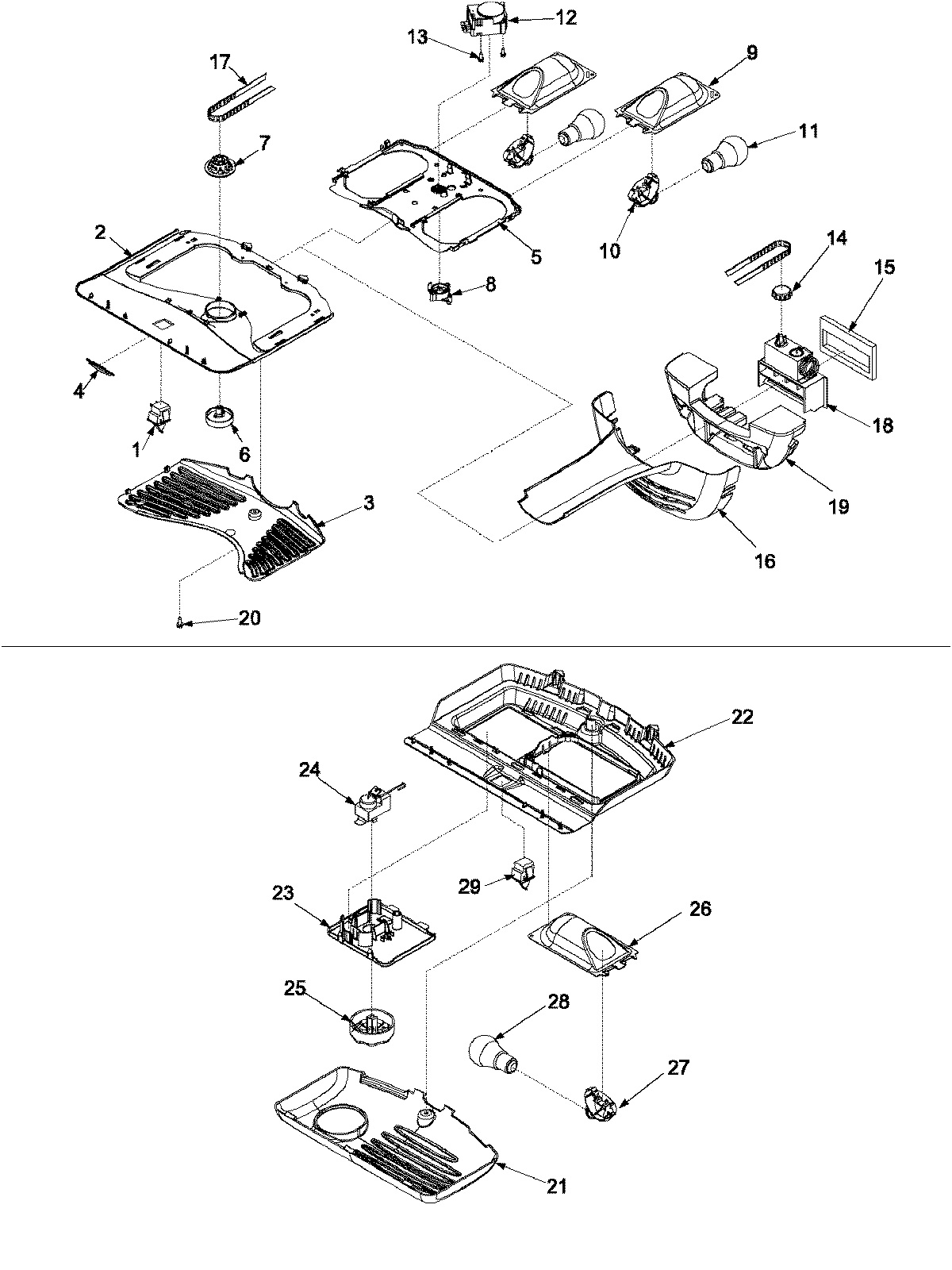

04 - CONTROLS
- 01 - CABINET BACK
- 02 - COMPRESSOR (SERIES 10)
- 03 - BULKHEAD PARTS
- 03 - COMPRESSOR (SERIES 11)
- 04 - CONTROLS
- 06 - FREEZER DOOR
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - INTERIOR CABINET & FREEZER SHELVES
- 08 - OPTIONAL ICE MAKER KIT-IC11B
- 09 - AIR FLOW PARTS
- 10 - REFRIGERATOR SHELVES
- 11 - SUPPLEMENTAL INFORMATION
- 12 - WIRING INFORMATION (SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | C3680310 | LIGHT-SWITCH | W11384469 | $29.43 | ||
| 2 | 67002083 | MODULE, LIGHT | $0.00 | |||
| 3 | 67002301 | COVER, REF LIGHT | $0.00 | |||
| 4 | 67003398 | LOGO, LIGHT MODULE | $0.00 | |||
| 5 | 67002085 | HOUSING | WP67002085 | $88.02 | ||
| 6 | 67002512 | KNOB, FRONT DAMPER | $0.00 | |||
| 7 | 67001033 | KNOB- GEAR | $21.80 | |||
| 8 | 67001034 | TENSIONER- | $10.01 | |||
| 9 | 67001035 | HOUSING | W11702858 | $63.39 | ||
| 10 | Y12570701 | SOCKET-LIGHT | W11447232 | $9.52 | ||
| 11 | 67003883 | BULB-LIGHT | W11679940 | $9.79 | ||
| 12 | 67001036 | TIMER,DEFROST | WP67001036 | $162.89 | ||
| 13 | M0216705 | SCREW | $0.00 | |||
| 14 | 67001037 | GEAR, DAMPER | $0.00 | |||
| 15 | 67001038 | GASKET, DAMPER | $0.00 | |||
| 16 | 67003878 | COVER, DAMPER | $0.00 | |||
| 17 | 67001040 | BELT, DAMPER | WP67001040 | $0.00 | ||
| 18 | 67001041 | CONTROL, DAMPER | WP67003410 | $0.00 | ||
| 19 | 67003803 | INSULATION, DAMPER | $0.00 | |||
| 20 | M0211018 | SCREW | WP98165 | $6.50 | ||
| 21 | 67001285 | COVER, FZ LIGHT | $0.00 | |||
| 22 | 67001286 | MODULE- FZ | WP12476002 | $115.04 | ||
| 23 | 67001045 | PANEL, FZ CONTROL MOUNTING | $0.00 | |||
| 24 | 67001046 | CONTROL, FRZ TEMPERATURE | WP67003000 | $193.31 | ||
| 25 | 67003420 | KNOB-THERM | $52.78 | |||
| 26 | 67001035 | HOUSING | W11702858 | $63.39 | ||
| 27 | Y12570701 | SOCKET-LIGHT | W11447232 | $9.52 | ||
| 28 | 67003883 | BULB-LIGHT | W11679940 | $9.79 | ||
| 29 | 12466101 | LIGHT-SWITCH | W11396033 | $29.43 | ||
| 30 | 67001049 | HARNESS, FZ MODULE | $0.00 | |||
| 30 | 67001043 | HARNESS, FF MODULE | $0.00 |
*The price can change whitout warning
