Brand: Maytag
Model: PYET444AZW - ELECTRIC DRYER

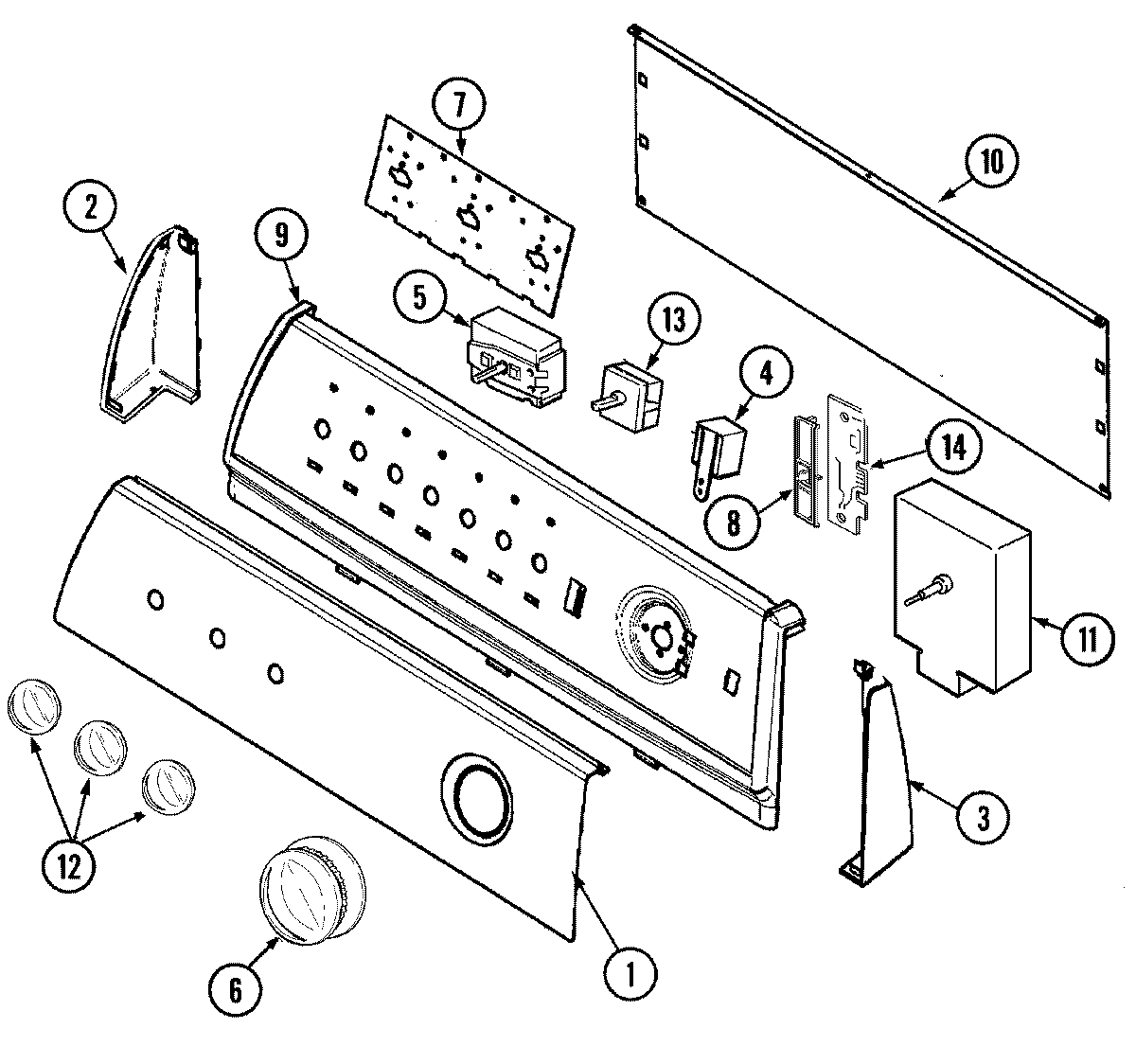

02 - CONTROL PANEL
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 53-4327 | PANEL, CONTROL | $0.00 | |||
| 2 | 21001519 | ENDCAP (WHT-LT) | $0.00 | |||
| 2 | 25-3092 | SCREW | WP90767 | $6.30 | ||
| 3 | 21001523 | ENDCAP (WHT-RT) | $0.00 | |||
| 3 | 25-3092 | SCREW | WP90767 | $6.30 | ||
| 4 | 31001557 | LEAD ASSEMBLY (SIGNAL) | $0.00 | |||
| 4 | 33001848 | SIGNAL, END OF CYCLE (CHIME) | $0.00 | |||
| 5 | 53-4395 | SWITCH, TEMPERATURE | $0.00 | |||
| 5 | 31001447 | SWITCH, TEMPERATURE | $0.00 | |||
| 5 | 31001483 | RESISTOR ASM TEMPERATURE | $0.00 | |||
| 5 | 31001704 | RESISTOR ASM TEMPERATURE | $0.00 | |||
| 5 | 25-3092 | SCREW | WP90767 | $6.30 | ||
| 6 | 31001550 | TIMER KNOB & SKIRT ASS | WP37001184 | $46.19 | ||
| 7 | 21001603 | SHIELD, CONTROL (3 POS.) | $0.00 | |||
| 7 | 21001517 | SHIELD, CONTROL (1 POS.) | $0.00 | |||
| 8 | 31001507 | BRACKET, CIRCUIT BOARD | $0.00 | |||
| 9 | 21002005 | FRAME, CONTROL PANEL (WHT) | $0.00 | |||
| 10 | 21001527 | SHIELD, REAR (BACK PANEL) | $0.00 | |||
| 10 | 25-3092 | SCREW | WP90767 | $6.30 | ||
| 11 | 31001731 | TIMER | WP31001731 | $243.77 | ||
| 11 | 25-3092 | SCREW | WP90767 | $6.30 | ||
| 12 | 21001954 | KNOB, SELECTOR (WHT) | $0.00 | |||
| 13 | 31001190 | SWITCH, TWO POSITION ROTARY | $0.00 | |||
| 14 | 33001212 | CONTROL ELECT. | WP33001212 | $269.22 | ||
| 15 | 53-4454 | HARNESS, WIRING | $0.00 | |||
| 15 | 21001978 | LEAD ASSEMBLY (GROUND) | $0.00 | |||
| 15 | 31001557 | LEAD ASSEMBLY (SIGNAL) | $0.00 | |||
| 15 | 31001558 | LEAD ASSEMBLY (SENSOR) | $0.00 | |||
| 15 | 31001559 | LEAD ASSEMBLY (BUZZER) | $0.00 | |||
| 15 | 31001510 | HARNESS, WIRE | $0.00 |
*The price can change whitout warning
