Brand: Maytag
Model: MTB1504ARW - REFRIGERATOR

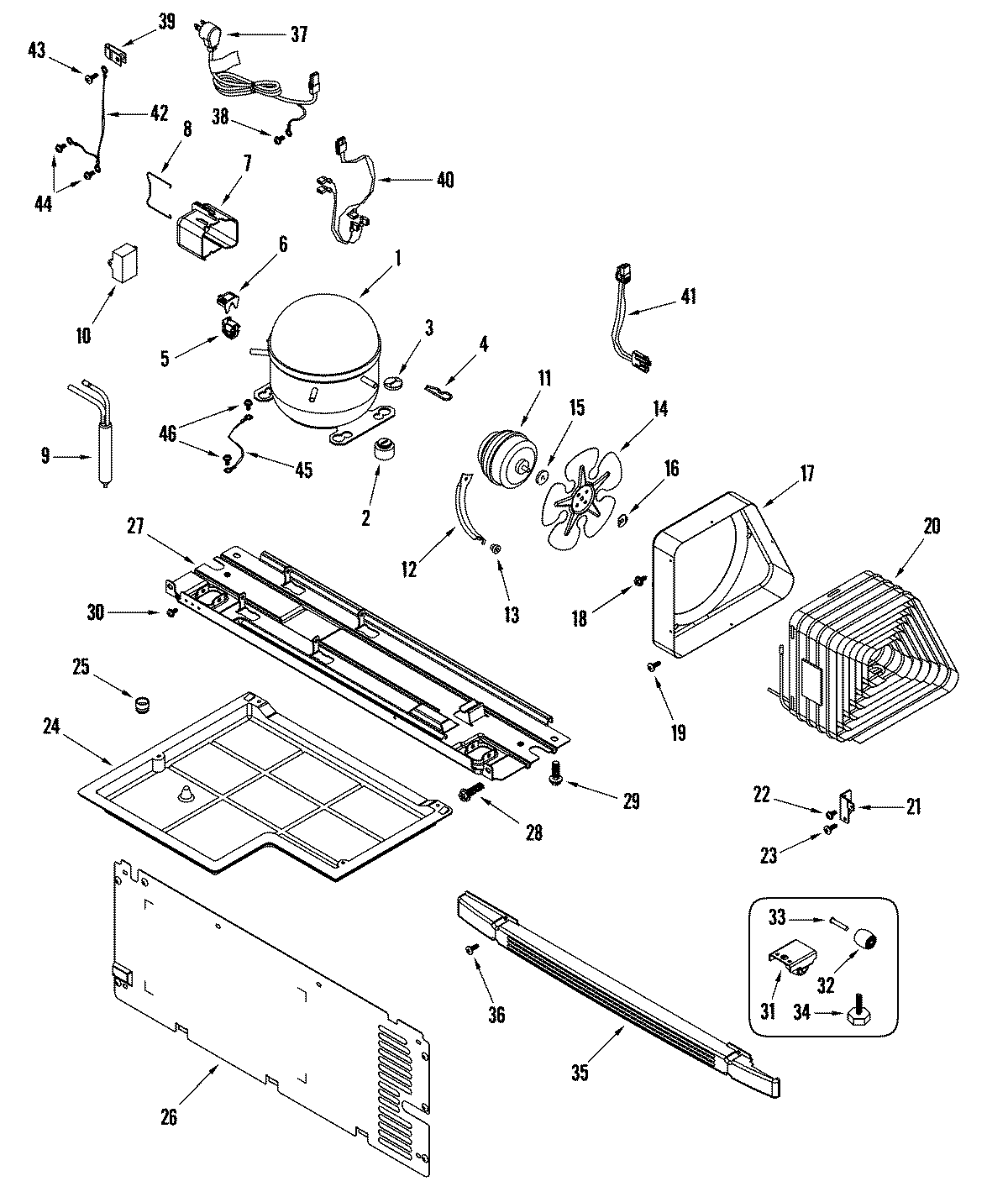

01 - COMPRESSOR
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12002261 | COMP 1/4 R134A 685BTU | W10309989 | $586.91 | ||
| 2 | 63001006 | GROMMET, COMPRESSOR | $0.00 | |||
| 3 | 63001007 | WASHER, COMPRESSOR | $0.00 | |||
| 4 | 63001008 | SPRING, COMPRESSOR | $0.00 | |||
| 5 | 63001003 | RELAY-PTC | $92.69 | |||
| 6 | 63001004 | OVERLOAD | $0.00 | |||
| 7 | 63001013 | COVER, RELAY | $0.00 | |||
| 8 | 63001014 | CLIP, RELAY COVER | $0.00 | |||
| 9 | 13900-1 | UV DRIER-TUBE | WPW10143759 | $25.87 | ||
| 10 | 63001096 | SCREW | W11233072 | $12.16 | ||
| 10 | 63001005 | CAPACITOR, RUN | $0.00 | |||
| 11 | 63001021 | MOTOR, CONDENSER FAN | $0.00 | |||
| 12 | 63001092 | SCREW | $0.00 | |||
| 12 | 63001020 | BRACKET, FAN MOTOR | $0.00 | |||
| 13 | 63001017 | GROMMET, BRACKET | $0.00 | |||
| 14 | 63001018 | BLADE, CONDENSER FAN | $0.00 | |||
| 15 | 63001074 | GROMMET, FAN MOTOR | $0.00 | |||
| 16 | 63001019 | CLIP, FAN BLADE | $0.00 | |||
| 17 | 63001015 | SHROUD, CONDENSER | $0.00 | |||
| 18 | 63001094 | SCREW | WP489399 | $5.68 | ||
| 19 | 63001093 | SCREW | $0.00 | |||
| 20 | 63001016 | CONDENSER | $0.00 | |||
| 21 | 63001023 | BRACKET, VALVE | $0.00 | |||
| 22 | 63001091 | SCREW | $0.00 | |||
| 23 | 63001096 | SCREW | W11233072 | $12.16 | ||
| 24 | 63001024 | PAN, DRAIN | $0.00 | |||
| 25 | 63001022 | CAP, DRAIN | $0.00 | |||
| 26 | 63001027 | COVER, MACHINE COMPARTMENT | $0.00 | |||
| 26 | 63001099 | SCREW | 67006425 | $6.50 | ||
| 27 | Y00000000 | SEE NOTE (BASE PAN NOT AVAILABLE) | $0.00 | |||
| 28 | 63001129 | BOLT (HEX) | $0.00 | |||
| 29 | 63001130 | BOLT (HEX) | $0.00 | |||
| 30 | 63001091 | SCREW | $0.00 | |||
| 31 | 63001100 | WHEEL ASSY. (FRT) | $0.00 | |||
| 31 | 63001096 | SCREW | W11233072 | $12.16 | ||
| 32 | 63001001 | WHEEL (REAR) | $0.00 | |||
| 33 | 63001002 | PIN, WHEEL | $0.00 | |||
| 34 | 63001025 | LEG, LEVELING | $0.00 | |||
| 35 | 63001098 | KICKPLATE (WHT) | $0.00 | |||
| 36 | 63001097 | SCREW | $0.00 | |||
| 37 | 63001009 | CORD, POWER | $0.00 | |||
| 38 | 63001091 | SCREW | $0.00 | |||
| 39 | 63001010 | CLIP, POWER CORD | $0.00 | |||
| 40 | 63001012 | WIRE HARNESS, COMPRESSOR | $0.00 | |||
| 41 | 63001028 | WIRE HARNESS, COND FAN MOTOR | $0.00 | |||
| 42 | 63001095 | WIRE, GROUND | $0.00 | |||
| 43 | 63001096 | SCREW | W11233072 | $12.16 | ||
| 44 | 63001091 | SCREW | $0.00 | |||
| 45 | 63001011 | WIRE, GROUND | $0.00 | |||
| 46 | 63001091 | SCREW | $0.00 |
*The price can change whitout warning
