Brand: Maytag
Model: MTB2156GEW - REFRIGERATOR

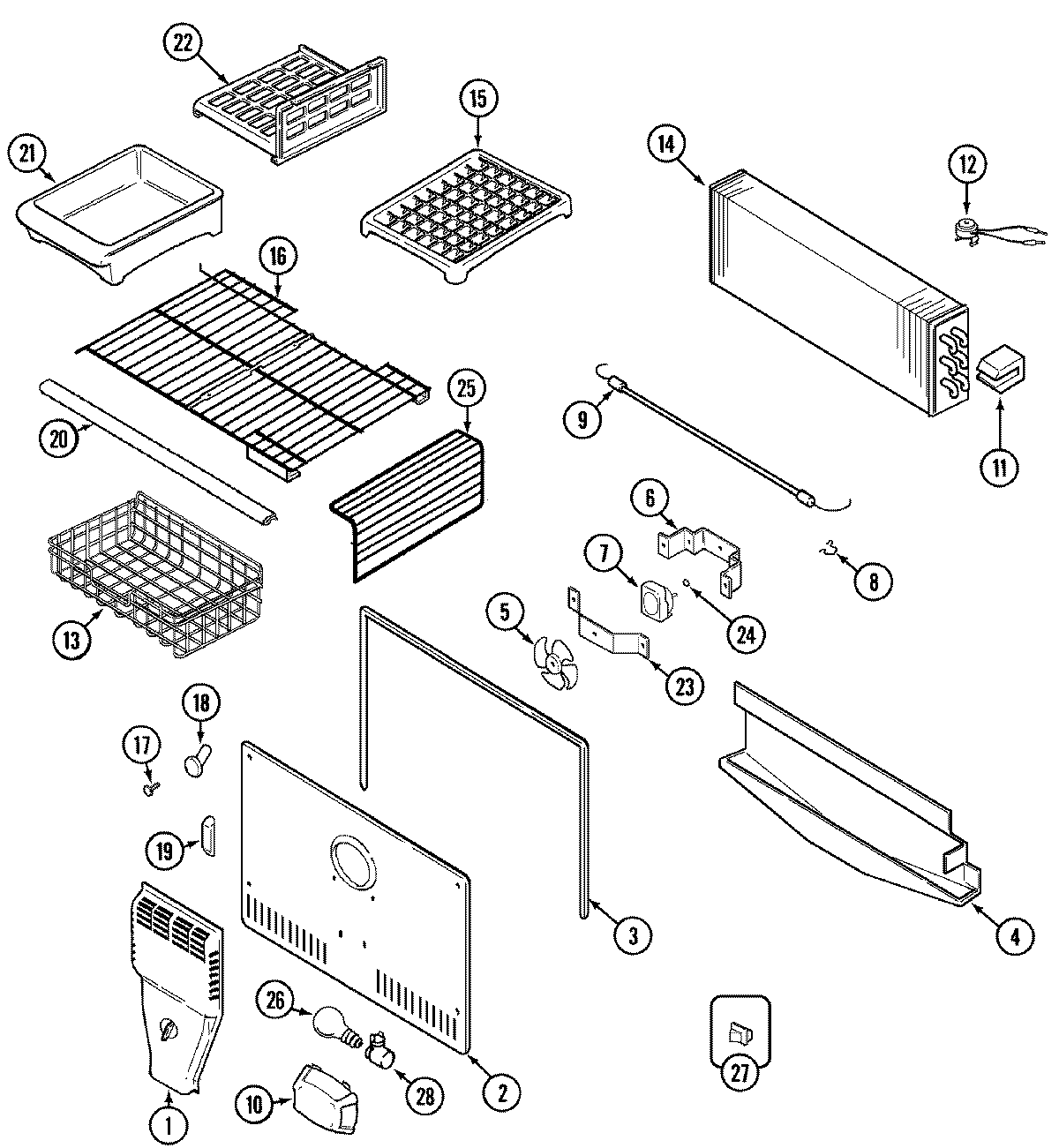

05 - FREEZER COMPARTMENT
- 01 - COMPRESSOR (MTB2156GEQ/S/W REV 15)
- 01 - MOTOR AND HOUSING UNIT
- 03 - COMPRESSOR (REV 10)
- 03 - OPTIONAL PARTS (NOT INCLUDED)
- 04 - CONTROLS
- 05 - FREEZER COMPARTMENT
- 06 - FREEZER INNER DOOR
- 07 - FREEZER OUTER DOOR
- 08 - FRESH FOOD INNER DOOR
- 10 - CONTROL PANEL & CONTROLS
- 11 - SHELVES & ACCESSORIES
- 12 - WIRING INFORMATION
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 61002266 | TUNNEL, AIR | $0.00 | |||
| 2 | 61001952 | PLUG BUTTON, EVAP. COVER | $0.00 | |||
| 2 | 61002585 | COVER, EVAPORATOR | $0.00 | |||
| 2 | 61002429 | SCREW | WP489474 | $6.64 | ||
| 3 | 61002540 | SEAL-STRIP | WP854334 | $11.34 | ||
| 3 | 61004498 | SEAL, EVAPORATOR COVER | $0.00 | |||
| 4 | 61004832 | BARRIER, FOIL | $0.00 | |||
| 4 | 61004861 | TRAY, DRIP | $0.00 | |||
| 5 | 61005066 | BLADE, EVAPORATOR FAN | WG02F09272 | $0.00 | ||
| 6 | 61001930 | BRACKET, EVAPORATOR FAN | $0.00 | |||
| 6 | 61005240 | SCREW | WP489399 | $5.68 | ||
| 7 | 61005339 | EVAPORATOR FAN MOTOR | WP61005339 | $268.10 | ||
| 7 | 61005935 | MOTOR, EVAPORATOR FAN (W/LEAD) | $0.00 | |||
| 8 | 61004834 | CLIP, DEFROST HEATER | $0.00 | |||
| 9 | 61002046 | HEATER,DEFROST | WP61002046 | $162.71 | ||
| 10 | 61002272 | SHIELD, LIGHT | $26.44 | |||
| 11 | 61004836 | SUPPORT, EVAPORATOR (RT) | $0.00 | |||
| 11 | 61004835 | SUPPORT, EVAPORATOR (LT) | $0.00 | |||
| 12 | 61005254 | DEFROST THERMOSTAT | WP61005254 | $86.37 | ||
| 13 | 61002588 | BASKET, FRZ. | $0.00 | |||
| 13 | 61002356 | CLIP, BASKET | $0.00 | |||
| 14 | 12001398 | EVAP/HEAT EXCH. ASSY. 21 & 24` | $0.00 | |||
| 15 | 61002140 | TRAY-ICE | WP61002140 | $13.02 | ||
| 16 | 61002586 | SHELF, FREEZER | $0.00 | |||
| 17 | 61005015 | PLUG BUTTON, ICE MAKER | $0.00 | |||
| 18 | 61002026 | CAP, FILL TUBE | $0.00 | |||
| 19 | 61002027 | CAP, I/M WIRE HARNESS | $0.00 | |||
| 20 | 61002587 | TRIM, FRZ. SHELF | $0.00 | |||
| 21 | 61002267 | PAN, ICE | $0.00 | |||
| 22 | 400019-1 | SCREW | $0.00 | |||
| 22 | 61004314 | SCR,8-18 X .750 MTR 6L SG | WPW10348409 | $6.30 | ||
| 22 | 61002268 | SHELF, ICE TRAY | $0.00 | |||
| 23 | 61005340 | RETAINER, EVAPORATOR FAN | $0.00 | |||
| 23 | 61005240 | SCREW | WP489399 | $5.68 | ||
| 24 | 61005341 | BUSHING, EVAPORATOR FAN | $0.00 | |||
| 25 | 61002270 | LEG, FRZ. SHELF | $0.00 | |||
| 26 | 31956-1 | BULB-LIGHT | W11679940 | $9.79 | ||
| 27 | 61006157 | SWITCH, LIGHT | $0.00 | |||
| 27 | 66987-1 | LIGHT-SWITCH | W11384469 | $29.43 | ||
| 28 | 68974-3 | RECEPTACLE, BULB | 12679501 | $0.00 | ||
| 28 | 61005748 | RECEPTACLE, BULB | $0.00 | |||
| 29 | 61005544 | WIRE HARNESS, FRZ. | $0.00 | |||
| 29 | 61005937 | WIRE HARNESS, FRZ. | $0.00 |
*The price can change whitout warning
