Brand: Maytag
Model: MAH21PDDWW - WASHER

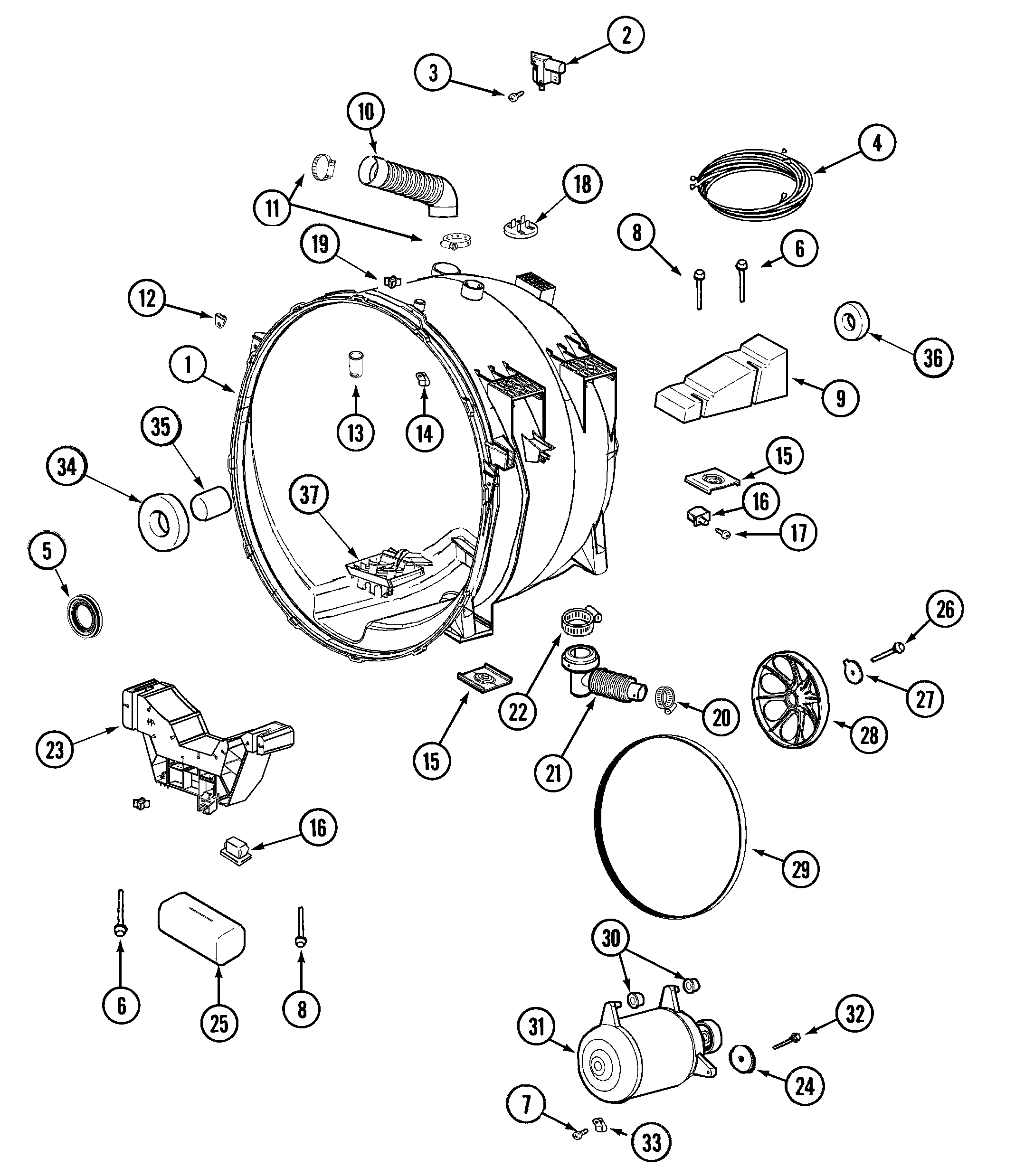

06 - OUTER TUB & MOTOR
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 22004465 | OUTER TUB ASSY, AS PACK | $896.02 | |||
| 002 | 22003302 | SWITCH, INTERNAL UNBALANCE | $0.00 | |||
| 003 | 22002061 | SCREW | 910187 | $5.08 | ||
| 004 | 22004052 | HARNESS UPPER SUB ASSY | $0.00 | |||
| 005 | 12002022 | LIP SEAL KIT | $99.78 | |||
| 006 | 22003615 | BOLT (LONG) | $0.00 | |||
| 006 | 33002973 | SCREW | WP33002973 | $6.31 | ||
| 007 | 22002019 | SCREW | WP3351614 | $6.64 | ||
| 008 | 22003616 | BOLT- DOUB | $6.20 | |||
| 008 | 33002973 | SCREW | WP33002973 | $6.31 | ||
| 009 | 22002102 | WEIGHT, COUNTER BALANCE | $0.00 | |||
| 010 | 22002083 | HOSE, INJECTOR | WP22002083 | $0.00 | ||
| 011 | 22003627 | COLLAR | WP616099 | $5.82 | ||
| 012 | 22002103 | CLIP, U | $0.00 | |||
| 013 | 22003833 | HOSE, TUB SHOWER | $0.00 | |||
| 013 | 22004310 | WATER DEFL | $11.23 | |||
| 014 | 22002006 | CLIP, WIRE HARNESS & OUTER TUB | $0.00 | |||
| 015 | 22002065 | NUT, COUNTER BALANCE | $0.00 | |||
| 016 | 22002044 | INTERRUPTEUR, DEPLACEMENT CUVE | WP22002044 | $70.78 | ||
| 017 | 22002061 | SCREW | 910187 | $5.08 | ||
| 018 | 22002797 | CLIP, HOSE (SADDLE HORN) | $0.00 | |||
| 019 | 22002006 | CLIP | $0.00 | |||
| 019 | 22002019 | SCREW | WP3351614 | $6.64 | ||
| 020 | 22001984 | CLAMP | WP285655 | $5.88 | ||
| 021 | 22003262 | HOSE-TUB | WP22003262 | $50.75 | ||
| 022 | 22002053 | CLAMP | WP696392 | $6.01 | ||
| 023 | 22003826 | LOWER BRACKET | $0.00 | |||
| 023 | 22004472 | BRACKET, LOWER | $0.00 | |||
| 023 | 33002973 | SCREW | WP33002973 | $6.31 | ||
| 024 | 22002320 | WASHER, STRUT | $0.00 | |||
| 025 | 22003827 | CUSHION | $0.00 | |||
| 026 | 22002057 | SCREW | WP22003937 | $5.74 | ||
| 027 | 22003936 | WASHER | WP22003936 | $5.68 | ||
| 028 | 22002315 | PULLEY | $131.19 | |||
| 029 | 22002313 | BELT & ISOLATOR KIT | 12001788, WG02A01934 | $38.73 | ||
| 030 | 22003329 | ISOLATOR, MOTOR | WP22003329 | $0.00 | ||
| 031 | 22003856 | MOTOR, VARIABLE SPEED | $0.00 | |||
| 032 | 22003686 | BOLT- MOTO | $5.85 | |||
| 033 | 22002006 | CLIP | $0.00 | |||
| 034 | 22002934 | BEARING, FRONT | WP22002934 | $0.00 | ||
| 035 | 22002935 | SPACER, BEARING | $0.00 | |||
| 036 | 22003441 | BALL BEARING | WP22003441 | $18.12 | ||
| 037 | 22002059 | SCREW | $0.00 | |||
| 037 | 22003710 | SUMP CAP W/ LABYRINTH FEATURE | $0.00 |
*The price can change whitout warning
