Brand: Maytag

Model: MET8776BS00 - 30" ELECTRIC DOUBLE OVEN FREESTANDING SELF CLEAN

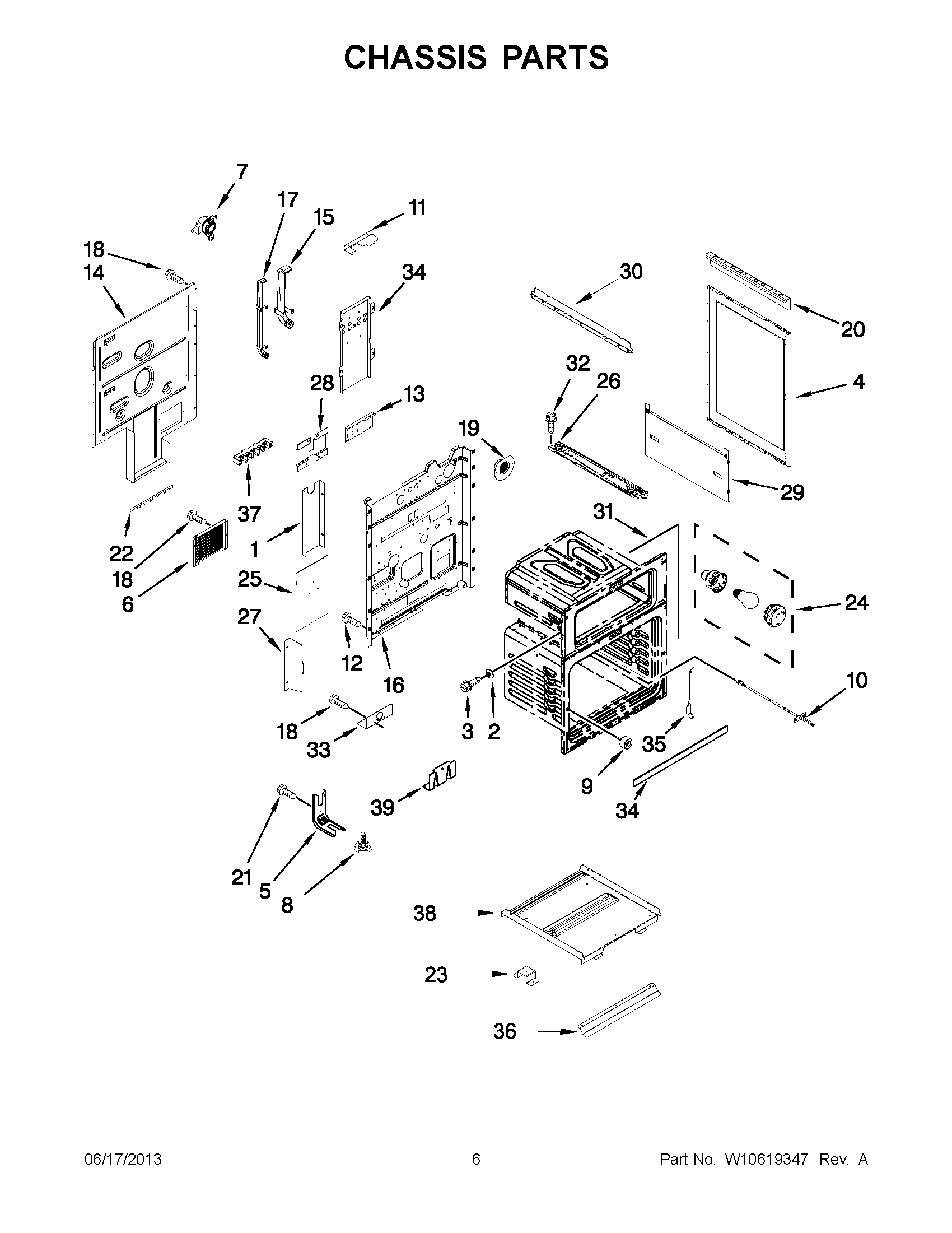

03 - CHASSIS PARTS

MET8776BS00
Plan number Part Number Description Replacement Price
1 W10332459 SHIELD-HT   $55.71
2 W10237689 SPACER,PANEL WPW10237689   $62.03
3 W10267456 SCREW WPW10267456   $5.59
4 W10260942 SIDE PANEL WPW10330375   $152.85
4 W10260943 PANEL-SIDE WPW10330376   $153.29
5 3801F656-51 BRACKET WP3801F656-51   $3.81
6 W10312612 COVER-BLCK   $95.65
7 7403P899-60 SWITCH-SAFETY WP7403P899-60   $163.42
8 7101P507-60 LEG, LEVELLING W11665456   $21.84
9 W10105790 BUMPER   $5.28
10 7430P044-60 SENSOR, OVEN WP7430P044-60   $197.92
11 W10268559 COVR-WIRE   $65.94
12 7101P426-60 SCREW WP90767   $6.30
13 W10332449 SHIELD-HT   $55.78
14 W10261386 COVER WPW10261386   $132.41
15 W10337391 TUBE-VENT   $55.83
16 W10607554 COVER-REAR W10668730   $162.61
17 W10323793 TUBE-VENT WPW10323793   $80.61
18 7101P434-60 SCREW WP7101P434-60   $6.62
19 W10322408 TUBE EXTENTION   $94.82
20 W10319087 BRKT-SUPRT   $63.17
21 7101P485-60 ANCHOR-TIP WP7101P485-60   $29.67
22 8036P012-60 SHIELD-HT   $27.58
23 W10260545 BRKT-SUPRT   $11.55
24 W10512757 SOCKET ASSY W11594027   $61.17
25 W10311987 SHIELD-HT   $66.07
26 W10471348 LOCK,RR MOUNT INTEGRATED LIGHT WPW10471348   $288.57
27 W10268560 COVR-WIRE   $55.83
28 7003P104-60 HEAT SHIELD   $27.58
29 W10253471 SHIELD WPW10253471   $117.50
30 W10357697 SPACER-PNL   $18.41
31 W10337392 UPPER DOOR GASKET   $114.46
31 W10269069 LOWER DOOR GASKET WPW10269069   $139.30
32 7101P375-60 SCREW 74003975   $11.46
33 W10190166 BRKT-SRVCE   $7.92
34 W10261388 BRKT-MNTG   $55.45
35 W10410463 COVER   $73.19
35 W10410461 COVER   $72.63
36 W10253470 RETAINER   $61.80
37 7401P039-60 BLOCK TERMINAL WPW10245259   $28.87
38 W10548601 SHIELD   $114.32
39 W10260703 SUPPORT   $58.56
NI W10271637 INSULATION WPW10271637   $0.00
NI W10308393 INSULATION WPW10308393   $137.63
NI W10322111 INSULATION WPW10322111   $99.34
NI W10204079 INSULATION WPW10204079   $84.63
NI W10204085 INSULATION W11685361   $25.90
NI W10272326 INSULATION W11684900   $25.90
*The price can change whitout warning
