Brand: Maytag
Model: DU490-C - DISHWASHER

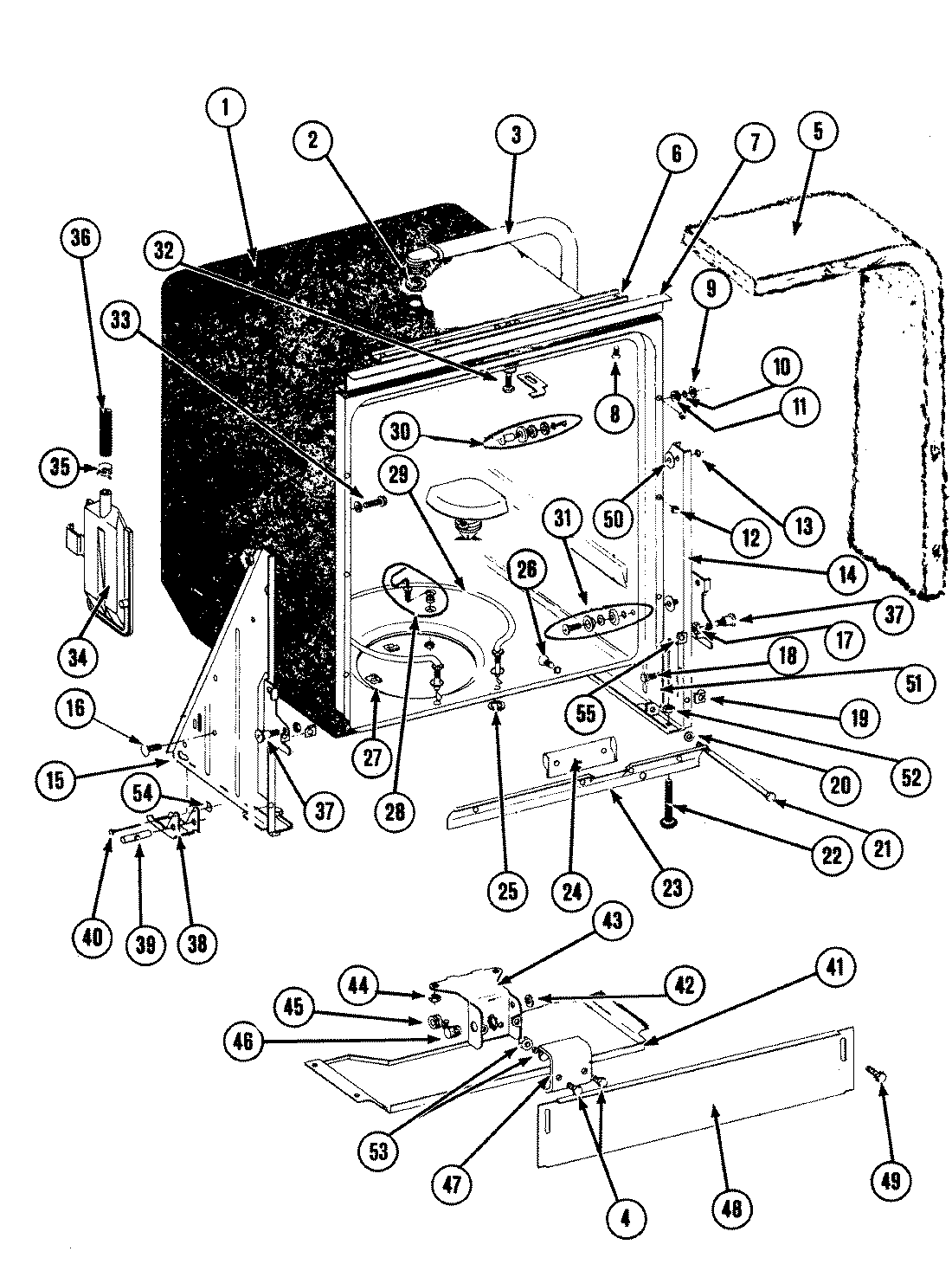

10 - TUB ASSEMBLY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 757034 | TUB | $0.00 | |||
| 2 | Y757159 | WASHER- DI | $0.37 | |||
| 3 | 757046 | HOSE, TOP SPRAY | $0.00 | |||
| 4 | Y757314 | SCREW | WPW10139210 | $5.09 | ||
| 4 | 757266 | WASHER ONLY | $0.00 | |||
| 5 | Y757097 | INSULATION | $0.00 | |||
| 6 | 757315 | CHANNEL, TOP FLANGE | $0.00 | |||
| 7 | Y757316 | FLANGE TOP | $0.00 | |||
| 8 | 757317 | SCREW AND WASHER | $0.00 | |||
| 9 | Y757203 | NUT | Y052721 | $21.07 | ||
| 10 | Y757319 | LOCK WASHER | $0.00 | |||
| 11 | Y757201 | CUSHION WASHER | $0.00 | |||
| 12 | Y757321 | HOLE PLUG | $0.00 | |||
| 13 | Y757319 | LOCK WASHER | $0.00 | |||
| 14 | 757323 | SUPPORT, TUB R.H. | $0.00 | |||
| 15 | 757324 | SUPP0RT, TUB L.H. | $0.00 | |||
| 16 | Y757325 | FASTENER | $0.00 | |||
| 17 | Y757326 | NUT | WP3400029 | $6.06 | ||
| 18 | Y757229 | SCREW | WP4312464 | $5.09 | ||
| 19 | Y757327 | FASTENER | $0.00 | |||
| 20 | Y757328 | WASHER | $0.00 | |||
| 21 | Y757329 | SCREW FOR ADJUSTABLE LEGS | $0.00 | |||
| 22 | Y757330 | ADJUSTABLE LEG | W10176519 | $0.00 | ||
| 23 | 757332 | DRIP FLANGE CANADIAN | $0.00 | |||
| 23 | 757331 | DRIP FLANGE | $0.00 | |||
| 24 | Y757333 | ASSEMBLY SCREW,WASHER & SHIELD | $0.00 | |||
| 25 | Y757334 | WASHER | $0.00 | |||
| 26 | 757335 | SCREW | $0.00 | |||
| 27 | 757308 | FASTENER | $0.00 | |||
| 28 | 757337 | ASSEMBLY, HEATER HOOK | $0.00 | |||
| 29 | Y757010 | HEAT ELEMENT | $0.00 | |||
| 30 | Y757014 | ASSY.SHAFT,WASHER & SEAL | $0.00 | |||
| 31 | Y757338 | ASSEMBLY BOLT & WASHER | $0.00 | |||
| 32 | Y757339 | SCREW | WP3400094 | $5.42 | ||
| 33 | 757340 | SCREW WASHER | $0.00 | |||
| 34 | Y757341 | VENT COVER | $0.00 | |||
| 35 | Y757247 | CLAMP | WP596669 | $6.27 | ||
| 36 | Y757077 | INJECTOR HOSE | $0.00 | |||
| 37 | Y757343 | HINGE PIN | $0.00 | |||
| 38 | Y757344 | SHOE FOR ADJUSTABLE LEG | $0.00 | |||
| 39 | Y757345 | NUT | $0.00 | |||
| 40 | Y757346 | PIN | $0.00 | |||
| 41 | Y757348 | FRAME BASE | $0.00 | |||
| 42 | 757349 | INSULATING BUSHING | $0.00 | |||
| 43 | 757350 | COMPARTMENT, TERMINAL | $0.00 | |||
| 44 | 757351 | JAM NUT FOR ELEMENT | $0.00 | |||
| 46 | 757353 | CABLE CONNECTOR | $0.00 | |||
| 47 | Y757354 | COVER FOR TERMINAL | $0.00 | |||
| 48 | Y757095 | TOE PANEL | $0.00 | |||
| 49 | Y757223 | SCREW | W11233072 | $12.16 | ||
| 50 | 757397 | WASHER | $0.00 | |||
| 51 | 757400 | COVER, ACCESS | $0.00 | |||
| 52 | Y757399 | NUT | WP62739 | $5.68 | ||
| 53 | Y757401 | SCREW | W10850756 | $6.65 | ||
| 54 | Y757396 | FASTENER | $0.00 | |||
| 55 | Y757398 | FASTENER | $0.00 |
*The price can change whitout warning
