Brand: Maytag
Model: LDE9304ADE - ELECTRIC DRYER

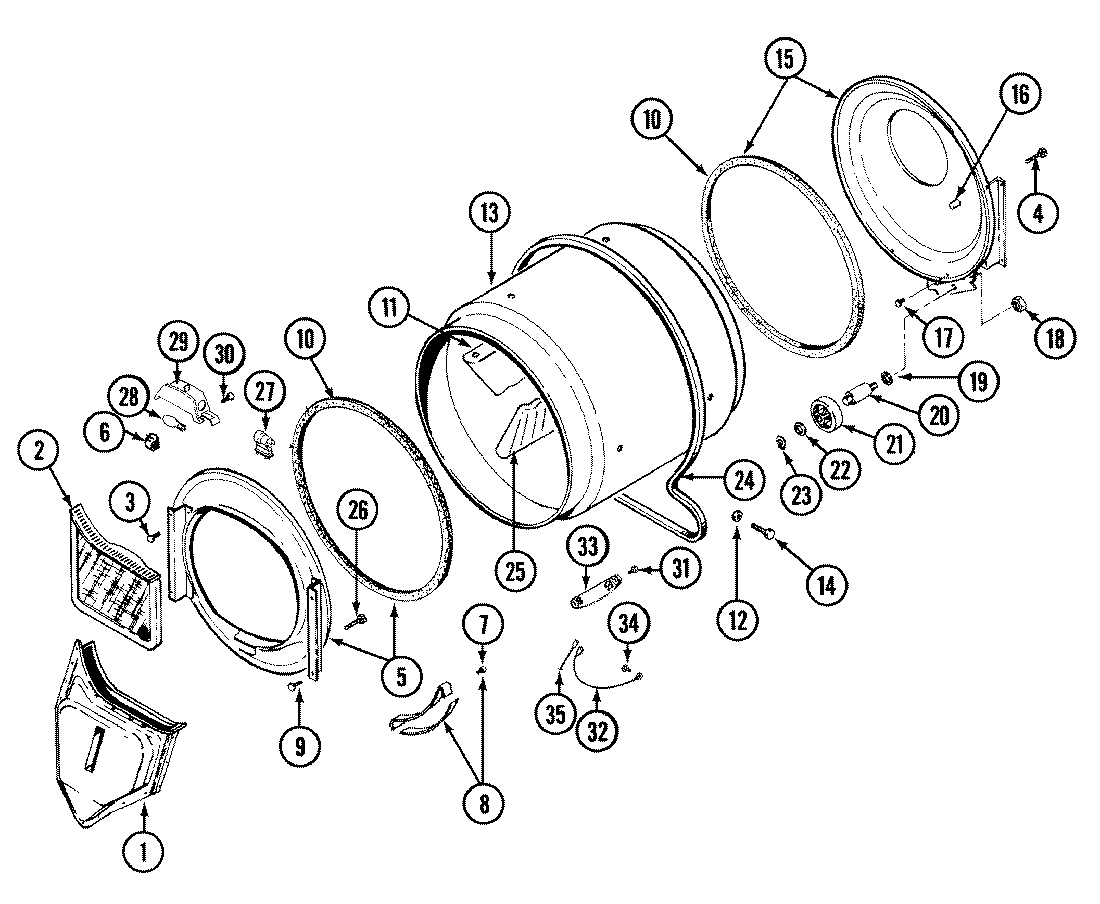

08 - TUMBLER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33001016 | DUCT ASSY., OUTLET | $0.00 | |||
| 2 | 33001171 | FILTER, LINT | WP33002970 | $0.00 | ||
| 3 | 313764 | SCREW | $0.00 | |||
| 4 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 5 | 33001423 | FRONT ASSY., TUMBLER | $0.00 | |||
| 6 | Y310376 | CLIP, WIRE HARNESS | $0.00 | |||
| 7 | 210720 | RIVET | WP210720 | $12.81 | ||
| 8 | 306508 | GLIDE KIT - TUMBLER | $17.62 | |||
| 9 | Y310632 | SCREW | $6.43 | |||
| 10 | 314820 | FELT | WP314820, WG02L06813 | $27.68 | ||
| 11 | 33001012 | BAFFLE (SHORT) | $0.00 | |||
| 12 | 314158 | WASHER | $0.00 | |||
| 13 | 33001108 | DRYER TUMBLER, W/O BAFFLES | $0.00 | |||
| 14 | Y310759 | SCREW | WPY310759 | $5.91 | ||
| 15 | 33001178 | BACK, TUMBLER (W/SEAL) | $0.00 | |||
| 16 | 313915 | COVER, THREAD | 65004704 | $0.00 | ||
| 17 | Y310632 | SCREW | $6.43 | |||
| 18 | 312538 | NUT,HEXAGONE | WP33001443 | $5.97 | ||
| 19 | Y313347 | WASHER | WP312535 | $8.88 | ||
| 20 | Y312948 | ROLLER SHAFT | WP6-3129480 | $8.42 | ||
| 21 | Y303373 | MAYTAG DRUM ROLLER | 12001541 | $22.12 | ||
| 22 | 312535 | WASHER | WP312535 | $8.88 | ||
| 23 | 410233 | RING-RETAINER | WP9703438 | $3.20 | ||
| 24 | Y312959 | DRYER BELT 100" | WPY312959 | $25.54 | ||
| 25 | 33001004 | BAFFLE TALL | $112.31 | |||
| 26 | Y314110 | SCREW | WP33002917 | $5.63 | ||
| 27 | 307097 | HOLDER, LIGHT | $0.00 | |||
| 28 | Y307100 | LAMP 125V 7W (CANDELABRA) | W10857122 | $9.73 | ||
| 29 | 314955 | ENCLOSURE, LIGHT | $0.00 | |||
| 30 | 214872 | PALNUT, END CAP | $0.00 | |||
| 31 | Y251119 | SCREW | WP3177991 | $6.32 | ||
| 32 | Y303711 | SENSOR GROUND WIRE | $0.00 | |||
| 33 | Y303389 | SENSOR ASSEMBLY (W/SCREWS) | $0.00 | |||
| 34 | 211294 | SCREW | WP90767 | $6.30 | ||
| 35 | Y312658 | RECEPTACLE, SENSOR GROUND WIRE | $0.00 |
*The price can change whitout warning
