Brand: Maytag
Model: MDB4709AWB1 - DISHWASHER

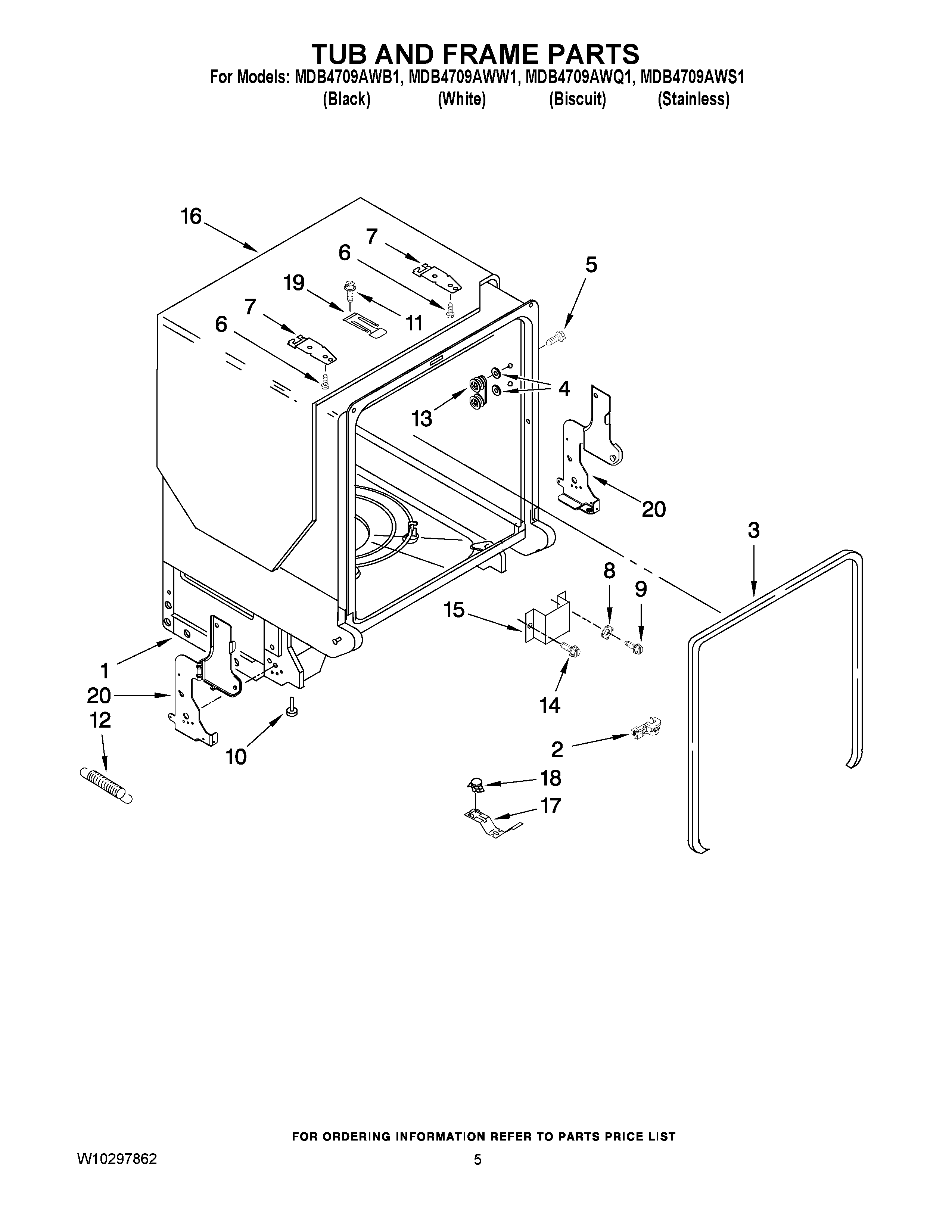

05 - TUB AND FRAME PARTS
- 01 - DOOR AND PANEL PARTS
- 02 - CONTROL PANEL PARTS
- 02 - REFRIGERATOR LINER PARTS
- 04 - FILL, DRAIN AND OVERFILL PARTS
- 04 - FILL, DRAIN AND OVERFILL PARTS
- 05 - MACHINE BASE PARTS
- 05 - TUB AND FRAME PARTS
- 06 - PUMP AND MOTOR PARTS
- 07 - UPPER WASH AND RINSE PARTS
- 09 - DISPENSER FRONT
- 10 - LOWER RACK PARTS
- 11 - LOWER WASHARM PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10254860 | TUB-DISHWASHER | W10413848 | $346.15 | ||
| 2 | 8573061 | RELIEF-STR | W11384788 | $17.63 | ||
| 3 | 8268888 | GASKET | W10542314 | $84.54 | ||
| 4 | 9743002 | GASKET | WP9743002 | $7.97 | ||
| 5 | 8533836 | SCREW | W10817436 | $6.85 | ||
| 6 | 3367670 | SCREW | WP308685 | $6.11 | ||
| 7 | 8269145 | BRACKET-MTG | WP8269145 | $14.76 | ||
| 8 | 3378128 | WASHER | WP3378128 | $5.68 | ||
| 9 | 3400014 | SCREW | WP3400014 | $5.63 | ||
| 10 | 8524584 | LEVELLER LEG | 8193716 | $67.41 | ||
| 11 | W10165274 | SCREW | $11.46 | |||
| 12 | 8524473 | SPRING | WPW10337934 | $28.83 | ||
| 13 | 8270016 | WHEEL-TUB | WP8270016 | $66.78 | ||
| 14 | 3400892 | SCREW | WP3400892 | $6.50 | ||
| 15 | 8268991 | COVR-BOX | WP8268991 | $26.99 | ||
| 16 | 8573240 | SHIELD | W11086533 | $32.04 | ||
| 17 | 3378595 | BRCKT-STAT | W10539489 | $14.20 | ||
| 18 | 661566 | THERMOSTAT | WP661566 | $36.05 | ||
| 19 | 8580309 | STRIKE PLATE-VOYAGER | WP8580309 | $76.45 | ||
| 20 | W10185368 | HINGE BRACKET (INCLUDES ITEM 14) (LEFT) | $0.00 | |||
| 20 | W10185369 | HINGE BRACKET (INCLUDES ITEM 14) (RIGHT) | $0.00 |
*The price can change whitout warning
