Brand: Maytag
Model: HA6000 - WASHER

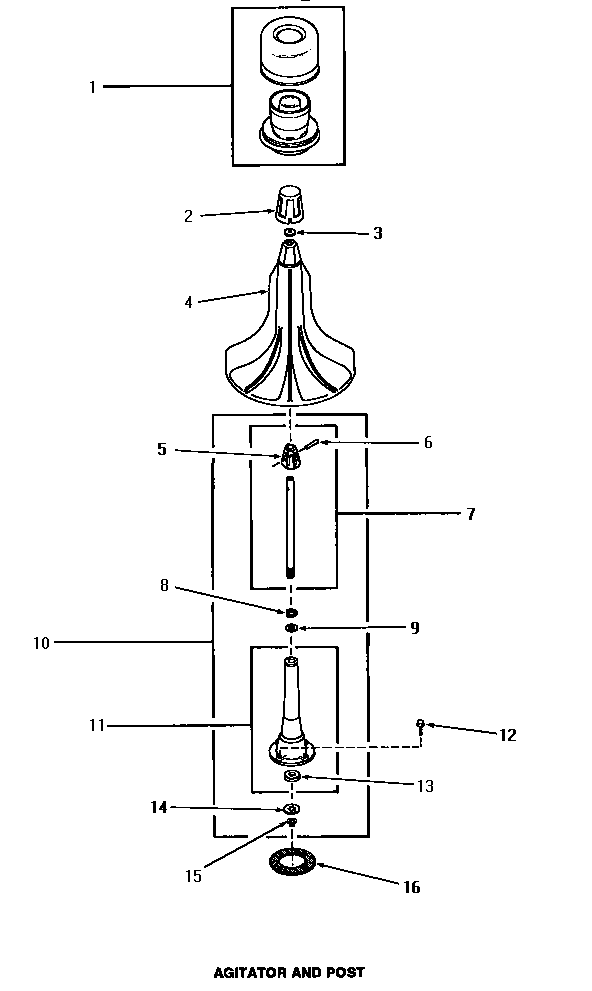

03 - AGITATOR & POST
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - COVER SHEET
- 01 - SECTION
- 02 - 30123 & 30946 TRANSMISSION ASSEMBLIES
- 02 - CONTROL PANEL PARTS
- 03 - AGITATOR & POST
- 03 - LINER
- 04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME
- 04 - CABINET
- 04 - FILL, DRAIN AND OVERFILL PARTS
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 07 - INTERNAL MICROWAVE PARTS
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 10 - OPTIONAL PARTS (NOT INCLUDED)
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 21 - SWITCH & BRACKET ASSY
- 22 - TRANSMISSION ASSY & BALANCE RING
- INDUCTION MODULE PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 27707 | ASSY,DISPENSER-FABRIC | $0.00 | |||
| 2 | 27138 | ASSY,AGITATOR CAP | $0.00 | |||
| 3 | 27189 | WASHER,AGITATOR CAP | $0.00 | |||
| 4 | 27120 | ASSY,AGITATOR | $0.00 | |||
| 5 | 27174 | DRIVE BLOCK | $0.00 | |||
| 6 | 20243 | PIN,TAPER | $0.00 | |||
| 7 | 28091 | ASSY,AGITATOR SHAFT&DR | $0.00 | |||
| 8 | 20057 | WASHER, 21/32 ID X 1.156 OD | $0.00 | |||
| 9 | 04704 | WASHER,.630IDX1.125ODX | $0.00 | |||
| 10 | 28934 | AGITATOR POST ASSEMBLY | $0.00 | |||
| 11 | 28933 | AGITATOR POST | $0.00 | |||
| 12 | 27202 | SCREW | WPW10116787 | $20.38 | ||
| 13 | 10429 | WASHER,THRUST | $0.00 | |||
| 14 | 27164 | WASHER,SPLINE | $0.00 | |||
| 15 | 27197 | RING,RETAINING | $0.00 | |||
| 16 | 27020 | GASKET,CENTER COLUMN | $0.00 | |||
| 16 | 28434P | LOCTITE | $0.00 |
*The price can change whitout warning
