Brand: Maytag
Model: MXR65PNATS - COMMERCIAL WASHER

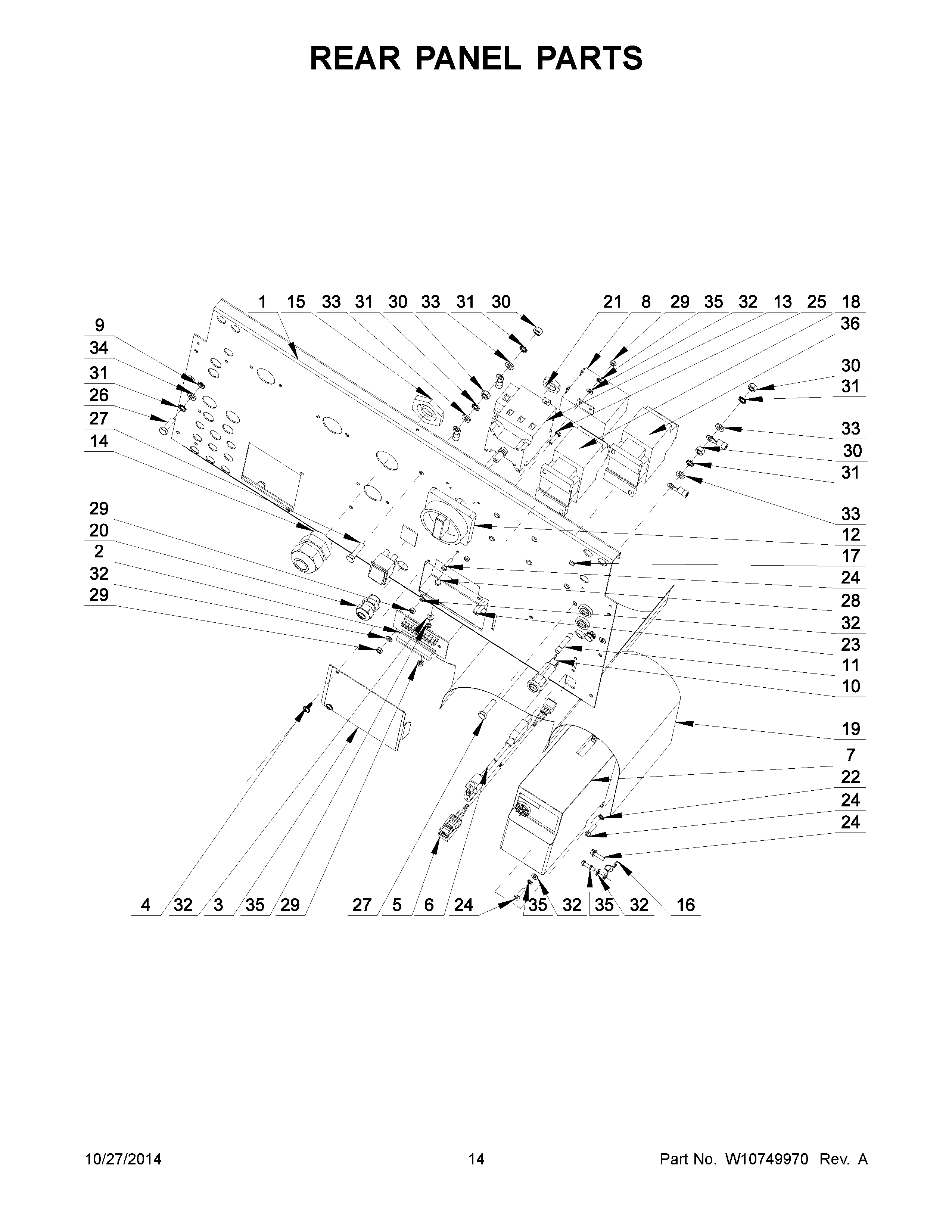

08 - REAR PANEL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10725520 | PANEL | $202.47 | |||
| 2 | W10286355 | SIGNAL BOARD MC5 | WPW10286355 | $0.00 | ||
| 2A | W10665044 | CABLE, PUMP RELAY BOARD TO LED TERMINAL | $0.00 | |||
| 3 | W10725522 | REAR PANEL, LID | $0.00 | |||
| 4 | W10711800 | SCREW 4X11 | $0.00 | |||
| 5 | W10713154 | CABLE, RS485 CONNECTORS | $0.00 | |||
| 6 | W10713157 | CABLE, USB - REAR PANEL CONNECTION | $0.00 | |||
| 7 | W10415735 | FREQUENCY INVERTER | WPW10415735 | $0.00 | ||
| 7A | W10725529 | HARNS-WIRE | $64.12 | |||
| 8 | W10713112 | FILTER, FREQUENCY | $0.00 | |||
| 9 | 23001575 | NUT, INSERT M6 | $0.00 | |||
| 10 | 23001462 | FUSE HOLDER (5X20MM) | $0.00 | |||
| 10A | 23002210 | FUSE HOLDER (6X32MM) | $0.00 | |||
| 11 | 23004315 | FUSE | W11199418 | $2.97 | ||
| 11A | 23003385 | FUSE (250V 1A) | WP22001555 | $26.87 | ||
| 12 | 23003497 | MAIN SWITCH KNOB | $0.00 | |||
| 13 | 23003500 | MAIN SWITCH 25A | $0.00 | |||
| 14 | 23004494 | BUSHING | $18.90 | |||
| 15 | 23004495 | LARGE STRAIN RELIEF NUT | $0.00 | |||
| 16 | W10713152 | CABLE CLAMP | $0.00 | |||
| 17 | 23002362 | RIVET W/CRANK (4X7) | $0.00 | |||
| 18 | 23003750 | CONTACTOR, FREQUENCY INVERTER | WP23003750 | $0.00 | ||
| 19 | W10725557 | COVER | $44.07 | |||
| 20 | 23004396 | SMALL STRAIN RELIEF M16 | $0.00 | |||
| 21 | 23004398 | SMALL STRAIN RELIEF NUT M16 | $0.00 | |||
| 22 | 23002950 | WASHER, LOCK M4 | $0.00 | |||
| 23 | 23002473 | FOAM CONNECTOR GASKET | $0.00 | |||
| 24 | 23002398 | BOLT | $10.33 | |||
| 25 | 23004095 | BOLT M4X16 | $0.00 | |||
| 26 | 23002462 | BOLT M6X20 | $0.00 | |||
| 27 | 23002806 | SCREW | $34.10 | |||
| 28 | 23001682 | BOLT M4X8 | $0.00 | |||
| 29 | 23003666 | NUT M4 | 23001014 | $9.35 | ||
| 30 | 23002651 | NUT | 23001312 | $15.36 | ||
| 31 | 23002425 | WASHER, LOCK M6 | $0.00 | |||
| 32 | 23002438 | WASHER M4.3 | $0.00 | |||
| 33 | 23003767 | WASHER M6.4 | $0.00 | |||
| 34 | 23002424 | WASHER | WP25100 | $5.09 | ||
| 35 | 23002400 | WASHER M4 | 23002125 | $0.00 | ||
| 36 | W10286352 | TRANSFORMER | $0.00 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10725561 | WIRING, MAIN | $0.00 | |||
| NI | W10713166 | KIT, LIQUID SOAP SUPPLY CONNECTION | $0.00 |
*The price can change whitout warning
