Brand: Maytag
Model: MHWE300VW11 - WASHER

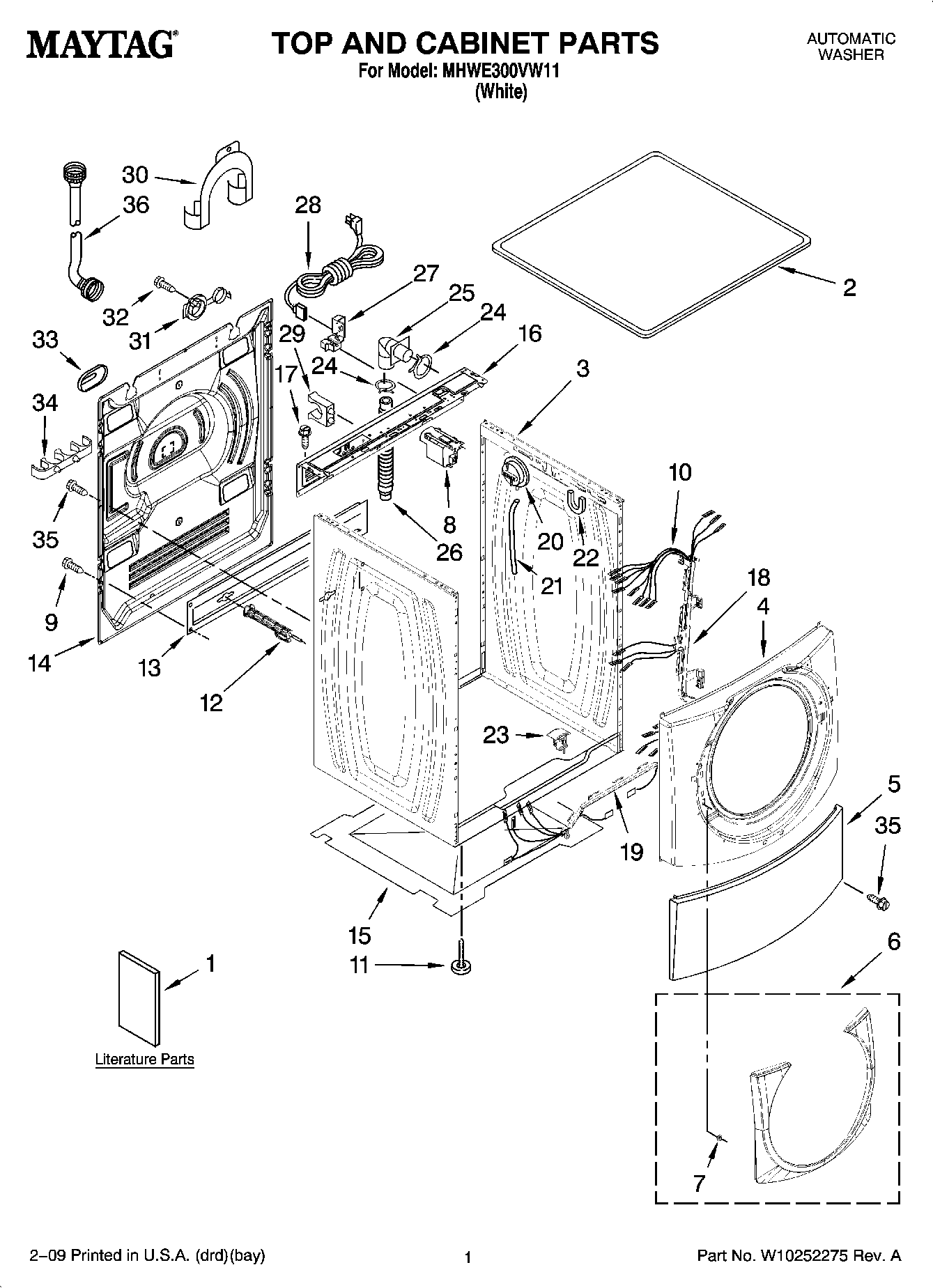

01 - TOP AND CABINET PARTS
- 01 - TOP AND CABINET PARTS
- 01 - TOP AND CONSOLE PARTS
- 02 - CABINET-REAR
- 02 - DOOR AND LATCH PARTS
- 03 - CONTROL PANEL PARTS
- 04 - CABINET
- 05 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10248061 | Use & Care Guide | $0.00 | |||
| 1 | W10250503 | Tech Sheet | W10217131 | $0.00 | ||
| 1 | 8183017 | Quick Start Guide | $0.00 | |||
| 1 | W10248060 | Energy Guide | $0.00 | |||
| 2 | 8181799 | Top | $0.00 | |||
| 3 | W10250656 | CABINET | $0.00 | |||
| 4 | W10248114 | Panel, Front | $0.00 | |||
| 5 | 8181643 | Toe Panel | $0.00 | |||
| 6 | W10248115 | Ring, Trim | $0.00 | |||
| 7 | 8183210 | CLIP | WP8183210 | $6.06 | ||
| 8 | 8183019 | RFI FILTER SPEC | WPW10367632 | $99.15 | ||
| 9 | W10157885 | Screw, 4.2 x 14 | $0.00 | |||
| 10 | 8183189 | HARNS-WIRE | WP8183189 | $228.94 | ||
| 11 | 8181636 | FEET-LEVELING | WP8181636 | $10.69 | ||
| 12 | 8182797 | BLOCKING KIT (BOLT-DUET) | W10289554A | $61.87 | ||
| 12 | 8182798 | BLOCKING KIT (BOLT-DUET) | W10289554A | $61.87 | ||
| 13 | 8182661 | BRACE | WPW10003040 | $81.26 | ||
| 14 | W10242507 | Panel, Rear | $0.00 | |||
| 15 | 8181635 | Pan, Bottom | $0.00 | |||
| 16 | W10250578 | Brace, Rear | $0.00 | |||
| 17 | 8181756 | SCREW | WP488729 | $6.39 | ||
| 18 | W10121609 | Channel, Harness (Side) | $0.00 | |||
| 19 | W10121610 | Channel, Harness (Bottom) | $0.00 | |||
| 20 | 8181695 | SWITCH-WL | WPW10514214 | $151.45 | ||
| 21 | 8181739 | HOSE | WPW10004260 | $7.21 | ||
| 22 | 8181763 | BRACKET | WP8181763 | $67.17 | ||
| 23 | W10189678 | SWITCH | WPW10085220 | $27.88 | ||
| 24 | 8181752 | CLAMP | WP3367052 | $0.00 | ||
| 25 | 8181738 | CONNECTOR | WP8181738 | $70.55 | ||
| 26 | 8181737 | HOSE | WP8181737 | $66.88 | ||
| 27 | 8181690 | RELIEF-STR | 8182635 | $15.33 | ||
| 28 | 8183009 | POWER CORD | WP8183009 | $124.00 | ||
| 29 | 8182702 | Clip, Outer Hose Holder | $0.00 | |||
| 30 | 8181768 | RETAINER | WPW10280024 | $61.67 | ||
| 31 | 8182699 | GROMMET | W11116978 | $19.90 | ||
| 32 | 8182201 | SCREW | $11.46 | |||
| 33 | 8182700 | COVER | WP8540268 | $7.03 | ||
| 34 | 8182701 | CLIP | $73.08 | |||
| 35 | 8181828 | SCREW | WP488729 | $6.39 | ||
| 36 | 8182795 | FILL HOSE | WP89503 | $18.19 | ||
| 36 | 8182792 | FILL HOSE | WP89503 | $18.19 |
*The price can change whitout warning
