Brand: Maytag
Model: RTD2100DAM - REFRIGERATOR

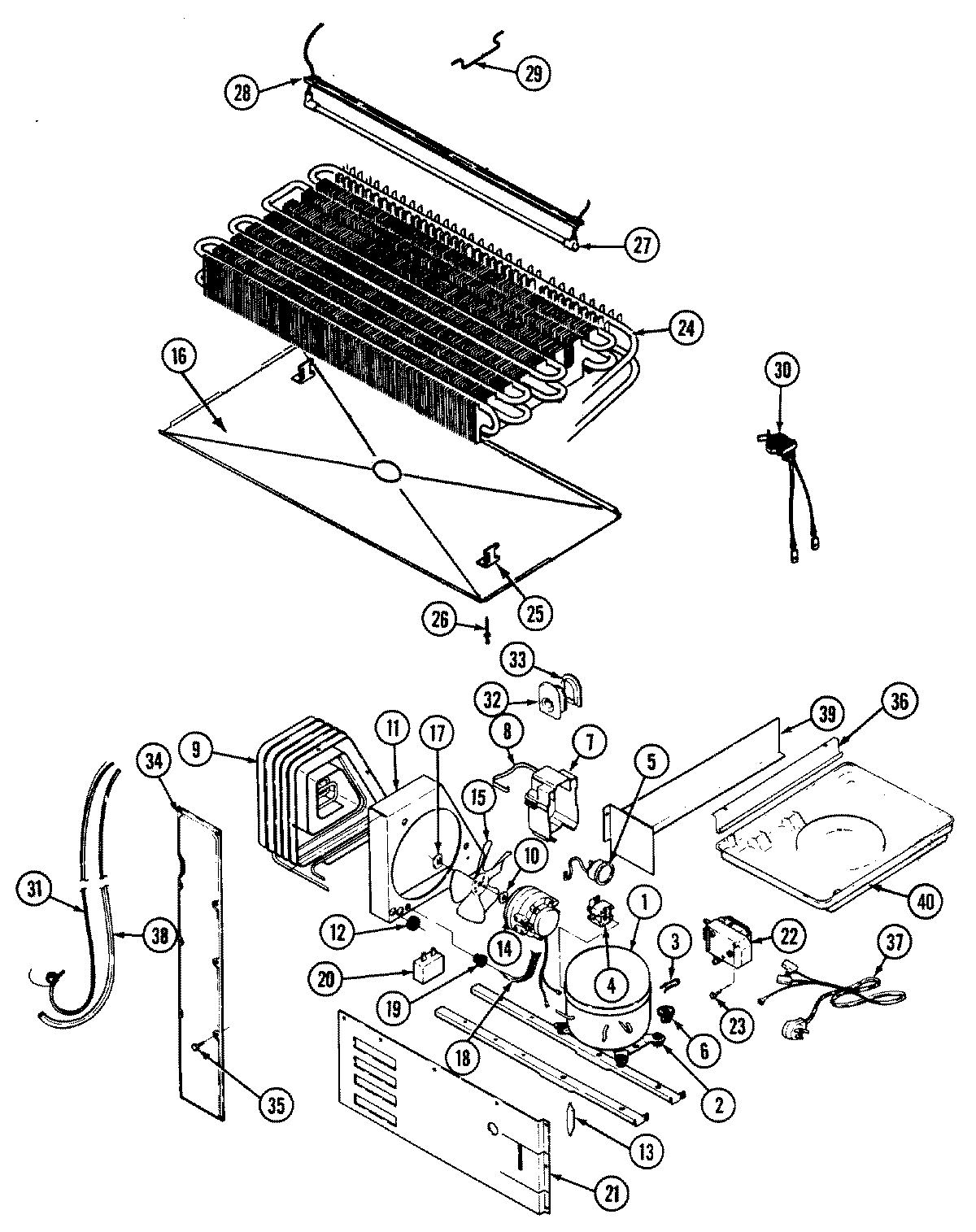

07 - UNIT COMPARTMENT & SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | RA1032 | COMPRESSOR | W10439652 | $376.24 | ||
| 2 | 17245-4 | GROMMET, COMPRESSOR | $0.00 | |||
| 3 | 52778-2 | CLIP | $0.00 | |||
| 4 | 68857-2 | START-DEV | WP10097202 | $89.31 | ||
| 5 | 69105-2 | OVERLOAD | 4388953 | $0.00 | ||
| 6 | 52656-2 | PLUG, COMPRESSOR | $0.00 | |||
| 7 | 69754-1 | COVER, TERMINAL | $0.00 | |||
| 8 | 59596-1 | CLIP, TERMINAL COVER | $0.00 | |||
| 9 | 60408-2 | U-NUT, CONDENSER | $0.00 | |||
| 9 | 414001-1 | SCREW | $0.00 | |||
| 9 | 60434-3 | CONDENSER | $0.00 | |||
| 10 | 69063-1 | WASHER, FAN BLADE | $0.00 | |||
| 11 | 66228-1 | SHROUD, CONDENSER | $0.00 | |||
| 12 | 53351-1 | GROMMET, CONDENSER TUBING | 53351001 | $0.00 | ||
| 13 | 13900 | UV DRIER-TUBE | WPW10143759 | $25.87 | ||
| 14 | 61001016 | CONDENSER FAN MOTOR 115V 2W | 833697 | $76.09 | ||
| 14 | 68445-1 | CONDENSER FAN MOTOR 115V 2W | 833697 | $76.09 | ||
| 14 | 65275-33 | SCREW | $0.00 | |||
| 15 | 69958-1 | BLADE, CONDENSER FAN | FB718, WP12587601 | Call to order | ||
| 16 | 69118-2 | TRAY, EVAPORATOR | $0.00 | |||
| 17 | 19914 | NUT | WP486692 | $5.98 | ||
| 18 | 69181-1 | BRACKET, FAN MOTOR | $0.00 | |||
| 19 | 56933-1 | GROMMET- B | WP61004743 | $6.82 | ||
| 20 | 65889-4 | CAPACITOR | WP65889-4 | $69.83 | ||
| 20 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 21 | 9986-45 | SCREW | WP488729 | $6.39 | ||
| 21 | 69138-2 | COVER, UNIT COMPARTMENT | $0.00 | |||
| 22 | 68233-2 | DEFROST TIMER | WP68233-2 | $161.85 | ||
| 23 | 405007-1 | SCREW | $0.00 | |||
| 24 | 69822-7 | EVAPORATOR | $0.00 | |||
| 25 | 60108-2 | BRACKET, EVAPORATOR | $0.00 | |||
| 26 | 26397-9 | RIVET | WP210720 | $12.81 | ||
| 27 | 60106-35 | GLASS HEATER 115V 450W 1 TUBE | WP60106-35 | $115.30 | ||
| 28 | 60109-5 | SHIELD, DEFROST HEATER | $0.00 | |||
| 29 | 68935-1 | CLIP | $0.00 | |||
| 30 | 52085-33 | DEFROST THERMOSTAT SPST 47 | WP52085-28 | $95.03 | ||
| 31 | 65013-22 | HEAT EXCHANGER | $0.00 | |||
| 32 | 60068-1 | GROMMET, TUBE ENTRY | $0.00 | |||
| 33 | 60069-1 | RETAINER, ENTRY GROMMET | $0.00 | |||
| 34 | 60110-2 | COVER, WIRE HARNESS | $0.00 | |||
| 34 | 60177-4 | RETAINER, WIRE HARNESS | $0.00 | |||
| 34 | 70169-2 | WIRE HARNESS, MAIN | $0.00 | |||
| 34 | 61001564 | WIRE HARNESS, MAIN | $0.00 | |||
| 35 | 65275-50 | SCREW | WP489069 | $6.32 | ||
| 36 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 36 | 60555-2 | RAIL, DRAIN PAN (LT) | $0.00 | |||
| 36 | 60555-1 | RAIL, DRAIN PAN (RT) | $0.00 | |||
| 37 | 52890-3 | CORD, POWER | $0.00 | |||
| 38 | 61001042 | COVER, HEAT EXCHANGER | $0.00 | |||
| 39 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 39 | 66493-1 | BAFFLE, AIR DIVIDER | $0.00 | |||
| 40 | 68236-1 | DRAIN PAN | WP68236-1 | $150.51 | ||
| NI | 61001068 | MANUAL, USE & CARE | $0.00 | |||
| NI | 16000327 | GUIDE, QUICK REF. - MAYTAG | $0.00 |
*The price can change whitout warning
