Brand: Maytag
Model: ESUF16C-C (BOM: P6034581W-C) - FREEZER

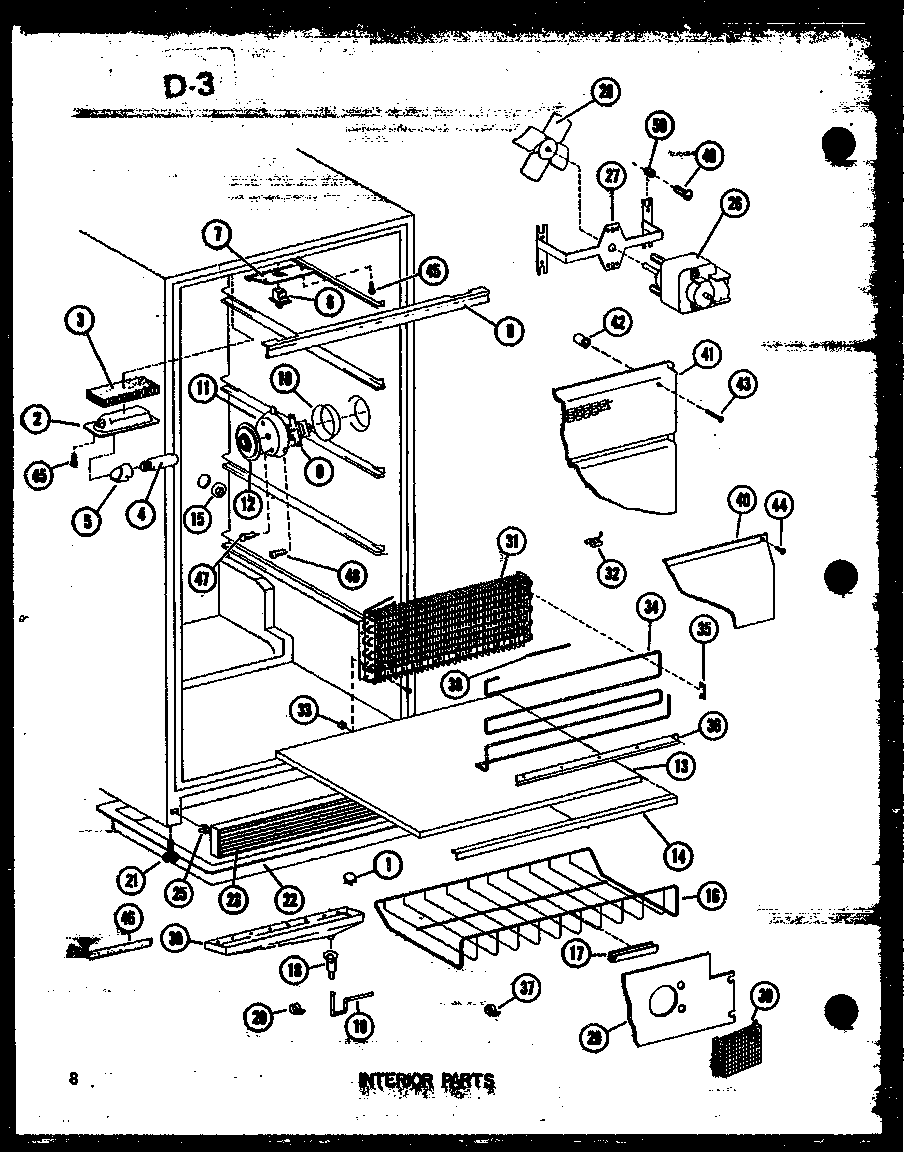

04 - INTERIOR PARTS
- 01 - COMPRESSOR PARTS
- 02 - DOOR PARTS
- 04 - INTERIOR PARTS
- 08 - WIRING INFORMATION
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | A3113701 | DRAIN SCREEN | $0.00 | |||
| 2 | C8758501 | HOUSING-LIGHT | $0.00 | |||
| 3 | B5766901 | INSULATION | $0.00 | |||
| 4 | A0282803 | BULB, LIGHT (40 WATT) | 8009, 40A15F, WG03F02051 | $0.00 | ||
| 5 | C8708801 | SOCKET-LIGHT | $0.00 | |||
| 6 | C3680306 | SWITCH | $0.00 | |||
| 7 | D7286601 | COVER-LIGHT SWITCH | $0.00 | |||
| 8 | D7288101 | SHIELD-LIGHT | $0.00 | |||
| 9 | C8764901 | TEMP CONTROL | $0.00 | |||
| 10 | C8764801 | SHIELD-CONTROL | $0.00 | |||
| 11 | C8762901 | COVER-CONTROL | $0.00 | |||
| 12 | C3577903 | KNOB-CONTROL | $0.00 | |||
| 13 | D7335706 | SHELF | $0.00 | |||
| 13 | D7335701 | SHELF | $0.00 | |||
| 14 | B5688804 | TRIM-SHELF | $0.00 | |||
| 15 | B5766401 | PLUG BUTTON | $0.00 | |||
| 16 | D7258601 | BASKET | $0.00 | |||
| 17 | B0571806 | HANDLE BASKET | $0.00 | |||
| 18 | B5758502 | DRAIN TUBE | $0.00 | |||
| 19 | B5760801 | TUBE CLAMP | $0.00 | |||
| 20 | M0102303 | CLAMP | $0.00 | |||
| 21 | M0266510 | GLIDER BOLT | $0.00 | |||
| 22 | D3920001 | DRAIN PAN | $0.00 | |||
| 23 | D7263302 | GRILLE TOE | $0.00 | |||
| 25 | M0117301 | CLIP, GRILLE | $0.00 | |||
| 26 | D7289701 | MOTOR KIT | $0.00 | |||
| 27 | C8722501 | MOTOR MOUNT | $0.00 | |||
| 28 | B5739301 | FAN BLADE | $0.00 | |||
| 29 | D7279501 | PLATE-AIR INLET | $0.00 | |||
| 30 | C8758901 | GRILL-AIR INLET | $0.00 | |||
| 31 | D7289901 | EVAPORATOR | $0.00 | |||
| 32 | C8765001 | TERMINATOR | $0.00 | |||
| 33 | M0580003 | GROMMET | $0.00 | |||
| 34 | D7291601 | HEATER-EVAP | $0.00 | |||
| 35 | M0110301 | CLIP | $0.00 | |||
| 36 | B5760101 | CLAMP, EVAPORATOR HEATER | $0.00 | |||
| 37 | A3253802 | TUBE CLAMP | $0.00 | |||
| 38 | A3030903 | CONTROL WELL | $0.00 | |||
| 39 | D7289801 | DRIP TRAY | $0.00 | |||
| 40 | D7346001 | COVER EVAP | $0.00 | |||
| 41 | D7280401 | COVER-AIR DUCT | $0.00 | |||
| 42 | A3268101 | SPACER | $0.00 | |||
| 43 | M0230923 | SCREW | $0.00 | |||
| 44 | M0230917 | SCREW | 67006425 | $6.50 | ||
| 45 | M0236717 | SCREW | WP489464 | $5.69 | ||
| 46 | B5758701 | SEAL-DRIP TRAY | $0.00 | |||
| 47 | M0230926 | SCREW | $0.00 | |||
| 48 | M0204716 | SCREW | $0.00 | |||
| 49 | M0200316 | SCREW | WPW10001160 | $7.37 | ||
| 50 | M0292002 | NUT-WELL | $0.00 |
