Brand: Maytag
Model: ASD2626HES - LAUNDRY, RESIDENTIAL, WASHER
27 - ICE MAKER
- 01 - CABINET BACK
- 02 - CABINET BACK SERIES 50+
- 02 - DOOR
- 02 - DOOR
- 02 - EXTERNAL OVEN
- 03 - REFRIGERATOR SHELF PARTS
- 04 - BASE AND PEDESTAL UNIT
- 04 - COMPRESSOR SERIES 50+
- 04 - SYSTEM
- 05 - FREEZER LINER
- 05 - OVEN
- 06 - CABINET AND STIRRER PARTS
- 06 - DRAWER PARTS
- 06 - MOTOR AND ICE CONTAINER
- 06 - TOP VENTING PARTS, OPTIONAL PARTS
- 07 - DELI AND REF SHELF
- 08 - DELI AND REF SHELF SERIES 50+
- 08 - DISPENSER FRONT
- 08 - HOSES/BACK FL PREVENTER & VLV BRKT
- 10 - ICE MAKER
- 11 - EVAP FAN ASSY AND CONTROLS SERIES 50+
- 11 - UNIT PARTS
- 12 - EVAP FAN ASSY AND LIGHTS
- 13 - EVAPORATOR ASSY AND ROLLERS
- 16 - FREEZER DOOR SERIES 50+
- 18 - FZ DOOR AND FACADE SERIES 50+
- 18 - TUB
- 19 - FZ SHELF
- 21 - HANDLES AND TRIM
- 23 - HINGES
- 25 - ICE BUCKET ASSY
- 27 - ICE MAKER
- 33 - SUPPLEMENTAL INFORMATION
- 35 - WIRING INFORMATION
- 36 - WIRING INFORMATION SERIES 50+
- BULKHEAD PARTS

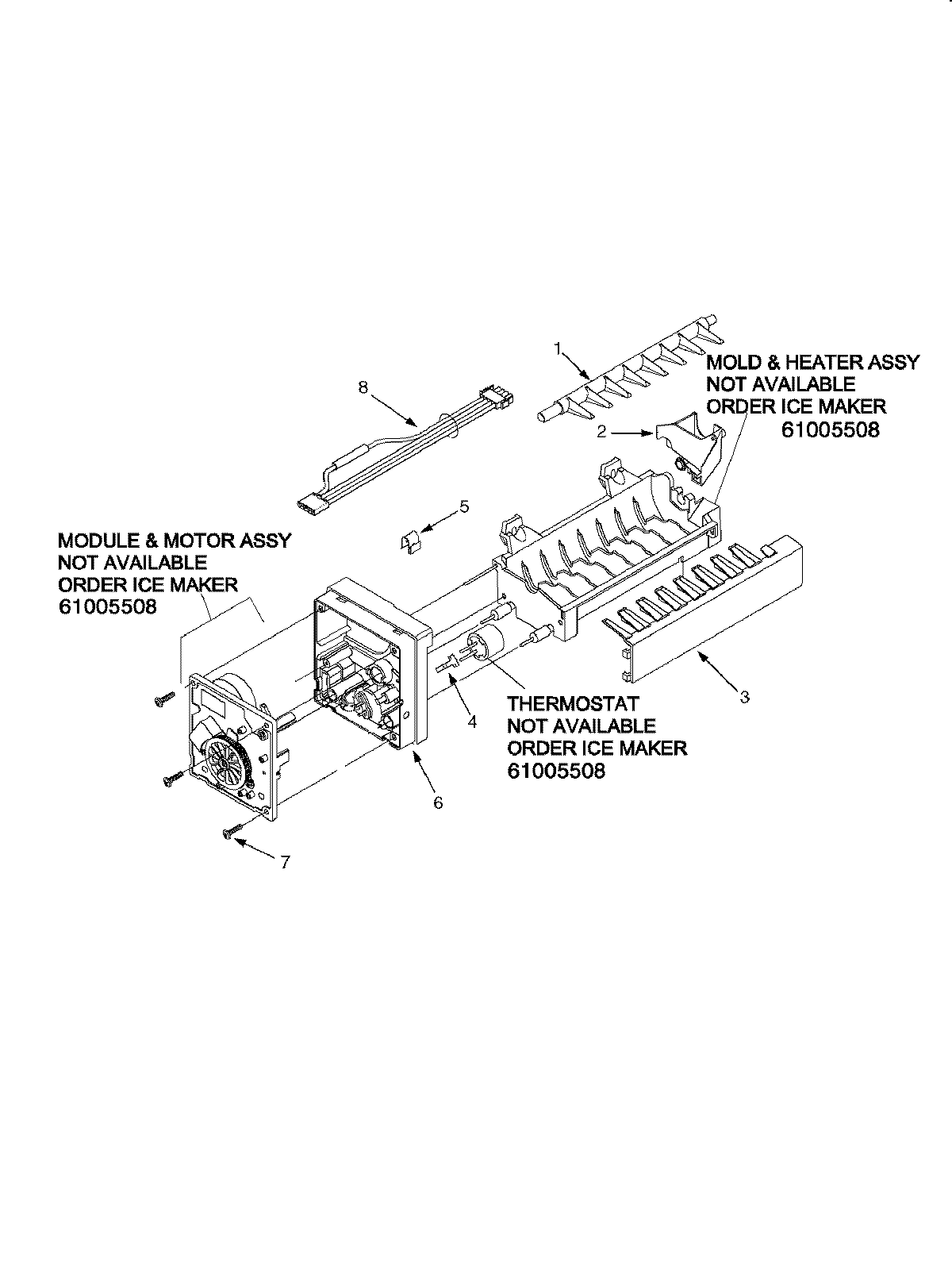

| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 95101-1 | EJECTOR | WP627843 | $70.20 | ||
| 2 | 95100-1 | CUP-FILL | WP628356 | $38.37 | ||
| 3 | 95102-1 | ARM-STRIPR | WP2182124 | $65.48 | ||
| 4 | 95104-1 | CLIP | WP2315522 | $8.02 | ||
| 5 | 95108-1 | SCREW | WP489128 | $9.34 | ||
| 5 | 95107-1 | BRACKET | WP2256087 | $74.58 | ||
| 6 | 95103-1 | HOUSING-IM | WP2195914 | $80.42 | ||
| 7 | 95106-1 | SCREW | WP681249 | $6.32 | ||
| 8 | 67002906 | HARNS-WIRE | W10146387 | $105.27 | ||
| NI | R0131235 | ICE MAKER HOOK UP KIT | 8003RP, 1M251 | Call to order | ||
| NI | 10244904 | COUPLING | W11033771 | $27.10 |
*The price can change whitout warning
