Brand: Maytag
Model: LAT8406AAE - WASHER

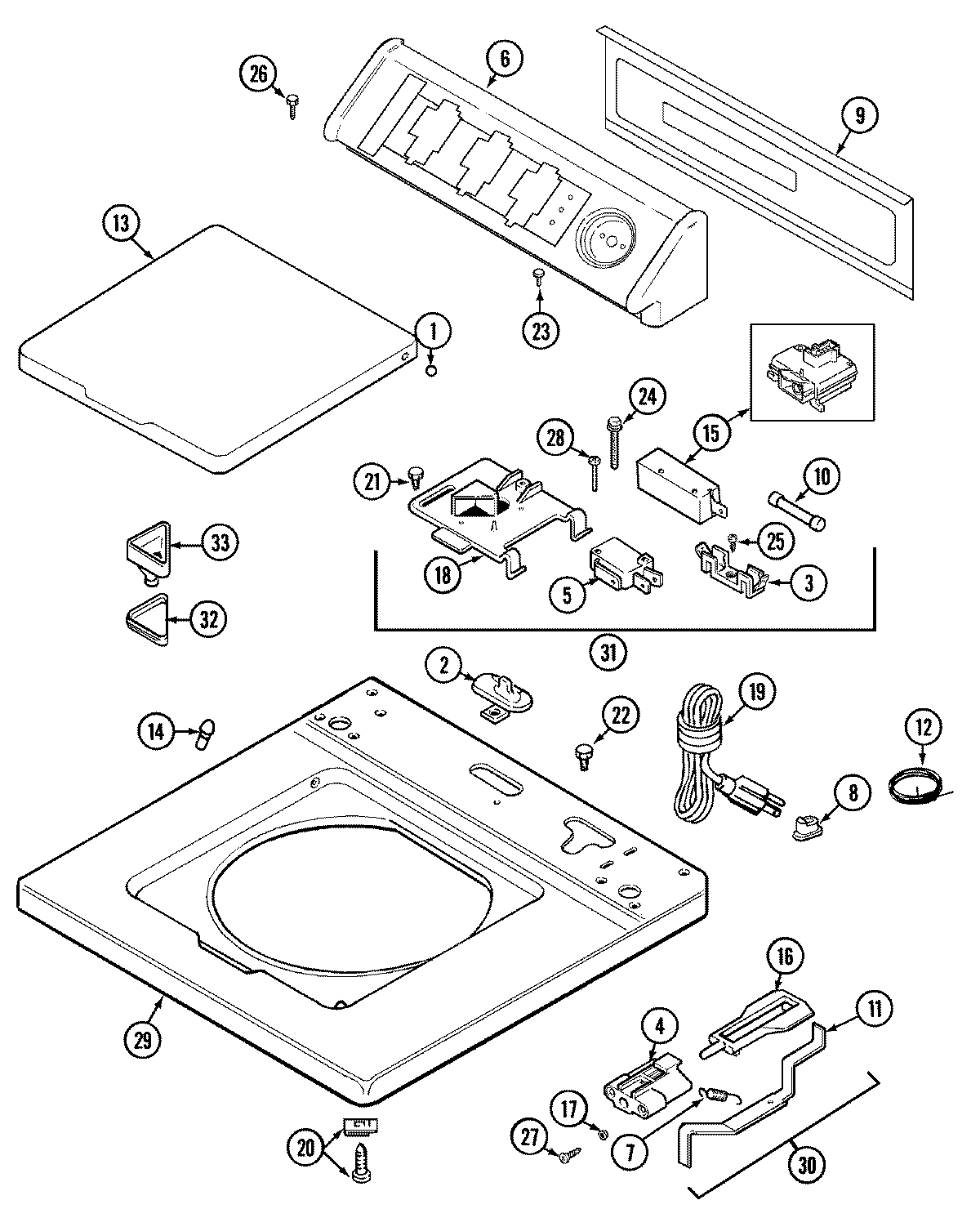

05 - TOP
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 211726 | HINGE BALL | WP211726 | $4.61 | ||
| 2 | 22001298 | CAP, TOP COVER | $0.00 | |||
| 2 | 207159 | SCREW | W11233072 | $12.16 | ||
| 3 | W10124350 | NOT REQUIRED PART OR SEE NOTE | $0.00 | |||
| 3 | 207167 | BLOCK, FUSE | $0.00 | |||
| 4 | 22002135 | BRACKET, UNBALANCE | $0.00 | |||
| 4 | 22001645 | BRACKET, UNBALANCE----NA | $0.00 | |||
| 5 | W10124350 | NOT REQUIRED PART OR SEE NOTE | $0.00 | |||
| 5 | 207166 | CHECK SWITCH | WP207166 | $61.63 | ||
| 6 | 22001670 | CONSOLE (WHT) | $0.00 | |||
| 7 | 213720 | SPRING | WP213720 | $6.27 | ||
| 8 | 211881 | GROMMET,CORD | $4.83 | |||
| 9 | 22001662 | SCREW | 8534058 | $7.85 | ||
| 9 | 216423 | SCREW | WP489128 | $9.34 | ||
| 9 | 22001814 | BACK PANEL, CONSOLE | $0.00 | |||
| 10 | 22001673 | KIT SWITCH & FUSE | WP22001682 | $49.41 | ||
| 10 | W10124350 | NOT REQUIRED PART OR SEE NOTE | $0.00 | |||
| 11 | 22001672 | LEVER, UNBALANCE | $0.00 | |||
| 11 | 22001968 | LEVER, UNBALANCE | $0.00 | |||
| 12 | 22001654 | WIRE, GROUND | $0.00 | |||
| 12 | Y705026 | SCREW | WP489128 | $9.34 | ||
| 13 | 22001676 | LID W/LEGEND (CANADA-WHT) | $0.00 | |||
| 13 | 22001674 | LID W/LEGEND (WHT) | $0.00 | |||
| 14 | 212716 | LID BUMPER | WP212716 | $6.06 | ||
| 15 | 205415 | LID SWITCH | W10820036 | $38.86 | ||
| 15 | 22001967 | SWITCH, LID (WHITE) | 12001908 | $53.56 | ||
| 16 | 216255 | BRACKET | WP216255 | $5.98 | ||
| 17 | 211500 | WASHER,BRACKE TO TOP COVER | $0.00 | |||
| 18 | 22001678 | BRACKET, SWITCH & FUSE | $29.00 | |||
| 18 | W10124350 | NOT REQUIRED PART OR SEE NOTE | $0.00 | |||
| 19 | 208194 | CORD- POWE | WP22003062 | $113.79 | ||
| 20 | 22001402 | SCREW | $0.00 | |||
| 21 | 207159 | SCREW | W11233072 | $12.16 | ||
| 22 | Y705026 | SCREW | WP489128 | $9.34 | ||
| 23 | 216423 | SCREW | WP489128 | $9.34 | ||
| 24 | 213501 | SCREW, No.6-20 X 1-1/8 INCH | $0.00 | |||
| 25 | Y311711 | SCREW | $0.00 | |||
| 26 | 216423 | SCREW | WP489128 | $9.34 | ||
| 27 | 22001600 | SCREW | W10756178 | $5.03 | ||
| 28 | 22001352 | SCREW, CHECK SWITCH | $0.00 | |||
| 29 | 22001781 | COVER, TOP (WHT-BLEACH) | $0.00 | |||
| 29 | 22002145 | COVER ASSY., TOP (WHT) | $0.00 | |||
| 30 | 22001969 | UNBALANCE LEVER ASSY | WP22001969 | $25.75 | ||
| 30 | 22001681 | LEVER ASSY. (UNBALANCE) | $0.00 | |||
| 31 | 22001682 | KIT SWITCH & FUSE | WP22001682 | $49.41 | ||
| 32 | 215374 | GASKET FOR BLEACH CUP | $0.00 | |||
| 33 | 22001006 | CUP,BLEACH | $37.67 |
*The price can change whitout warning
