Brand: Electrolux

Model: EIED2CAQSW00 - LAUNDRY, ELECTRIC DRYER

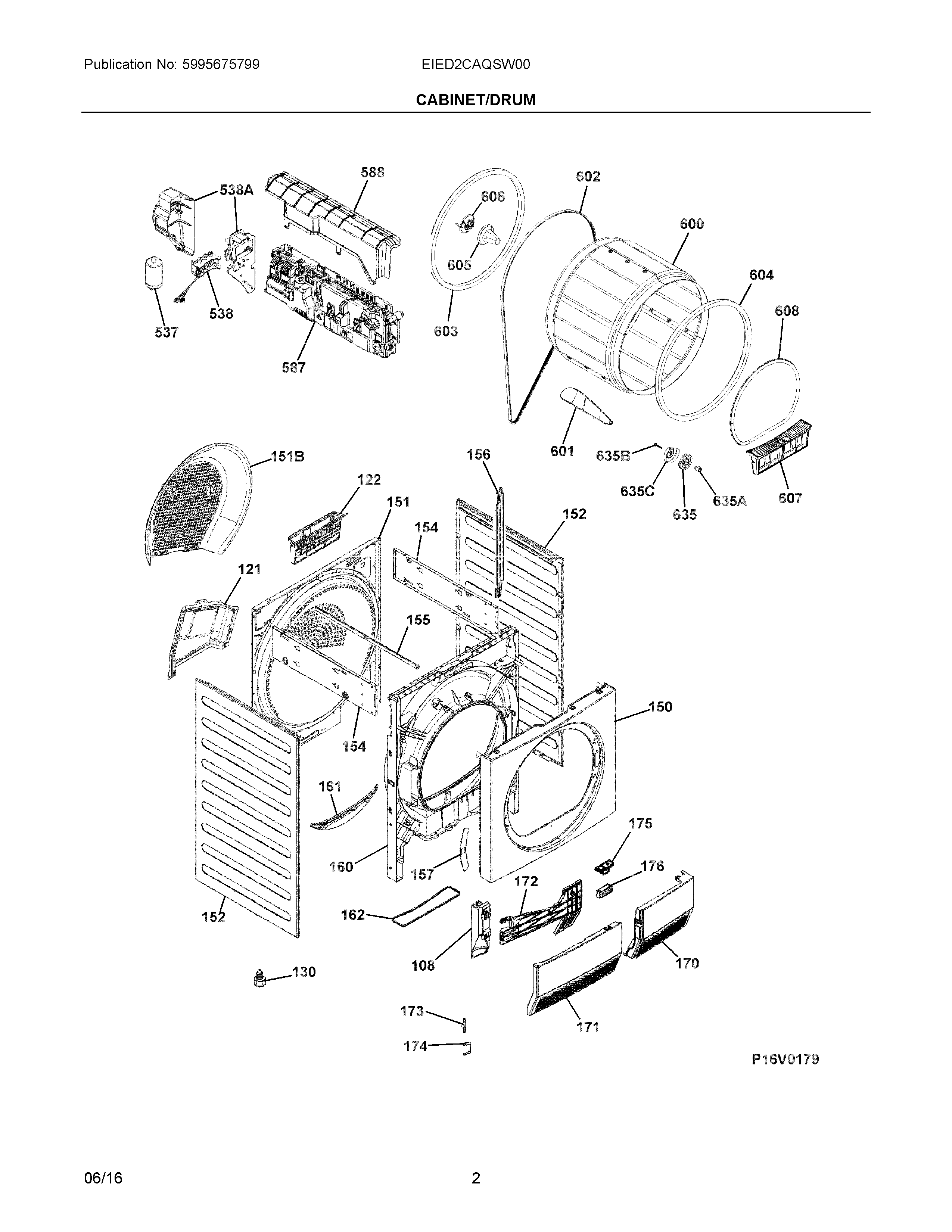

02 - CABINET/DRUM

EIED2CAQSW00
Plan number Part Number Description Replacement Price
108 136655202 HINGE,CONDENSER DOOR   $185.80
121 136602600 COVER,HEATING ELEMENT   $107.40
122 136602703 GRATING,PROTECTION,HEATING ELE   $361.40
130 899647060471 LEG,LEVEL, ADJUST   $73.30
150 136436000 PANEL,FRT,HP,NIAGRA   $345.45
151 136600571 PANEL,BACK ASMY, P10,SAHARA   $240.95
151B 136604000 BULKHEAD,REAR,PLASTIC   $100.15
152 136301630 PANEL-SIDE,INSULATION 5304526177   $148.75
154 136601501 REINFORCEMENT, TOP   $0.00
155 136601600 REINFORCEMENT, MIDDLE, TOP   $0.00
156 136604604 BRACKET, WIRING   $0.00
157 136608900 COVER PLATE,DOOR LOCK   $42.10
160 136600436 DUCT, AIR, FRONT, LAMP 136600457   $0.00
161 136605801 SUPPORT,HUMIDITY SENSOR   $63.15
162 136606100 GASKET,FILTER   $47.90
170 136655102 COVER,KICKPLATE 136655101   $299.00
171 136655005 DOOR,OUTER, PLINTH,WHITE   $202.50
172 136655501 DOOR,INNER, SUPPORT   $68.95
173 112331110 HINGE PIN,DOOR, PLINTH   $49.35
174 136608100 SPRING,DOOR, PLINTH   $38.45
175 405512360 BUTTON, DOOR, WHITE   $0.00
176 136602300 SUPPORT,BUTTON,DOOR 136602301   $8.00
537 808089303 FILTER,ANTI-INTERFER,POWER CAB   $244.55
538 A01517003 TERMINAL BLOCK,ASMY, WIRING,UL   $161.10
538A 809167003 TERMINAL, BLOCK, BOX   $0.00
587 97391609755200 CONTROL BOARD   $428.90
588 136006502 COVER,MAIN BOARD,WHITESHARK   $172.00
600 136603050 DRUM,COMPLETE   $324.40
601 807519102 VANE, DRUM, 298.3MM, GREY   $0.00
602 809183801 BELT,DRIVE,L=1886.7MM   $50.80
603 136424300 GASKET,DRUM, BACK,1683MM   $168.35
604 136808930 GASKET   $131.35
605 136655401 CONE,AGITATOR,ANTI-ENTANGLE   $62.40
606 136623702 CONE,ANTI-ENTANGLE,BASE   $34.85
607 136601901 LINT FILTER   $198.10
608 136606311 GASKET,LG OPENING,FRONT   $82.75
635 125423520 ROLLER 136405900   $156.75
635A 125425004 BUSHING,SUPPORT, ROLLER   $132.80
635B 124022201 BOLT,5,5X38   $45.00
635C 809166601 COVER, METAL, ROLLER   $0.00
NI 136608610 FELT,DISC, Ø24/Ø12MM   $50.10
NI 134502300 CORD,POWER,30AMP 125,250V,4 WI 5304505408   $161.10
*The price can change whitout warning
