Brand: Electrolux
Model: PLFU1777DS1 - FREEZER

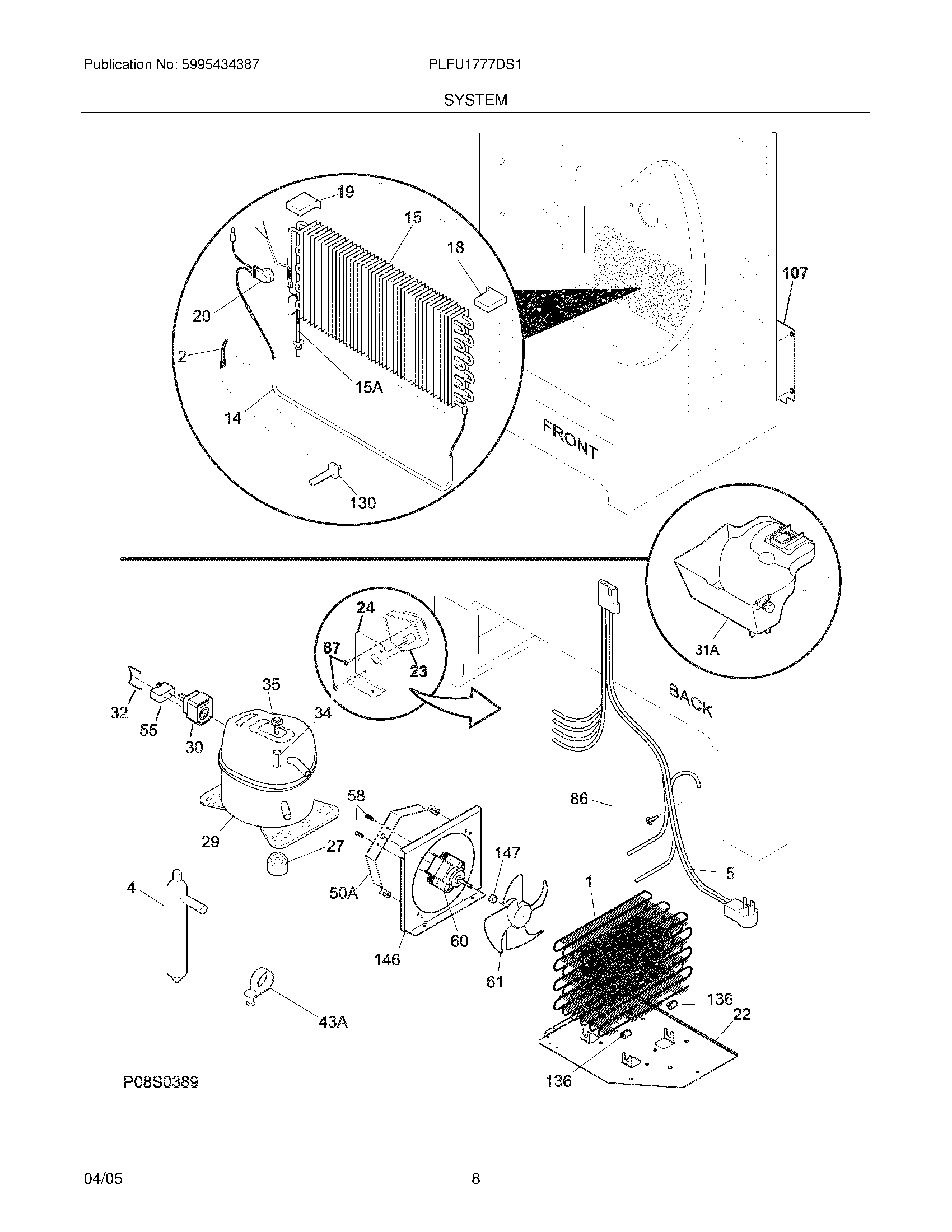

07 - SYSTEM
- 01 - COVER
- 03 - DOOR
- 05 - CABINET
- 07 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 297004400 | Condenser,dynamic,assy | $0.00 | |||
| 2 | 5308000110 | STRAP-EVAP/HEATER | $63.85 | |||
| 4 | 216938600 | Drier-filter | 5303305677, 60041 | Call to order | ||
| 5 | 216993600 | Harness-main | 297033600 | $0.00 | ||
| 14 | 216730700 | ELEMENT DEFROST | $111.75 | |||
| 15 | 216737300 | EVAPORATOR | 297414901, WG03F04154 | $168.35 | ||
| 15A | 216783200 | HEAT EXCHANGER | $91.45 | |||
| 18 | 216727600 | INSULATOR-EVAP,STYROFOAM | 297078700 | $0.00 | ||
| 19 | 216727700 | INSULATOR-EVAP,STYROFOAM | 297078800 | $0.00 | ||
| 20 | 216731000 | DEFROST THERMOSTAT | 297216600 | $23.95 | ||
| 22 | 216970300 | Base,condenser | $0.00 | |||
| 23 | 216744400 | DEFR. TIMER 12HR 30 MIN | 5304518034 | $63.15 | ||
| 24 | 216968500 | Bracket-timer | 216968501 | $0.00 | ||
| 27 | 5308002681 | GROMMET, COMPRESSOR | 216498900 | $13.05 | ||
| 29 | 297002900 | COMPRESSOR | 5304478809 | $584.90 | ||
| 30 | 216954202 | CONTROLLER,COMP | $76.20 | |||
| 31A | 216994100 | PAN-DRAIN | 216994102 | $29.75 | ||
| 32 | 216649100 | CLAMP,ELEC CONT MTG ,COMPRESSOR | $0.00 | |||
| 34 | 5306594529 | SLEEVE-COMPRESSOR | $0.00 | |||
| 35 | 5303272328 | SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR | $0.00 | |||
| 43A | 5303212614 | CLIP- HARNESS | $1.45 | |||
| 50A | 240524001 | Bracket,fan motor mount | $0.00 | |||
| 55 | 218909913 | CAPACITOR RUN, 220V, 15MFD | 5304464438, WG02F09142 | $58.05 | ||
| 58 | 218897002 | SCREW-#8-32 X 3/8 | 240555002 | $13.80 | ||
| 60 | 240525401 | MOTOR CONDENSER FAN | 5303918774 | $177.80 | ||
| 61 | 240524101 | FAN BLADE | 240524102, WG03F02388 | $25.40 | ||
| 86 | 216036600 | SCREW,RWHD,8-32A X 0.500,GX-CA | 216036601 | $13.05 | ||
| 87 | 08037849 | Screw,ph truss head ,6-32(T) x 0.500 ,thread cutting | $0.00 | |||
| 107 | 297001900 | Shield,compressor ,Compartment | $0.00 | |||
| NI | 216858000 | SCREW,8-18X.50 AB,#10 | 216858001 | $10.90 | ||
| 130 | 216486800 | SUPPORT,EVAPORATOR | 297244700 | $4.35 | ||
| 136 | 240405201 | GROMMET,CONDENSOR | $20.35 | |||
| 146 | 216970200 | Shroud-fan orfice | $0.00 | |||
| 147 | 240560001 | Ring-compression | $0.00 | |||
| NI | 216347500 | SCREW,RWHD,8-32A X 0.500,GX-CA | 216036601 | $13.05 | ||
| NI | 216502500 | SLEEVE SUCTION LINE | $10.90 | |||
| NI | 297014500 | PLUG,SUCTION LINE | 297014702 | $9.45 | ||
| NI | 5303298960 | Spacer-tube,0.237`` ID | $0.00 |
*The price can change whitout warning
