Brand: Whirlpool
Model: 5KSM7990XBSL0 - SMALL APPLIANCE, STAND MIXER, 7 QT

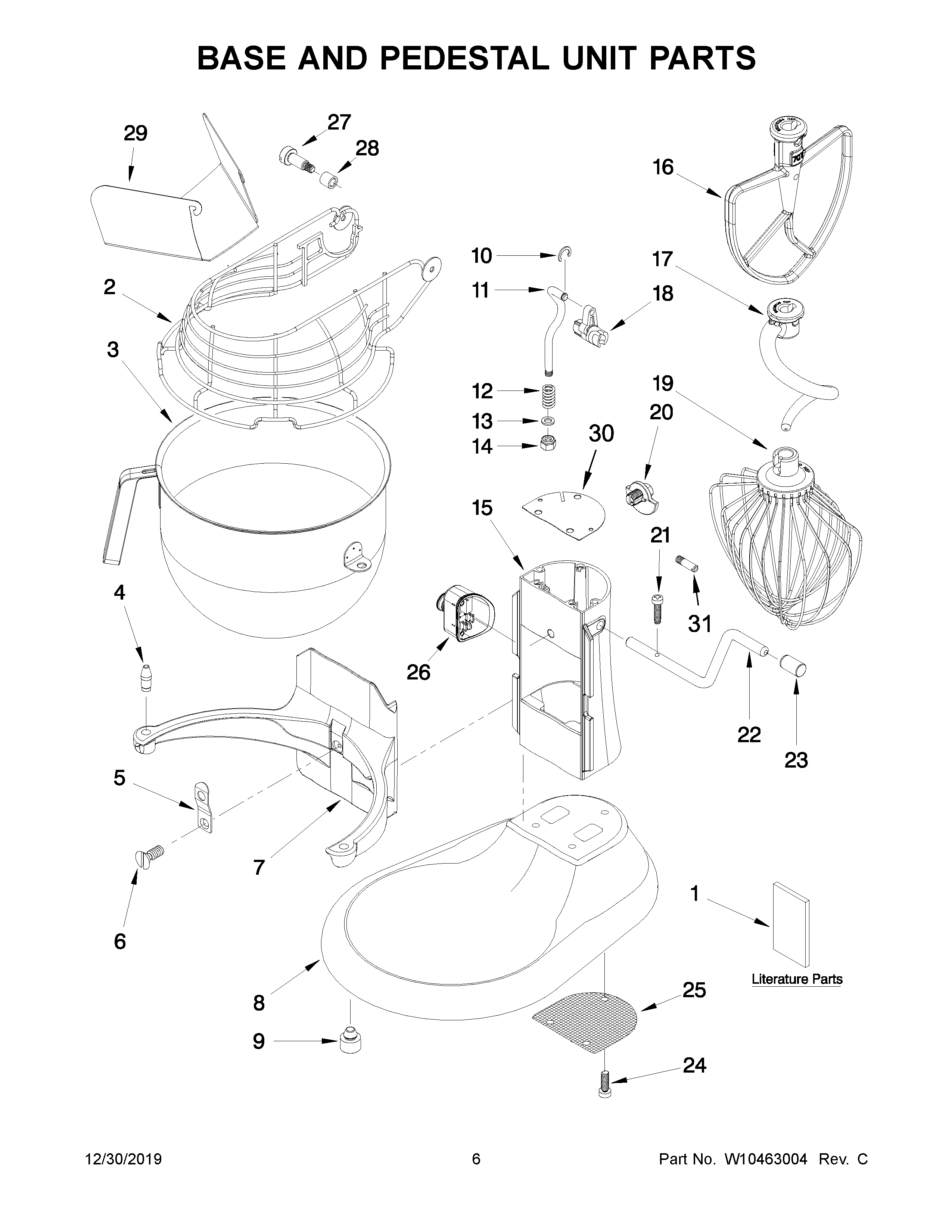

04 - BASE AND PEDESTAL UNIT PARTS
- 01 - COVER SHEET
- 02 - COLOR VARIATION PARTS
- 03 - CASE, GEARING AND PLANETARY UNIT PARTS
- 04 - BASE AND PEDESTAL UNIT PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11357725 | USE & CARE GUIDE | $0.00 | |||
| 2 | W10504744 | GUARD, BOWL | W11740331 | $0.00 | ||
| 3 | W10354780 | BOWL-MIXER | WPW10354780 | $129.43 | ||
| 4 | 240185 | PANEL- OVE | WP240185 | $3.15 | ||
| 5 | W10504114 | CLIP | WPW10504114 | $3.57 | ||
| 6 | 3400018 | SCREW | W10861883 | $3.57 | ||
| 7 | N/P | BOWL SUPPORT (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 8 | N/P | BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 9 | 9708649 | FOOT | WP9708649 | $3.41 | ||
| 10 | 9703307 | RING-C | WP9703307 | $3.41 | ||
| 11 | W10598835 | ROD-LIFT | W11376364 | $21.31 | ||
| 12 | 9237 | SPRING | 4159622 | $3.44 | ||
| 13 | 9703439 | WASHER | W11708395 | $3.02 | ||
| 14 | 8533907 | NUT | $19.32 | |||
| 15 | N/P | COLUMN ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE) | $0.00 | |||
| 16 | W10720793 | BEATER-MXR | W11458649 | $60.55 | ||
| 17 | W10720794 | HOOK-DOUGH | W11397072 | $53.51 | ||
| 18 | 9706885 | ARM-LIFT | WP9706885 | $3.41 | ||
| 19 | W10600940 | ASSY-COMM 11 WIRE WHIP | WPW10600940 | $90.29 | ||
| 20 | 9703426 | CAM | $4.28 | |||
| 21 | 3400863 | SCREW | WP3400814 | $3.57 | ||
| 22 | W10598836 | HANDLE | W11376371 | $25.37 | ||
| 23 | W10391115 | HANDLE | W11379274 | $7.49 | ||
| 24 | 3400200 | SCREW | W10913677 | $3.41 | ||
| 25 | 9706814 | SCREEN | $32.14 | |||
| 26 | W10461707 | MODULE | W11651610 | $141.41 | ||
| 27 | W10308293 | PIN-GUARD | W11676535 | $14.62 | ||
| 28 | W10445096 | SLEEVE | W11676536 | $7.14 | ||
| 29 | W10600050 | SHELD-POUR | $71.34 | |||
| 30 | W10512243 | GASKET | $21.49 | |||
| 31 | W10572158 | SCREW | W10802060 | $3.57 |
*The price can change whitout warning
