Brand: Maytag
Model: MTB2156GEW - REFRIGERATOR

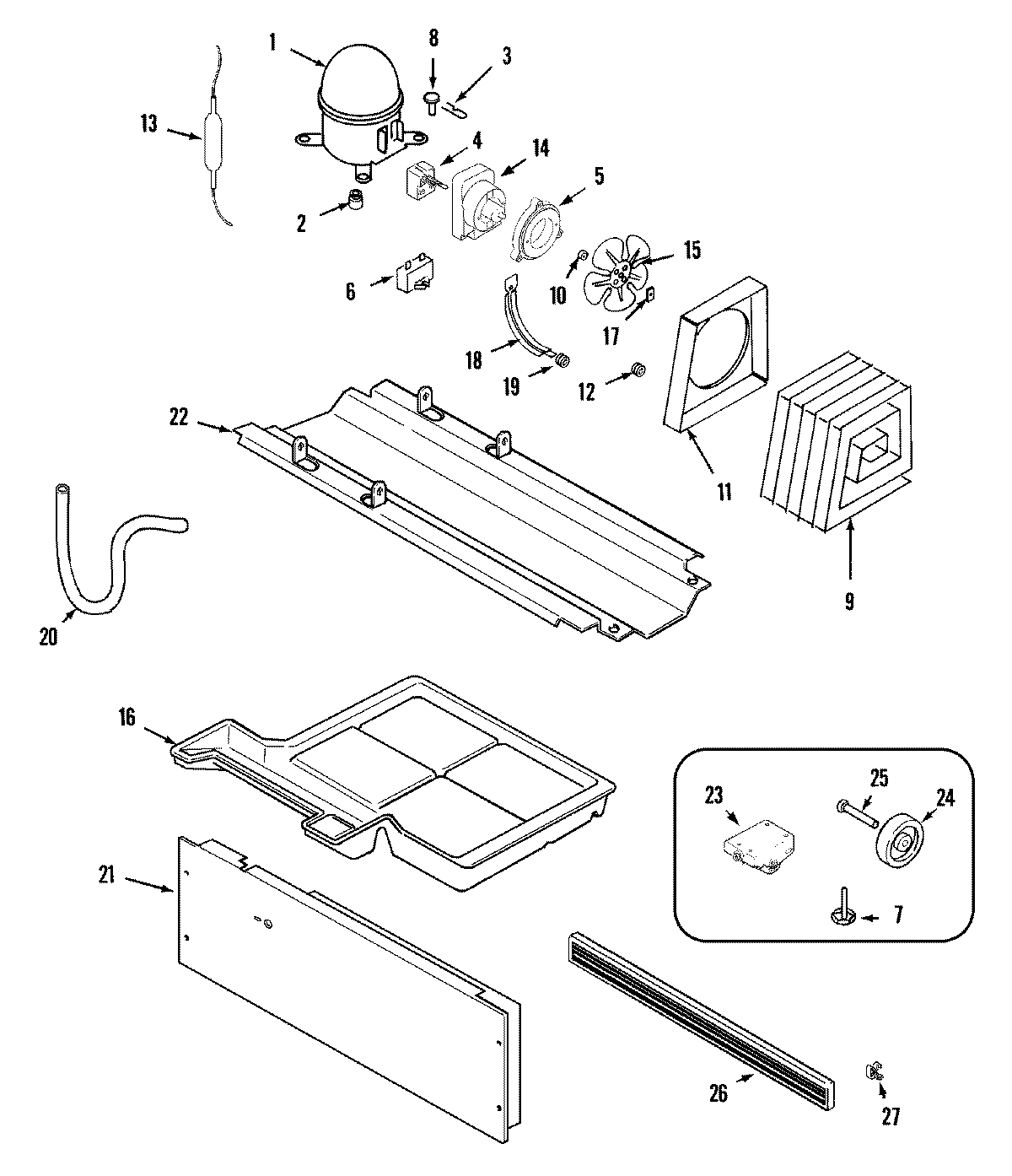

01 - COMPRESSOR (MTB2156GEQ/S/W REV 15)
- 01 - COMPRESSOR (MTB2156GEQ/S/W REV 15)
- 01 - MOTOR AND HOUSING UNIT
- 03 - COMPRESSOR (REV 10)
- 03 - OPTIONAL PARTS (NOT INCLUDED)
- 04 - CONTROLS
- 05 - FREEZER COMPARTMENT
- 06 - FREEZER INNER DOOR
- 07 - FREEZER OUTER DOOR
- 08 - FRESH FOOD INNER DOOR
- 10 - CONTROL PANEL & CONTROLS
- 11 - SHELVES & ACCESSORIES
- 12 - WIRING INFORMATION
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 61006023 | WIRE HARNESS, COMPRESSOR | $0.00 | |||
| 1 | 12002059 | KIT, COMPRESSOR | $0.00 | |||
| 2 | 61005241 | GROMMET | WP4387558 | $6.06 | ||
| 3 | 61003099 | CLIP, COMPRESSOR | $0.00 | |||
| 4 | 61006022 | START-DEV | W11285096 | $119.76 | ||
| 4 | 61006029 | CLIP, RETAINER | $0.00 | |||
| 5 | 61005326 | SCREW | $0.00 | |||
| 5 | 61005325 | ADAPTER, FAN MOTOR | $0.00 | |||
| 6 | 65889-4 | CAPACITOR | WP65889-4 | $69.83 | ||
| 6 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 7 | 61002014 | LEG, LEVELING | $0.00 | |||
| 8 | 52656-2 | PLUG, COMPRESSOR | $0.00 | |||
| 9 | 61005427 | CONDENSER | $0.00 | |||
| 9 | 61004378 | SCREW | WP489399 | $5.68 | ||
| 10 | 61001686 | WASHER, FAN BLADE | $0.00 | |||
| 11 | 61001941 | SHROUD, CONDENSER | $0.00 | |||
| 12 | 61002033 | GROMMET, CONDENSER TUBING | $0.00 | |||
| 13 | 13900-1 | UV DRIER-TUBE | WPW10143759 | $25.87 | ||
| 14 | 61005324 | SCREW | WP90767 | $6.30 | ||
| 14 | 61005323 | MOTOR, CONDENSER FAN | $0.00 | |||
| 15 | 60683-1 | BLADE-COND FAN | WP12587601 | $97.85 | ||
| 16 | 61001955 | PAN, DRAIN | $0.00 | |||
| 16 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 17 | 19914 | NUT | WP486692 | $5.98 | ||
| 18 | 69181-1 | BRACKET, FAN MOTOR | $0.00 | |||
| 19 | 61004743 | GROMMET- B | WP61004743 | $6.82 | ||
| 20 | 61002214 | TUBE, DRAIN TRAP | $0.00 | |||
| 21 | 61005061 | COVER, COMPRESSOR COMPARTMENT | $0.00 | |||
| 21 | 61005388 | SCREW | $0.00 | |||
| 21 | 65275-1 | SCREW | WP33002917 | $5.63 | ||
| 22 | 61002407 | SCREW | WP67006715 | $6.81 | ||
| 22 | 61005268 | PAN, COMPRESSOR MTG. | $0.00 | |||
| 23 | 400016-1 | SCREW | W11233072 | $12.16 | ||
| 23 | 61005232 | WHEEL ASSY. (FRT) | $0.00 | |||
| 23 | 61005165 | SCREW | W11233072 | $12.16 | ||
| 24 | 61003826 | WHEEL (REAR) | WP61003826 | $7.03 | ||
| 25 | 61002104 | PIN,WHEEL | WP61002104 | $1.33 | ||
| 26 | 61002536 | KICKPLATE W/CLIPS (WHT) | $0.00 | |||
| 27 | 61001975 | CLIP, KICKPLATE | $0.00 | |||
| 28 | 12001492 | YODER LOOP HEATER REPAIR (115V | $0.00 | |||
| 29 | 16010376 | MANUAL, USE & CARE (TRILNGUL) | $0.00 | |||
| 30 | 16008248 | MANUAL, SERVICE-NO REFUND | $0.00 |
*The price can change whitout warning
