Brand: Maytag

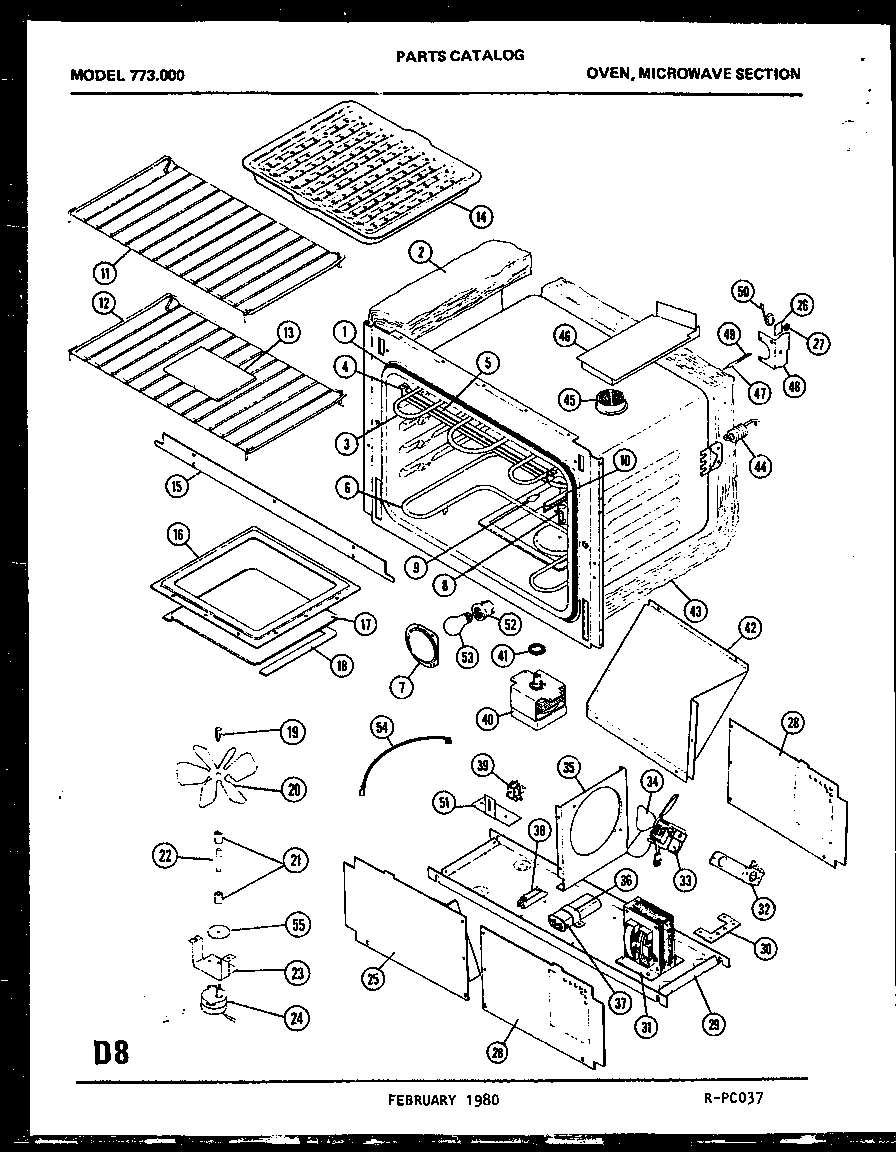

Model: 773.000 - MICROWAVE
04 - Page 1
- 01 - COOKTOP PARTS
- 02 - MAINTOP
- 04 - Page 1
- 11 - CONTROL BOX PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | M25D40 | GASKET, OVEN CAVITY | $0.00 | |||
| 2 | M63D21 | NOT AVAILABLE | $0.00 | |||
| 3 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 3 | M1D658 | SCREW, TERMINAL FASTENING | $0.00 | |||
| 3 | M61D44 | ELEMENT KIT | $0.00 | |||
| 4 | M52D72 | BRKT | $0.00 | |||
| 4 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 5 | M8D182 | INSULATOR ELEMT | $0.00 | |||
| 6 | M1D658 | SCREW, TERMINAL FASTENING | $0.00 | |||
| 6 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 6 | M61D54 | BAKE ELEMENT KIT | $0.00 | |||
| 7 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 7 | M7D395 | LENS ASM | $0.00 | |||
| 8 | M2D387 | JW CLIP | $0.00 | |||
| 8 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 9 | M2D251 | JW GASKET | $0.00 | |||
| 9 | M2D420 | HOLE COVER, CAPILLARY TUBE | $0.00 | |||
| 9 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 10 | M20D100 | SHIELD CAPILLARY | $0.00 | |||
| 10 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 11 | M67D11 | RACK- | $0.00 | |||
| 11 | M67D14 | RANGE RACK | $0.00 | |||
| 12 | M67D10 | WIRE RACK | $0.00 | |||
| 12 | M67D12 | RANGE RACK | $0.00 | |||
| 13 | M50D22 | SHELF | $0.00 | |||
| 14 | M67D28 | BROILER PAN & INSERT ASSEMBLY | $0.00 | |||
| 15 | M1D592 | NOT AVAILABLE | $0.00 | |||
| 15 | M52D113 | NOT AVAILABLE | $0.00 | |||
| 16 | M1D801 | SCREW, FRAME MTG. | $0.00 | |||
| 16 | M20D169 | NOT AVAILABLE | $0.00 | |||
| 17 | M50D34 | NOT AVAILABLE | $0.00 | |||
| 18 | M25D61 | GASKET ASSY | $0.00 | |||
| 19 | M2D459 | SCREW, STIRRER MTG | $0.00 | |||
| 20 | M35D32 | STIRRER BLADE | $0.00 | |||
| 21 | M2D460 | CUP, STIR CLUTCH | $0.00 | |||
| 22 | M2D461 | SHAFT, STIRRER | $0.00 | |||
| 23 | M1D590 | SCREW (25) | $0.00 | |||
| 23 | M20D144 | BRKT SHAFT SUPT | $0.00 | |||
| 24 | M12D60 | MOTOR, STIRRER | $0.00 | |||
| 24 | M1D462 | SCREW (25) | $0.00 | |||
| 25 | M1D107 | SCREW (25) | $0.00 | |||
| 25 | M52D182 | SIDE PNL, PWR SUP | $0.00 | |||
| 26 | M5D163 | INSULATOR | $0.00 | |||
| 27 | M1D839 | CLIP (10) | $0.00 | |||
| 28 | M1D107 | SCREW (25) | $0.00 | |||
| 28 | M52D127 | NOT AVAILABLE | $0.00 | |||
| 29 | M1D485 | SCREW | $0.00 | |||
| 29 | M52D175 | NOT AVAILABLE | $0.00 | |||
| 30 | M1D544 | SCREW (25) | $0.00 | |||
| 30 | M1D475 | SCREW | $0.00 | |||
| 30 | M8D110 | BRACKET | $0.00 | |||
| 31 | M60D79 | TRANSFORMER | $0.00 | |||
| 32 | M8D116 | BRACKET-FAN MTG | $0.00 | |||
| 32 | M1D475 | SCREW | $0.00 | |||
| 33 | M1D528 | NUT K | $0.00 | |||
| 33 | M12D61 | BLWR MTR | $0.00 | |||
| 34 | M35D15 | FAN BLADE | $0.00 | |||
| 35 | M20D143 | PLENUM, BLWR | $0.00 | |||
| 35 | M1D475 | SCREW | $0.00 | |||
| 36 | M20D60 | CAPACITOR BRKT | $0.00 | |||
| 36 | M1D475 | SCREW | $0.00 | |||
| 37 | M10D72 | CAPACITOR-1.15 | $0.00 | |||
| 37 | M10D70 | CAPACITOR-1.15 | $0.00 | |||
| 37 | M10D71 | CAPACITOR-1.15 | $0.00 | |||
| 38 | M1D694 | SCREW 8-A | $0.00 | |||
| 38 | M5D254 | GROUND LEAD KIT | $0.00 | |||
| 38 | M3D29 | HV RECT 12KV 750MAx | $0.00 | |||
| 38 | M5D253 | WIRE LEAD, DIODE H.V. | $0.00 | |||
| 39 | M1D322 | SCREW (25) | $0.00 | |||
| 39 | M16D68 | RELAY-OVEN | $0.00 | |||
| 40 | M1D449 | No.10-32 FLANGE WHIZ-LK NUT | $0.00 | |||
| 40 | M57D26 | KIT, MAGNETRON | $0.00 | |||
| 41 | M2D296 | GASKET-RF | $0.00 | |||
| 42 | M1D475 | SCREW | $0.00 | |||
| 42 | M65D193 | EXH DUCT | $0.00 | |||
| 43 | M63D23 | NOT AVAILABLE | $0.00 | |||
| 44 | M5D114 | OVEN SPRING | $0.00 | |||
| 45 | M67D20 | ELIMINATOR | $0.00 | |||
| 45 | M1D802 | SCREW, FRAME MOUNTING | $0.00 | |||
| 46 | M1D475 | SCREW | $0.00 | |||
| 46 | M65D188 | VENT-HORIZ | $0.00 | |||
| 47 | M2D413 | PIN INTERLOCK | $0.00 | |||
| 48 | M1D533 | SCREW (25) | $0.00 | |||
| 48 | M8D181 | BRKT OVEN LITE | $0.00 | |||
| 49 | M2D414 | 53571P01 | $0.00 | |||
| 50 | M14D203 | SWITCH OL INTLK | $0.00 | |||
| 50 | M1D1 | No.4-40 PAN HD MACH SCR | $0.00 | |||
| 50 | M1D673 | NUT TWIN SPD | $0.00 | |||
| 51 | M8D183 | RELAY-BKT | $0.00 | |||
| 51 | M1D475 | SCREW | $0.00 | |||
| 52 | M5D113 | SOCKET OVEN | $0.00 | |||
| 53 | M9D49 | BULB, LIGHT (40 WATT ALUM.) | $0.00 | |||
| 54 | M5D250 | H.V. LEAD | $0.00 | |||
| 54 | M5D252 | H.V. LEAD 34 | $0.00 | |||
| 54 | M5D251 | H.V. LEAD | $0.00 | |||
| 54 | M5D249 | H.V. LEAD | $0.00 | |||
| 55 | M2D467 | HEAT SINK DISC | $0.00 |
