Brand: Maytag
Model: MDB4709AWB1 - DISHWASHER

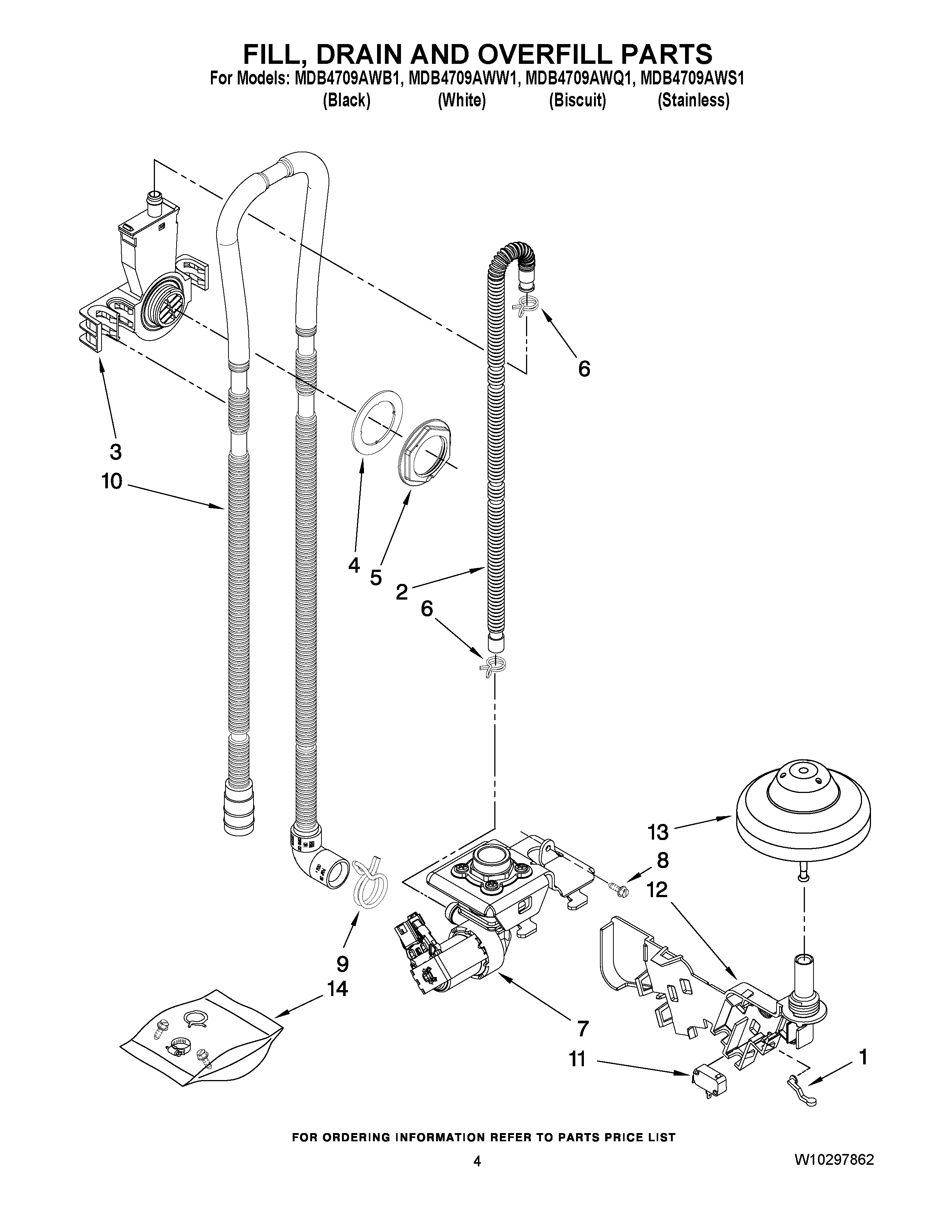

04 - FILL, DRAIN AND OVERFILL PARTS
- 01 - DOOR AND PANEL PARTS
- 02 - CONTROL PANEL PARTS
- 02 - REFRIGERATOR LINER PARTS
- 04 - FILL, DRAIN AND OVERFILL PARTS
- 04 - FILL, DRAIN AND OVERFILL PARTS
- 05 - MACHINE BASE PARTS
- 05 - TUB AND FRAME PARTS
- 06 - PUMP AND MOTOR PARTS
- 07 - UPPER WASH AND RINSE PARTS
- 09 - DISPENSER FRONT
- 10 - LOWER RACK PARTS
- 11 - LOWER WASHARM PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 8268892 | LEVER | WP8268892 | $41.93 | ||
| 2 | 8531412 | HOSE-INLET | W10878507 | $78.19 | ||
| 3 | W10195536 | INLET,WATER VALVE | WPW10195536 | $97.64 | ||
| 4 | 8531323 | GASKET | WP8531323 | $32.62 | ||
| 5 | 8531326 | NUT-TUBE | WPW10508676 | $16.34 | ||
| 6 | 371505 | CLAMP | WP596669 | $6.27 | ||
| 7 | W10195049 | FILL VALVE ASSEMBLY | WPW10195049, W10648041 | $0.00 | ||
| 8 | 304392 | SCREW | WP489069 | $6.32 | ||
| 9 | 356138 | CLAMP | WP356138 | $6.27 | ||
| 10 | W10137608 | HOSE - DRAIN LOOP, SS, ATL | WPW10545278 | $64.70 | ||
| 11 | 8268909 | SWITCH,OVERFILL CONTROL | WP8268909 | $58.94 | ||
| 12 | W10175383 | HOUSING, OVERFILL CONTROL (PL) | WPW10175383 | $65.83 | ||
| 13 | 8268913 | FLOAT - OVERFILL CONTROL,WHT | WP8268913 | $79.45 | ||
| 14 | 8269297 | PARTS-MISC | WPW10292170 | $70.80 |
*The price can change whitout warning
