Marque: Whirlpool
Modèle: KSRS25ILSS13

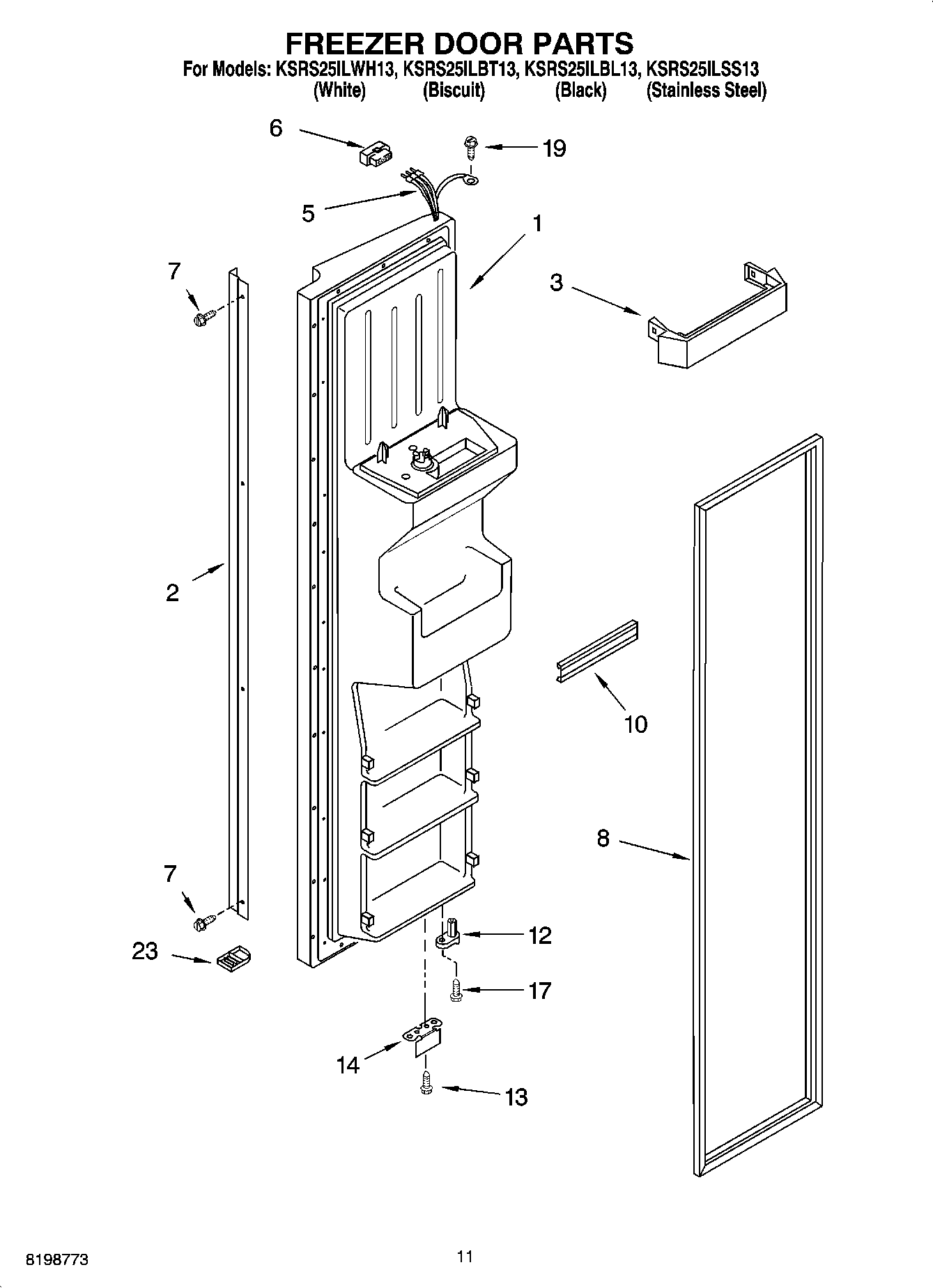

07 - FREEZER DOOR PARTS
- 01 - CABINET PARTS
- 02 - REFRIGERATOR LINER PARTS
- 03 - REFRIGERATOR SHELF PARTS
- 04 - FREEZER LINER PARTS
- 05 - MOTOR AND ICE CONTAINER PARTS
- 06 - REFRIGERATOR DOOR PARTS
- 07 - FREEZER DOOR PARTS
- 08 - DISPENSER FRONT PARTS
- 09 - AIR FLOW PARTS
- 10 - CONTROL PARTS
- 11 - UNIT PARTS
- 12 - ICEMAKER PARTS, PARTS NOT ILLUSTRATED


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 2216062W | Freezer Door (Includes 8 And Dispenser Front Parts) (White) | 0,00$ | |||
1 | 2216062T | Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit) | 0,00$ | |||
1 | 2216062B | Freezer Door (Includes 8 And Dispenser Front Parts) (Black) | 0,00$ | |||
1 | 2216062S | Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless) | 0,00$ | |||
2 | 2207112W | Handle (White) | 0,00$ | |||
2 | 2207112T | Handle (Biscuit) | 0,00$ | |||
2 | 2207112B | Handle (Black) | 0,00$ | |||
2 | 2207112S | Handle (Stainless) | 0,00$ | |||
3 | 2171070 | Shelf Bin (3) | 0,00$ | |||
5 | 2206178 | Dispenser Harness | 0,00$ | |||
6 | 2154473 | CONNECTOR | WP2154473 | 20,08$ | ||
7 | 3400898 | Screw (White) | 0,00$ | |||
7 | 8281135 | Screw (Biscuit) | 0,00$ | |||
7 | 3400899 | Screw (Black) | 0,00$ | |||
7 | 3400897 | Screw (Chrome) | 0,00$ | |||
8 | 2221303 | GASKET-FIP | 2159074 | 286,82$ | ||
8 | 2221314 | JOINT-FIP | 2159082 | 292,80$ | ||
10 | 2219982 | TRIM-DOOR | WPW10307490 | 8,25$ | ||
12 | 2182179 | CAME-PORTE | WP2182179 | 4,69$ | ||
13 | 489420 | VIS | WP489483 | 9,37$ | ||
14 | 2200082 | Bracket, Door Stop (Chrome) | 0,00$ | |||
14 | 2200082B | Bracket, Door Stop (Black) | 0,00$ | |||
17 | 3400012 | VIS | WP3400012 | 6,32$ | ||
19 | 488500 | VIS | WP489128 | 9,34$ | ||
23 | 2207110W | Endcap (White) | 0,00$ | |||
23 | 2207110T | Endcap (Biscuit) | 0,00$ | |||
23 | 2207110B | Endcap (Black) | 0,00$ |
*Le prix peut changer sans préavis
