Marque: Whirlpool
Modèle: RF365PXXW0

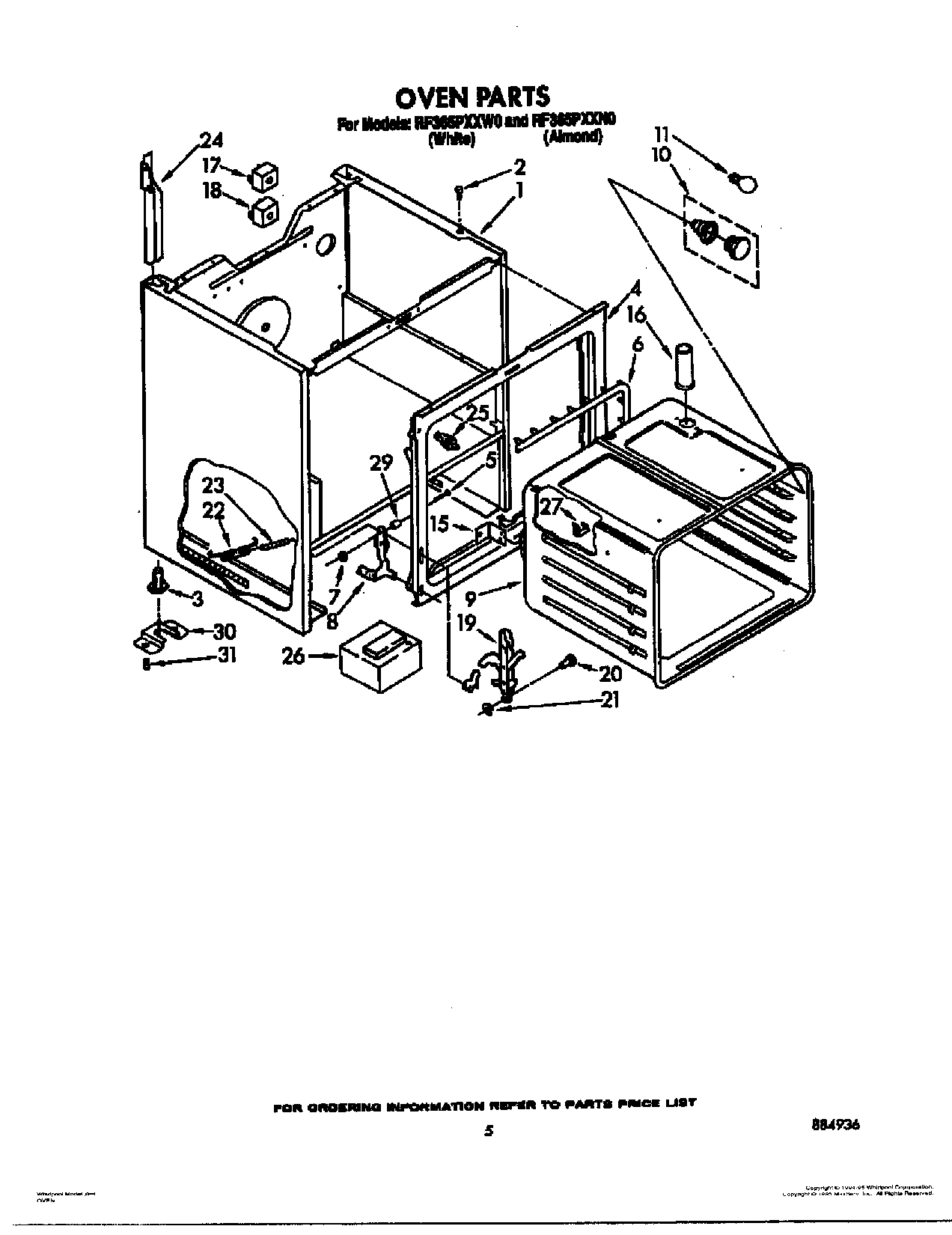

04 - OVEN
# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 330086 | Main Chassis (White) | ||||
1 | 330090 | Main Chassis (Almond) | ||||
1 | 690989 | VIS | WP681414 | Appeler pour commander | ||
1 | 343641 | VIS | WP681414 | Appeler pour commander | ||
2 | 238614 | BUTOIR | Appeler pour commander | |||
3 | 3150150 | PATTE DE NIVELLEMENT | WPW10058460 | Appeler pour commander | ||
4 | 3172194 | Frame, Front | ||||
4 | 343641 | VIS | WP681414 | Appeler pour commander | ||
4 | 3150537 | Screw (Top) | ||||
5 | 307985 | Pin, Hinge | ||||
6 | 3148284 | Seal, Door | ||||
7 | 308306 | Pushnut | ||||
8 | 327890 | Hinge (R.H.) | ||||
8 | 327891 | Hinge (L.H.) | ||||
8 | 343641 | VIS | WP681414 | Appeler pour commander | ||
9 | 3172547 | Oven (30`` Pyro) | 814160 | |||
9 | 311056 | Screw (2) | ||||
9 | 3150537 | Screw | ||||
10 | 3150505 | DOUILLE ASS | W11594027 | Appeler pour commander | ||
11 | 311255 | Bulb, Oven Light | 8009, 40A15F, WG03F02051 | |||
15 | 311220 | Bracket, Oven (Mounting) | ||||
15 | 343641 | VIS | WP681414 | Appeler pour commander | ||
16 | 307961 | Vent, Oven | ||||
16 | 307748 | Screw, 10A x 1/2 (2) | ||||
17 | 314209 | Switch, Broil | ||||
18 | 314210 | Switch, Bake | ||||
19 | 329710 | Channel, Arm (2) | ||||
20 | 307986 | GOUPILLE | WP307986 | Appeler pour commander | ||
21 | 307594 | ANNEAU-E | WP98392 | Appeler pour commander | ||
22 | 308126 | SPRNG-DOOR | WP308126 | Appeler pour commander | ||
23 | 308125 | ANCHOR | WP308125 | Appeler pour commander | ||
24 | 313196 | Support, L.H. Channel | ||||
24 | 313197 | Support, R.H. Channel | ||||
24 | 343641 | VIS | WP681414 | Appeler pour commander | ||
25 | 310345 | Switch, Door | ||||
26 | 312804 | Block, Balance | ||||
26 | 340184 | VIS | Appeler pour commander | |||
27 | 313382 | ATTACHE | 98005642 | Appeler pour commander | ||
29 | 309111 | Snubber, Door (2) | ||||
30 | 3148603 | ANCHOR-TIP | 8273888A | Appeler pour commander | ||
30 | 3148604 | screw (2) | ||||
31 | 3148605 | Anchor, Plastic | ||||
31 | 3169093 | Insulation, Wrap | ||||
31 | 3169094 | Insulation, Oven BAck |
*Le prix peut changer sans préavis
