Brand: Electrolux
Model: CGMV174KFB - MICROWAVE

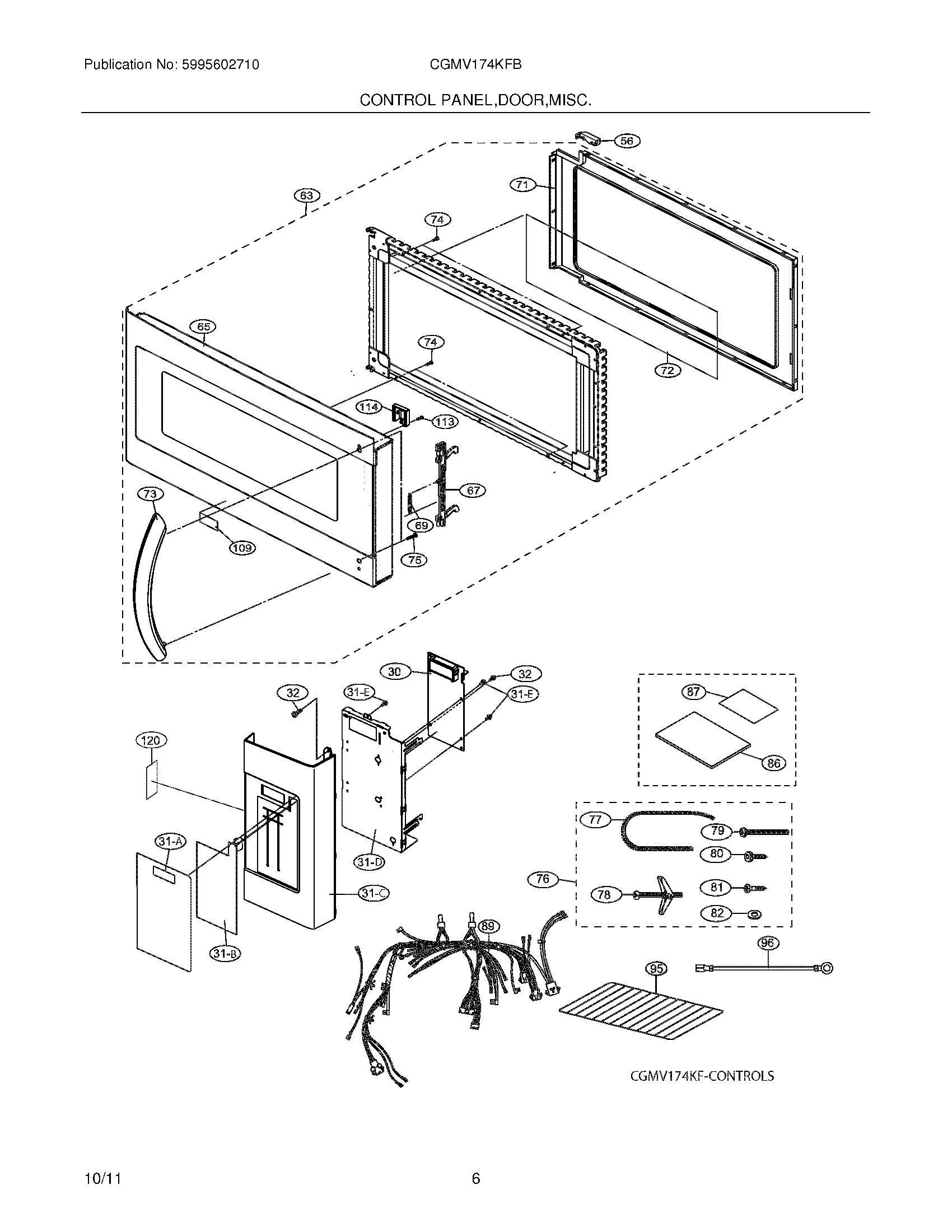

05 - CONTROL PANEL,DOOR,MISCELLANEOUS
- 01 - COVER
- 03 - OVEN,CABINET
- 05 - CONTROL PANEL,DOOR,MISCELLANEOUS
- 06 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 30 | 5304481625 | BOARD, PRINTED CIRCUIT CON | $274.65 | |||
| 31A | 5304473811 | Overlay,touch control ,black | $0.00 | |||
| 31B | 5304473813 | Touch Control,key pad | $0.00 | |||
| 31C | 5304473818 | COVER,CONTROL PANEL ,STAINLESS | $181.80 | |||
| 31D | 5304473819 | Panel,control mount | $0.00 | |||
| 31E | 5304456930 | SCREW,3 MM X 10 MM | $13.05 | |||
| 32 | 5304467710 | SCREW 3 MM X 8 MM | $14.50 | |||
| 56 | 5304468199 | Door Stop | $0.00 | |||
| 63 | 5304473842 | DOOR ASSY,STAINLESS ,W/HANDLE, | $587.10 | |||
| 65 | 5304473843 | FRAME,DOOR ,STAINLESS | $280.65 | |||
| 67 | 5304440314 | LATCH,DOOR | $52.25 | |||
| 69 | 5304440316 | SPRING,DOOR LATCH | $62.40 | |||
| 71 | 5304440320 | Frame,choke cover ,inner door | 5304485842 | $0.00 | ||
| 72 | 5304468205 | Seal,door ,film | $0.00 | |||
| 73 | 5304471830 | Handle,door ,stainless ,Gallery | $0.00 | |||
| 74 | 5304451517 | SCREW 4 MM X 8 MM | $17.40 | |||
| 75 | 5304468931 | Screw,4 mm x 15 mm | $0.00 | |||
| 76 | 5304467765 | HARDWARE,INSTALLATION,KIT | 5304464349 | $57.35 | ||
| 77 | 5303318761 | Sleeve,power cord ,grommet | 5303319605 | $0.00 | ||
| 78 | 5303318762 | Screw,toggle | $0.00 | |||
| 79 | 5304453895 | SCREW | $16.70 | |||
| 80 | 5304451552 | SCREW,4 MM X 8 MM,SILVER | 5304502863 | $10.90 | ||
| 81 | 5304453723 | Screw,5mm x 35mm | $0.00 | |||
| 82 | 5304453724 | Washer | $0.00 | |||
| 86 | 5304468216 | Template,installation ,top | $0.00 | |||
| 87 | 5304468217 | TEMPLATE,INSTALLATION,WALL | 5304481351 | $0.00 | ||
| 89 | 5304474568 | Wiring Harness,main | $0.00 | |||
| 95 | 5304440338 | Rack,microwave oven ,wire | $0.00 | |||
| 96 | 5304467828 | Wire,ground | $0.00 | |||
| 109 | 5304471837 | Badge,nameplate ,Gallery | $0.00 | |||
| 113 | 5304461192 | Screw,3mm x 8mm ,(12) | 5304480602 | $0.00 | ||
| 114 | 5304473840 | Cover,screw ,black | $0.00 | |||
| 120 | 5304468232 | Label,User Caution | $0.00 |
*The price can change whitout warning
