Brand: Electrolux
Model: CGMV174KFB - MICROWAVE

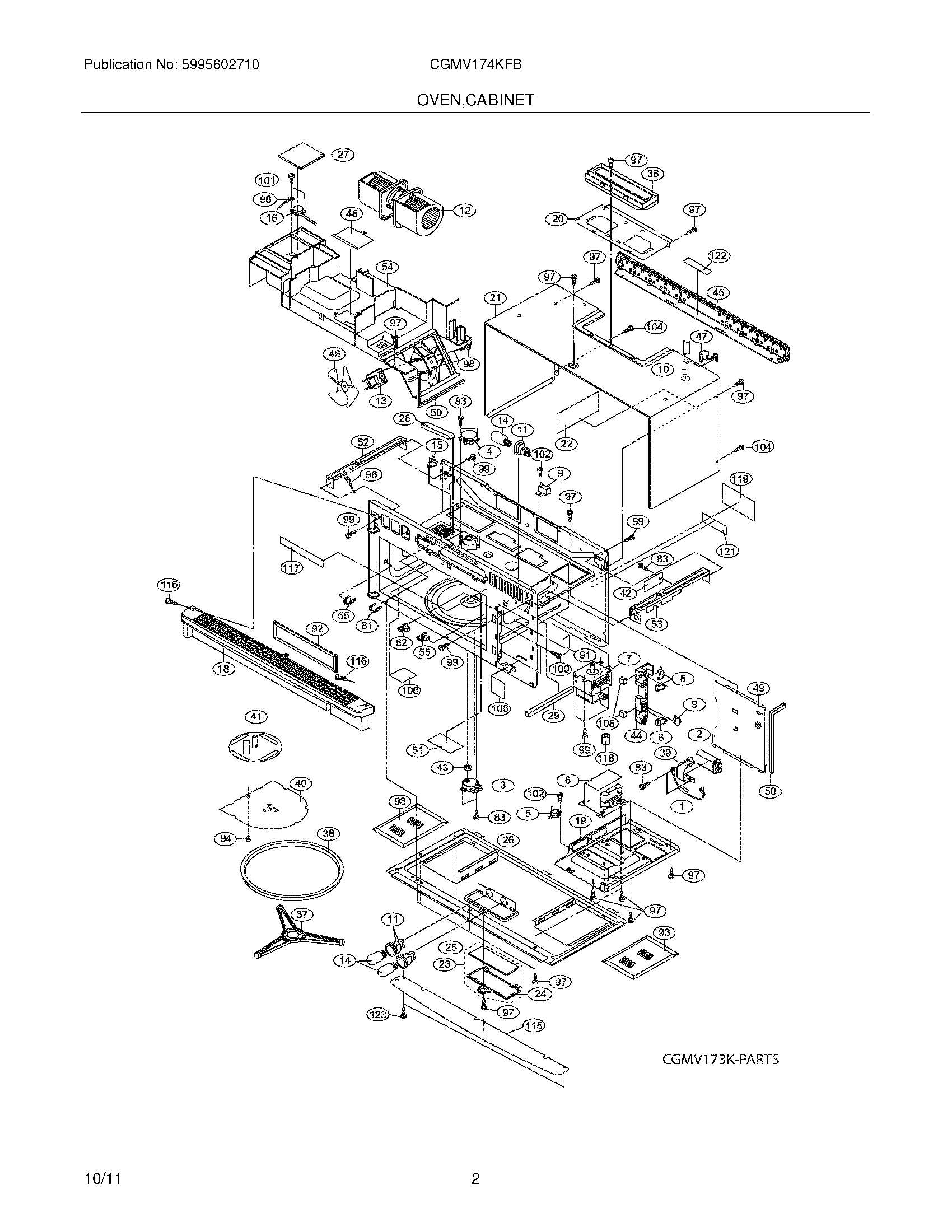

03 - OVEN,CABINET
- 01 - COVER
- 03 - OVEN,CABINET
- 05 - CONTROL PANEL,DOOR,MISCELLANEOUS
- 06 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 5304467670 | RECTIFIER, HIGH VOLTAGE | $55.90 | |||
| 2 | 5304468223 | Capacitor | $0.00 | |||
| 3 | 5304440021 | MOTOR,TURNTABLE | $82.00 | |||
| 4 | 5304440022 | Motor,stirrer fan | $0.00 | |||
| 5 | 5304440023 | THERMAL SWITCH, N.O.60 | $59.50 | |||
| 6 | 5304468156 | Transformer,power | $0.00 | |||
| 7 | 5304463439 | MAGNETRON | $264.15 | |||
| 8 | 5304440026 | SWITCH,INTERLOCK,DOOR SENSOR | 5304493153 | $50.80 | ||
| 9 | 5304468224 | SWITCH,MONITOR W/CERAMIC | $83.45 | |||
| 10 | 5304440028 | POWER CORD,ELECTRIC | $121.90 | |||
| 11 | 5304461117 | SOCKET-LIGHT/LAMP | 5303319561 | $61.70 | ||
| 12 | 5304440029 | Motor,hood fan | $0.00 | |||
| 13 | 5304448490 | MOTOR,COOLING FAN | 5304493152 | $85.65 | ||
| 14 | 5304440031 | LAMP,INCANDESCET 20W | $13.05 | |||
| 15 | 5304440032 | Thermal Cutout,oven cavity | 5304502765 | $0.00 | ||
| 16 | 5304440033 | Sensor,humidity ,cook control | $0.00 | |||
| 18 | 5304473796 | GRILLE,EXHAUST ,STAINLESS | $268.50 | |||
| 19 | 5304473797 | Plate,base ,right | $0.00 | |||
| 20 | 5304468162 | Plate,rear stay | $0.00 | |||
| 21 | 5304468164 | Cabinet,outer casing ,black | $0.00 | |||
| 22 | 5304474569 | Wiring Diagram,schematic ,label | $0.00 | |||
| 23 | 5303319573 | COVER ASSY | $111.75 | |||
| 24 | 5303319574 | Frame,lens holder ,black | $0.00 | |||
| 25 | 5303319575 | LITE COVER | $111.05 | |||
| 26 | 5304473800 | Cover,unit base ,black | 5304485417 | $0.00 | ||
| 27 | 5304468170 | Cushion,hood duct | $0.00 | |||
| 28 | 5304468173 | Cushion,top panel ,rubber | $0.00 | |||
| 29 | 5304451500 | Cushion,magnetron | $0.00 | |||
| 36 | 5304464343 | DAMPER ASSEMBLY,EXHAUST | $0.00 | |||
| 37 | 5304481789 | Support Assy,turntable ,roller | $0.00 | |||
| 38 | 5304440285 | TRAY,TURNTABLE,GLASS | $82.75 | |||
| 39 | 5304468174 | Retainer,capacitor strap | $0.00 | |||
| 40 | 5304468175 | COVER,STIRRER FAN | $51.00 | |||
| 41 | 5304481790 | Stirrer Assembly | $0.00 | |||
| 42 | 5303322968 | FILTER,NOISE,ELECTRONIC | 5304493151 | $54.45 | ||
| 43 | 5304467718 | BUSHING MOTOR SHAFT TURNTABLE | $19.60 | |||
| 44 | 5304440289 | HOOK,LATCH | $97.25 | |||
| 45 | 5304468135 | REAR MOUNTING PLATE BRACKET | $102.35 | |||
| 46 | 5304468177 | Fan Blade,mag cooling fan | $0.00 | |||
| 47 | 5304467721 | Bushing,grommet ,power cord | $0.00 | |||
| 48 | 5304468178 | Cover,oven lamp | $0.00 | |||
| 49 | 5304468179 | Duct,hood intake ,right side | $0.00 | |||
| 50 | 5304468180 | Cushion,intake duct ,seal | $0.00 | |||
| 51 | 5304467727 | LENS,LAMP FILTER | $5.40 | |||
| 52 | 5304481791 | Support,chassis ,left side | $0.00 | |||
| 53 | 5304481792 | Support,chassis ,right side | $0.00 | |||
| 54 | 5304468183 | Duct,exhaust hood | $0.00 | |||
| 55 | 5304467733 | Support,rack ,front | $0.00 | |||
| 61 | 5304467762 | SUPPORT RACK LEFT REAR | $14.65 | |||
| 62 | 5304467763 | Support,rack ,right rear | $0.00 | |||
| 83 | 5304451550 | SCREW 4 MM X 8 MM | $12.35 | |||
| 91 | 5304468227 | Label,Caution-monitor | $0.00 | |||
| 92 | 5304440335 | CARBON FILTER, FAN I | $51.55 | |||
| 93 | 5303319568 | FILTER - GREASE | $37.75 | |||
| 94 | 5304467773 | CLIP,CANOE TYPE,STIRRER COVER | $55.90 | |||
| 96 | 5304467828 | Wire,ground | $0.00 | |||
| 97 | 5304451552 | SCREW,4 MM X 8 MM,SILVER | 5304502863 | $10.90 | ||
| 97 | 5304467777 | SCREW 4 MM X 8 MM BLACK | $16.70 | |||
| 98 | 5304462315 | SCREW, 4 MM X 12 MM, GROUND | $13.80 | |||
| 99 | 5304467780 | SCREW 4 MM X 8 MM TAP TIGHT | $13.80 | |||
| 100 | 5303319641 | SCREW DOOR LATCH UPR HINGE | $13.05 | |||
| 101 | 5304467778 | Screw,3 mm x 8 mm | $0.00 | |||
| 102 | 5304467781 | Screw,3 mm x 6 mm | $0.00 | |||
| 104 | 5304451557 | Screw,4 mm x 12 mm | 5304454541 | $0.00 | ||
| 106 | 5304468226 | Label,Caution-DHHS | $0.00 | |||
| 108 | 5304467769 | Cushion,latch hook ,pad | $0.00 | |||
| 115 | 5304473803 | Deflector,black | $0.00 | |||
| 116 | 5304467710 | SCREW 3 MM X 8 MM | $14.50 | |||
| 117 | 5304473805 | Label,menu | $0.00 | |||
| 118 | 5304468222 | Clamp,ferrite | $0.00 | |||
| 119 | 5304468230 | LABEL HWC CAUTION | $3.65 | |||
| 121 | 5304468229 | LABEL GROUND-CAUTION | $3.65 | |||
| 122 | 5304468231 | Label,installation ,caution | $0.00 | |||
| 123 | 5304474834 | Screw,4 mm x 10 mm ,black | $0.00 |
*The price can change whitout warning
