Brand: Electrolux
Model: BTF1240ES1 - BEAUMARK/WASHER

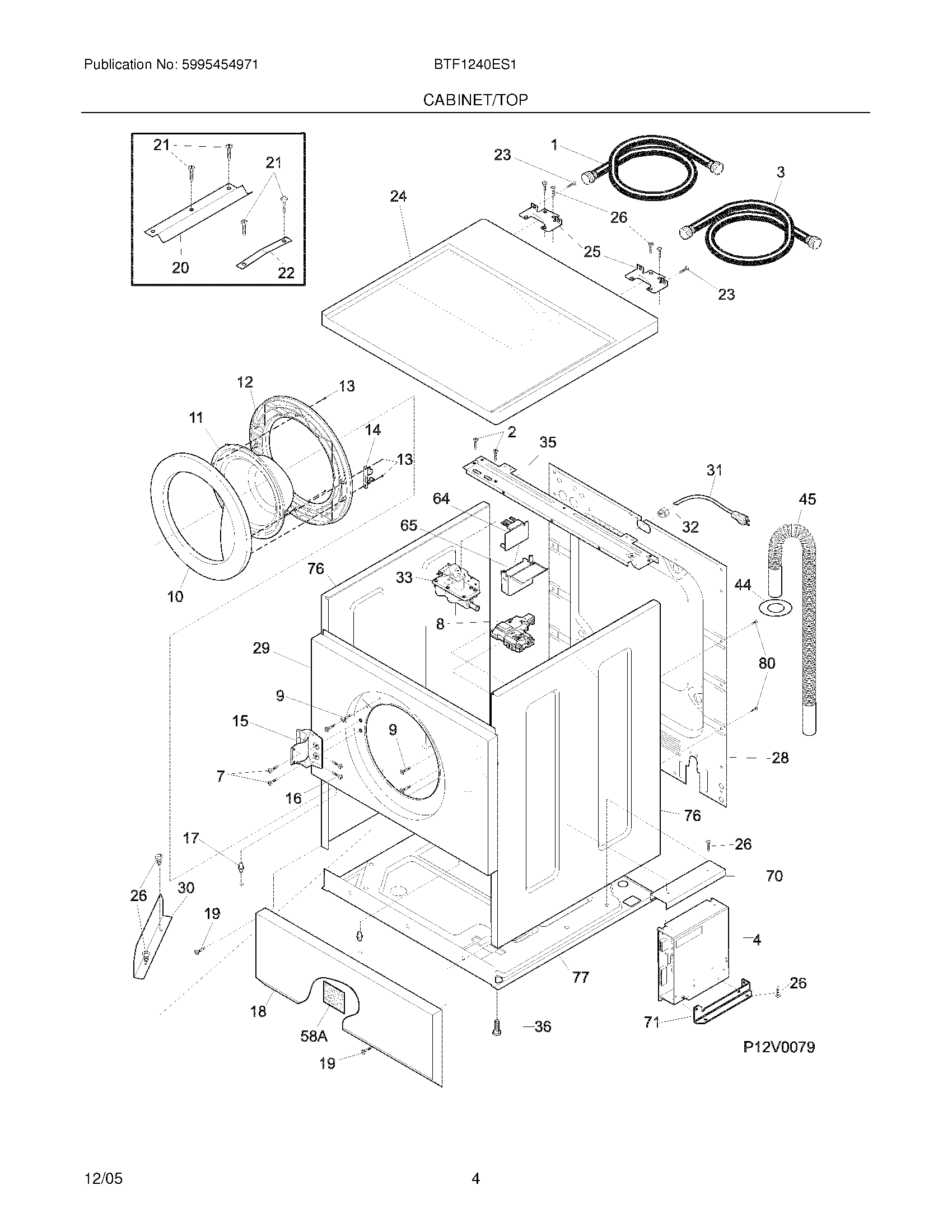

05 - CABINET/TOP
- 01 - COVER
- 03 - CONTROL PANEL
- 05 - CABINET/TOP
- 07 - MOTOR/TUB
- 08 - WIRING DIAGRAM
- 09 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 131279602 | Hose,water inlet ,cold | 5303912532, HK5, WG04A01118 | Call to order | ||
| 2 | 131168200 | SCREW | $14.50 | |||
| 3 | 131279603 | Hose,water inlet ,hot | 5303912532, HK5, WG04A01118 | Call to order | ||
| 4 | 134149200 | Controller Assy,speed ,w/base & shield | $0.00 | |||
| 7 | 131205300 | SCREW | $12.10 | |||
| 8 | 131763200 | Door Lock/Switch Assy | 131763202, 131763256 | $0.00 | ||
| 9 | 131303300 | SCREW - VANE | 131302800 | $13.80 | ||
| 10 | 131278700 | Frame,outer door ,white | WG04L02767 | $0.00 | ||
| 11 | 131278800 | Panel,door glass | $0.00 | |||
| 12 | 131278900 | Frame,inner door ,white | 134426500, WG04A01440 | $0.00 | ||
| 13 | 131302901 | SCREW, 10 X 16 X .75 | $5.10 | |||
| 14 | 131763310 | STRIKER,DOOR/LOCK/SW | $14.50 | |||
| 15 | 134264600 | HINGE,DOOR | $57.05 | |||
| 16 | 131696300 | SCREW | $10.20 | |||
| 17 | 131346400 | Pin,panel locator | $0.00 | |||
| 18 | 131279300 | Panel,Service ,white ,kick plate | $0.00 | |||
| 19 | 131358400 | SCREW | $8.25 | |||
| 20 | 131460900 | BRACKET - TOP FRONT | $49.95 | |||
| 21 | 131243700 | TAPPING SCREW - #8 .375 | $2.20 | |||
| 22 | 131279500 | Retainer,spring steel | $0.00 | |||
| 23 | 131243800 | SCREW | $0.00 | |||
| 24 | 134086842 | Panel,white ,top | $0.00 | |||
| 25 | 131668200 | Bracket,top panel mtg. | WG04A00037 | $0.00 | ||
| 26 | 134178901 | SCREW,8-18AB X 0.455 | WG04A01528 | $0.00 | ||
| 28 | 131978500 | PANEL-BACK | WG04L02417 | $0.00 | ||
| 29 | 131752030 | Panel,cabinet front ,white | $0.00 | |||
| 30 | 131859600 | SHIELD-OVERFLOW | WG04L02859 | $0.00 | ||
| 31 | 134501000 | Power Cord,electric svce | WG04F06366, 5304505407 | $0.00 | ||
| 32 | 5303209428 | BUSHING - CORD | $17.40 | |||
| 33 | 5303207418 | KIT,WATER - VALVE | 134190200, WG04A00115 | $156.75 | ||
| 35 | 131732902 | Bracket,reinforcement ,top rear | $0.00 | |||
| 36 | 131841600 | PAD | 5304463780 | $67.50 | ||
| 44 | 131707800 | RING-DRAIN HOSE | $45.40 | |||
| 45 | 134049200 | HOSE-DRAIN | 134592700, WW03F00050 | $91.45 | ||
| 58A | 131744202 | Damper,vibration | $0.00 | |||
| 64 | 134226600 | Control Board,temperature ,automatic | WG04F07563 | $0.00 | ||
| 65 | 131894600 | Housing,temp cont board | $0.00 | |||
| 70 | 134048600 | Shield,drip protector | $0.00 | |||
| 71 | 134048400 | Base,controller mtg | $0.00 | |||
| 76 | 134390701 | Panel,side ,white ,RS/LS ,(2) | $0.00 | |||
| 77 | 131458240 | BASE PLATE | WG04L02858 | $0.00 | ||
| 80 | 134547800 | SCREW | 131168200 | $14.50 | ||
| NI | 5303937142 | BRACE - SHIPPING KIT | $236.60 |
*The price can change whitout warning
