Brand: Electrolux
Model: BTF1240ES1 - BEAUMARK/WASHER

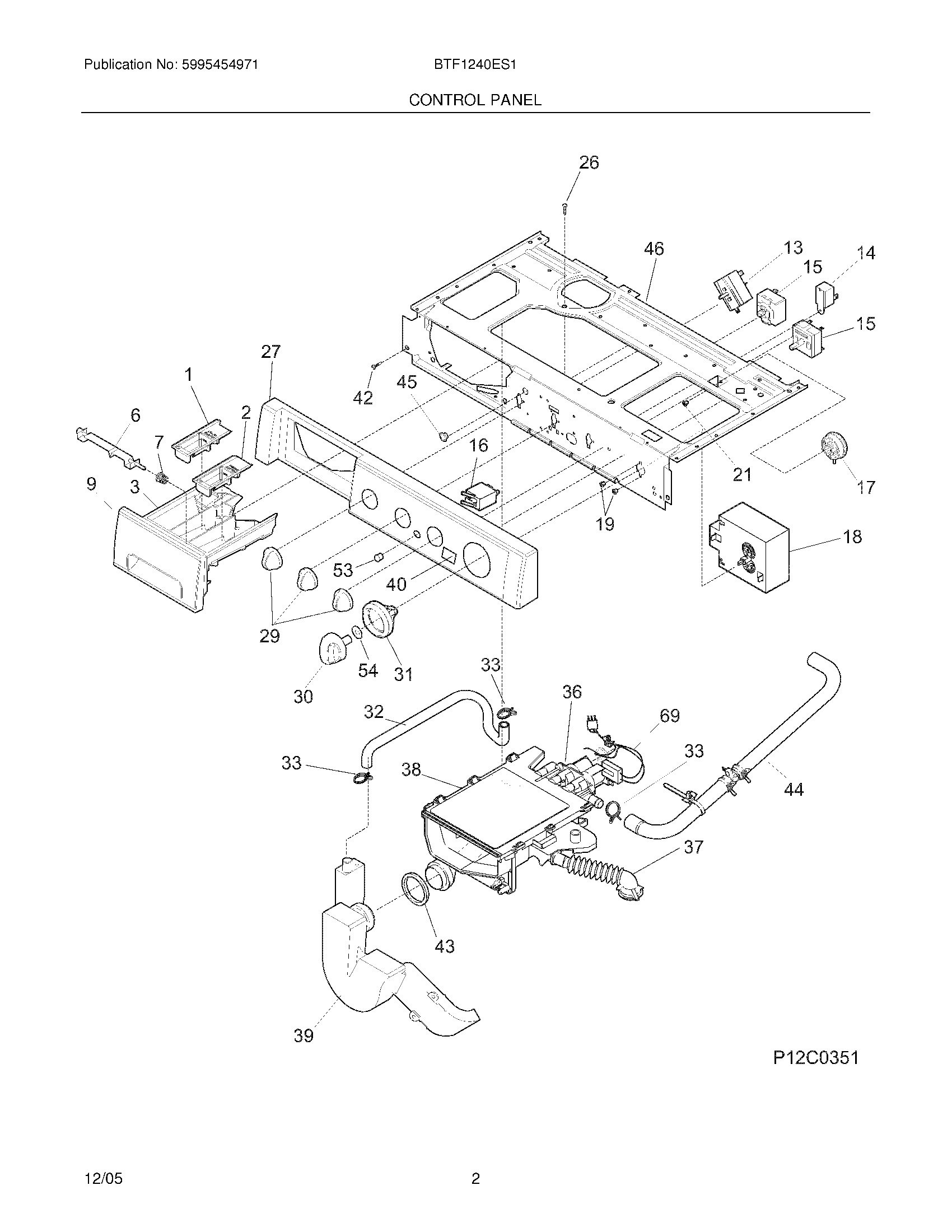

03 - CONTROL PANEL
- 01 - COVER
- 03 - CONTROL PANEL
- 05 - CABINET/TOP
- 07 - MOTOR/TUB
- 08 - WIRING DIAGRAM
- 09 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 131272100 | COVER-BLEACH | $0.00 | |||
| 2 | 131272000 | COVER-SOFTENER | $0.00 | |||
| 3 | 131271910 | DRAWER | $52.15 | |||
| 6 | 131374500 | Latch,disp drawer hdl | $0.00 | |||
| 7 | 131427500 | SPRING | $0.00 | |||
| 9 | 131691263 | Handle,disp drawer ,w/trim & tape | $0.00 | |||
| 13 | 131891800 | Switch,auto temp ,4 position | 134401800 | $0.00 | ||
| 14 | 131724500 | BUZZER | $0.00 | |||
| 15 | 134126800 | Switch,option selector ,2 position | WG04F05690, 134892900 | $0.00 | ||
| 16 | 131724700 | Lamp,status light | $0.00 | |||
| 17 | 134431101 | Switch,pressure | $0.00 | |||
| 18 | 134014700 | Timer,4-off | WG04F04936 | $0.00 | ||
| 19 | 131243800 | SCREW | $0.00 | |||
| 21 | 131243700 | TAPPING SCREW - #8 .375 | $2.20 | |||
| 26 | 131823400 | Screw,8-18 x 2.00 | $0.00 | |||
| 27 | 131887287 | Console,frame/trim assy | $0.00 | |||
| 29 | 134042700 | Knob,rotary ,white | WG04F05138 | $0.00 | ||
| 30 | 134042400 | Knob,timer ,white | WG04L02383, 134191800 | $0.00 | ||
| 31 | 131853900 | POINTER-TIMER WHT/DRK GRAY IND | $96.90 | |||
| 32 | 131786100 | Hose,siphon/valve | $0.00 | |||
| 33 | 131306216 | CLAMP | 134737300 | $19.60 | ||
| 36 | 131974700 | VALVE SEAL ASSY,DISPENSER | $104.50 | |||
| 37 | 131271600 | HOSE - TUB | $92.15 | |||
| 38 | 131803710 | Dispenser Assy | $0.00 | |||
| 39 | 131863300 | SIPHON | $0.00 | |||
| NI | 131307900 | CLAMP | $10.45 | |||
| 40 | 134040800 | SWITCH | $67.50 | |||
| 42 | 131168200 | SCREW | $14.50 | |||
| 43 | 131749200 | GASKET SEAL | $21.50 | |||
| 44 | 131899800 | Thermistor,w/hose & clamp | 131899810 | $0.00 | ||
| 45 | 5303321107 | Bushing,idler | WG04A01890 | $0.00 | ||
| 46 | 134191412 | Panel,control mtg. ,wing bend | WG04F05149 | $0.00 | ||
| NI | 131931201 | Dampener,vibration ,3.5 x 2 x 2 in. ,foam | WG04F06351 | $0.00 | ||
| 53 | 131724800 | Lens,status light ,clear | $0.00 | |||
| 54 | 5308015493 | SPACER | $0.00 | |||
| 69 | 134565500 | Wiring Harness,main | $0.00 |
*The price can change whitout warning
