Brand: Electrolux

Model: FGHN2866PF1 - REFRIGERATOR

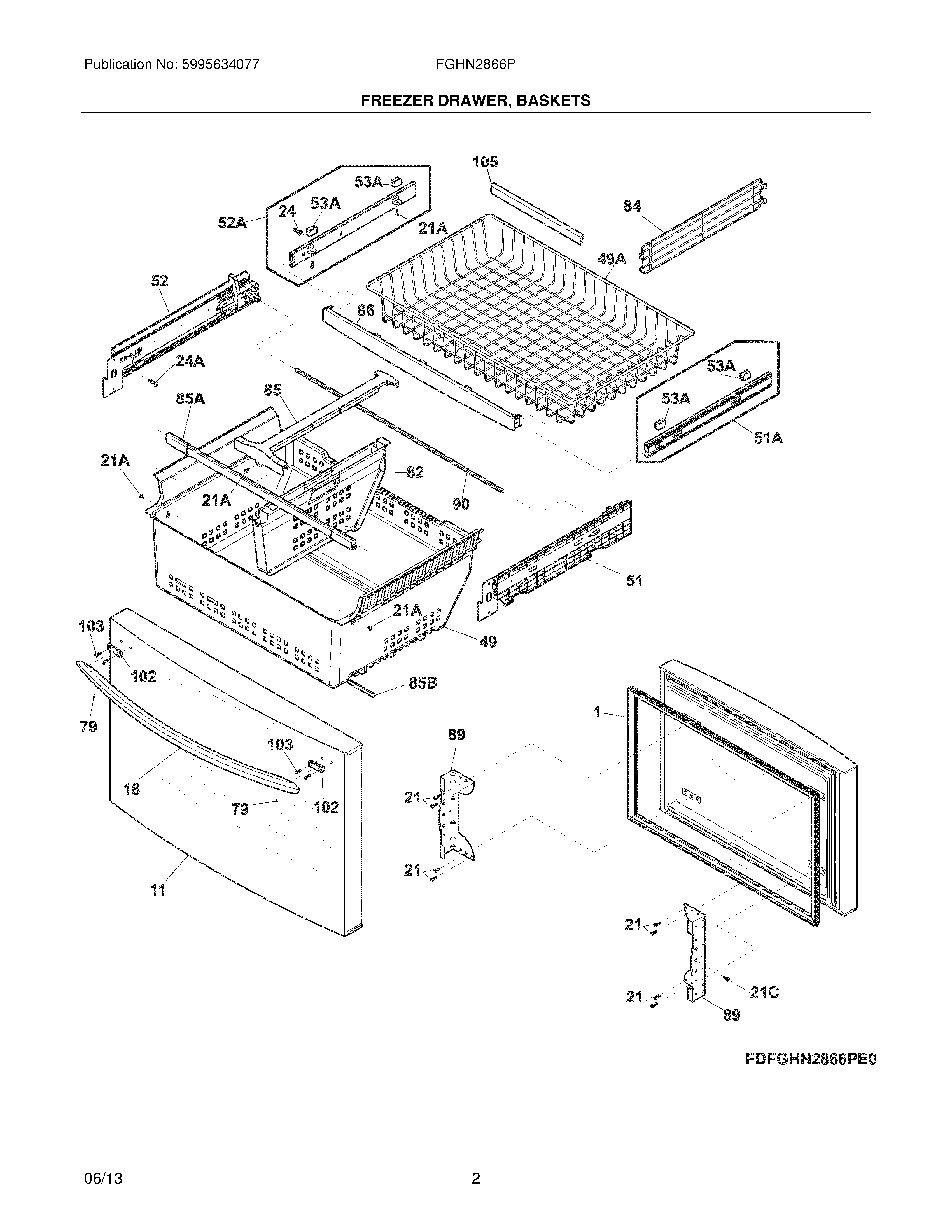

03 - FREEZER DRAWER, BASKETS

FGHN2866PF1
Plan number Part Number Description Replacement Price
1 241778308 GASKET,FREEZER DRAWER,GRAY 5304501270   $203.20
11 241987921 DOOR COMPLETE FREEZER SS   $546.95
18 242029401 DOOR, HANDLE   $203.20
NI 241601001 HEXAGONAL KEY 5304467131   $23.25
21 241690602 SCREW   $10.90
21A 241953902 SCREW 8 18 X .380   $17.40
21C 241899703 SCREW,TRUSS HEAD,#10-32 X 1/4   $15.25
24 240383406 SCREW TRUSS HD QUAD 5304515677   $8.70
24A 240383412 SCREW,TRUSS HD QUAD,#10-15   $11.60
49 242130701 LOWER BASKET KIT 5303918736   $239.50
49A 241780810 BASKET,FREEZER,UPPER   $231.50
51 242130514 SD RH SLIDE FOR WIRE BASKET 5303918690   $0.00
NI 242039702 SCREW   $4.35
51A 241894223 SLIDE ASSY,BASKET,RH,FREEZER   $135.70
51A 242039701 SCREW   $13.80
52 242130513 SD LH SLIDE FOR WIRE BASKET 5303918689   $0.00
52A 241894224 SLIDE ASSY,BASKET,LH,FREEZER   $135.00
53A 242216301 RETAINER, BASKET SET OF FOUR 5303918801   $12.35
79 218755407 SCREW-SET 218755402   $6.55
82 242131301 DIVIDER,BASKET,LOWER 5304503705   $121.20
84 241780904 DIVIDER,BASKET   $68.20
85 242130901 DIVIDER,BASKET,LOWER   $87.80
NI 242139201 SPRING-COMPRESSION,DIVIDER,LOW   $18.85
85A 242139301 SUPPORT-BEAM,DIVIDER,LOWER BAS   $75.50
85B 241872203 SUPPORT-BEAM,LOWER BASKET   $51.55
86 241807605 BAR 5304507340   $45.70
NI 242011101 PIN LOCK   $14.50
89 241972302 BRACKET-FREEZER DRAWER   $104.50
NI 242147601 PLATE,TAPPING 5304497384   $15.95
90 242136901 BALANCE BAR   $36.30
102 242029301 BLOCK   $25.40
103 242077302 SCREW,INCLUDES BOLTS   $8.00
105 242116801 TRIM,BASKET   $18.15
NI 241953901 SCREW,CONTROL MTG 5304453707   $15.25
NI 242015001 SCREW 10 8 19 X 1/2   $16.70
NI 242146401 SCREW,SER HEX WASH HD,1/4-20 X   $14.50
*The price can change whitout warning
