Brand: Electrolux

Model: FGHN2866PF1 - REFRIGERATOR

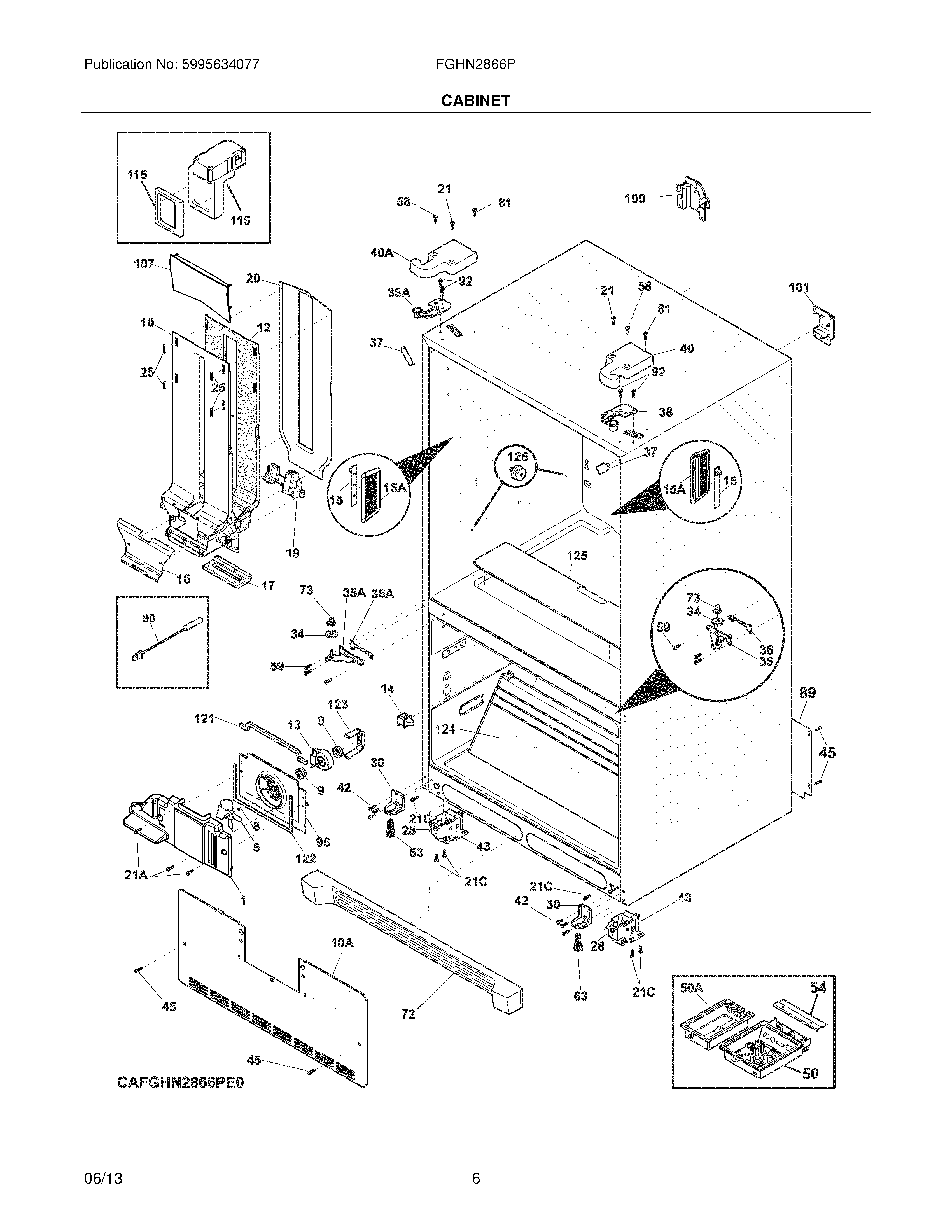

07 - CABINET

FGHN2866PF1
Plan number Part Number Description Replacement Price
1 242099402 COVER,EVAPORATOR FAN 5304503130   $77.65
NI 241860111 GASKET-EVAP,BOTTOM   $12.35
NI 241860112 GASKET-EVAP,UPPER   $7.25
5 5308000010 FAN PLASTIC EVAP.   $58.80
8 215474201 WASHER NYLON EVAP FAN SHAFT   $18.85
9 241518301 BUSHING,MOTOR MOUNTING   $68.20
10 242072002 COVER   $135.70
NI 242061604 Harness-wiring,air duct   $0.00
NI 242004802 INSULATION-AIR DUCT,FOAM STRIP   $5.80
10A 241860402 COVER-EVAP COIL,LOWER   $0.00
10A 241557601 PLUG-HOLE,ICEMAKER 242193602   $13.80
10A 241860104 GASKET COIL COVER   $30.50
10A 241860105 GASKET COIL COVER   $17.40
12 242072402 INSULATION-AIR DUCT   $34.85
13 241509402 MOTOR FAN OF EVAPORATOR   $173.45
14 242060202 SWITCH,LIGHT,DOOR   $41.35
15 242196201 LIGHT BOARD,3 LED CLUSTER 242196204   $60.95
15A 242202701 LENS,3 LED CLUSTER   $31.20
16 242072101 COVER   $49.35
NI 240383407 SCREW   $13.05
NI 241953904 SCREW 8 18   $10.90
NI 242072501 INSULATION   $18.85
17 242071901 GASKET 5303918479   $44.25
19 242072601 SUPPORT   $45.70
20 242072201 COVER   $99.45
21 241732101 SCREW   $15.95
21A 242015001 SCREW 10 8 19 X 1/2   $16.70
21C 218252201 SCREW   $14.50
25 241949502 CLIP,AIR VEN   $19.60
28 240335502 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special 240335006, 5304499445, WG03L04381   $0.00
30 241778701 BRACKET ANTI TIP   $25.40
34 241868301 WASHER   $0.00
35 241763005 LOWER HINGE,ZINC,RIGHT 241767211   $98.00
35A 241763006 HINGE-LOWER,ZINC,LH 241767212   $99.45
36 241868201 SPACER DOOR LOWER RH   $50.80
36A 241868202 SPACER DOOR LOWER LH   $22.50
37 240337616 TRIM,CABINET CORNER,GRAY 242161206   $10.15
38 241761301 BRACKET,UPPER HINGE,RIGHT   $67.50
38A 241761302 BRACKET,UPPER HINGE,LEFT   $66.05
40 242099809 COVER-UPPER HINGE,GRAY,LH   $73.30
40A 242099810 COVER-UPPER HINGE,GRAY,LH   $60.95
NI 218515401 CLIP, GRILLE   $18.15
42 240578902 SCREW-HINGE   $14.50
43 240335006 Roller Assy,front ,(2) WG03L04381, 5304499445   $0.00
45 241500303 SCREW,HEX WASHER HEAD,8-18AB X   $4.35
50 241996363 PC BOARD   $314.95
NI 242104901 HARNESS,WIRING   $121.90
NI 241810104 SEAL   $0.00
50A 241891609 POWER BOARD,LED 241891610   $259.10
50A 241852501 CLIP,WIRING HARNESS   $15.95
54 241532401 CHANNEL   $31.20
58 241853202 SCREW   $10.15
59 240442706 SCREW #10-32 X 3/4 WHITE 240442708   $8.00
63 216396900 SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WG03F04389   $0.00
72 242054804 GRILL   $85.65
73 242075701 CAM,LOWER HINGE   $21.80
81 242025601 SCREW HEX HEAD 10 32 X 3/8   $15.25
89 241733902 COVER   $81.30
90 240597203 SENSOR   $55.15
NI 241842301 CAP THERMISTOR   $34.85
NI 241953902 SCREW 8 18 X .380   $17.40
NI 241969001 CAP SCREW   $15.95
92 241710601 SCREW   $13.80
96 241860601 COVER,EVAPORATOR   $135.00
100 242157601 COVER,TUBING,EPS BLOCK   $11.60
101 242157801 COVER,TUBING,EPS BLOCK   $23.25
107 241963102 DUCT-AIR   $34.85
115 241518501 DAMPER 5303918899   $77.30
116 241518601 SEAL,DAMPER   $9.45
121 241860103 GASKET EVAP UPPER   $3.65
122 241860102 GASKET EVAP BOTTOM   $3.65
123 242135301 CLIP,EVAP FAN MOTOR   $8.00
124 242006902 DUCT-FRZ AIR 242006903   $60.95
125 242071201 COVER,SUMP   $117.55
126 242081301 SCREW,10-16 X 0.500 134549700, WG04A01634   $12.35
NI 240494001 Plug-button,white ,cab liner holes WG03F03412   $0.00
NI 218362501 SCREW,HEX WASHER HEAD,8-18AB X   $12.35
NI 241695904 SCREW   $0.00
NI 241953901 SCREW,CONTROL MTG 5304453707   $15.25
NI 5304455650 SCREW   $14.50
*The price can change whitout warning
