Brand: Electrolux
Model: GLRT183TDWA - REFRIGERATOR

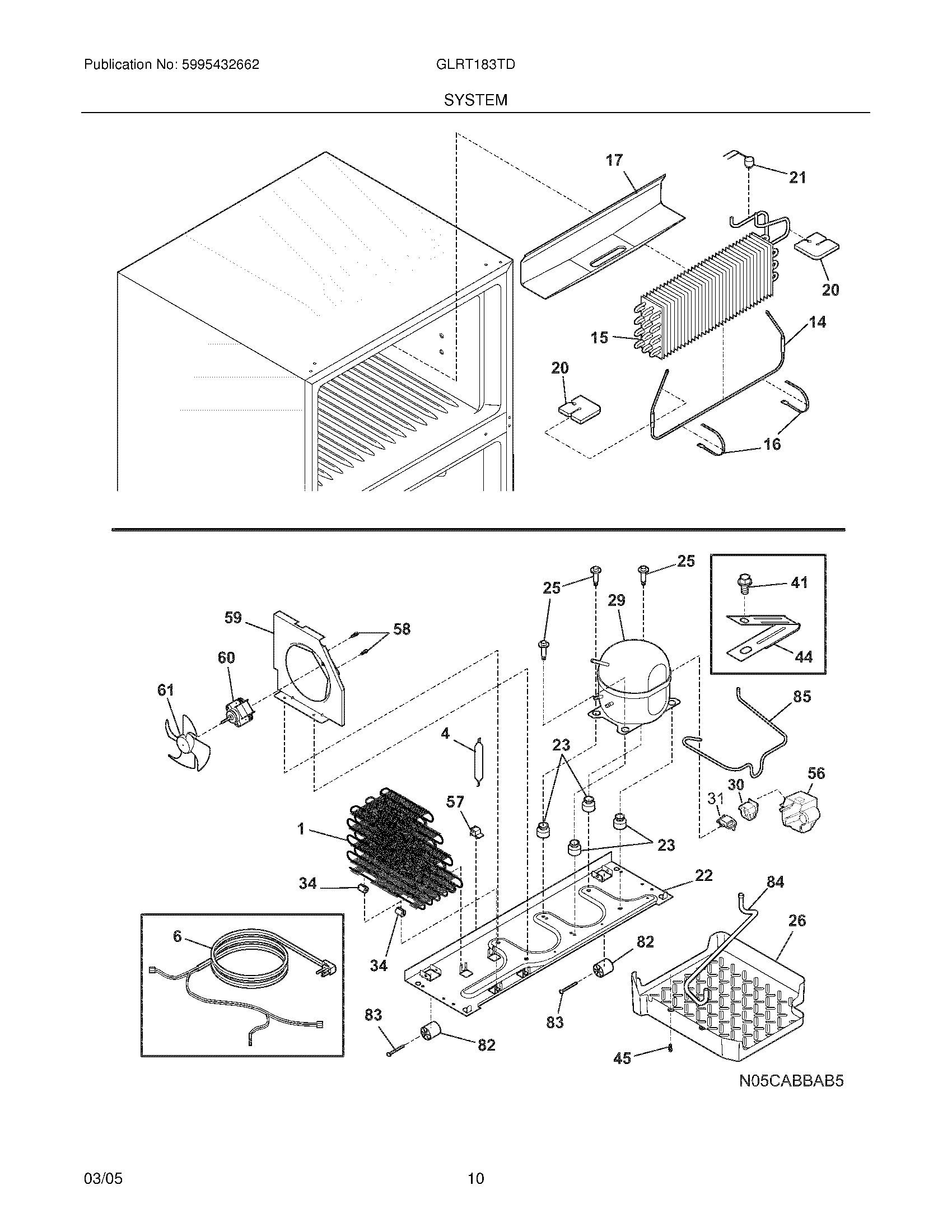

09 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 240444401 | Condenser,dynamic | WG03L02591, 5304472169 | $0.00 | ||
| 4 | 218944001 | Drier-filter,R134a System | WG03F02806, 5303305677, 60041 | |||
| 6 | 240581701 | HARNESS-WIRING,MACHINE COMPT | $0.00 | |||
| NI | 240581801 | Harness-wiring,compressor | $0.00 | |||
| NI | 240388701 | Wiring Harness,control box | WG03F02970 | $0.00 | ||
| NI | 241537701 | Wiring Harness,freezer section ,with light | $0.00 | |||
| 14 | 5303918208 | DEFROST HEATER KIT | WG03A00572 | $0.00 | ||
| 15 | 5303918274 | Evaporator Kit | WG03A00375 | $0.00 | ||
| 16 | 5308000110 | STRAP-EVAP/HEATER | $63.85 | |||
| 17 | 241551801 | DRAIN THROUGH | 241801301 | $61.70 | ||
| 20 | 241551901 | INSULATION BLOCK | 241551902 | $11.60 | ||
| 21 | 5303918202 | THERMOSTAT - DEFROST KIT | $30.50 | |||
| 22 | 241602001 | Base-compressor | 241665602 | $0.00 | ||
| NI | 218252200 | Screw,No.8 truss hd ,10-32CA x 0.500 | WG03A01971, 218252201 | $0.00 | ||
| 23 | 218513300 | GROMMET-COMPRESSOR MTG. | $43.55 | |||
| 25 | 240491501 | Screw-compressor mtg,1/4-28 x 1.16 ,shoulder,typ CF | 240491503 | $0.00 | ||
| 26 | 240332608 | DRAIN PAN | 241920605 | $55.15 | ||
| 29 | 5303918297 | COMPRESSOR,W/ELECTRICALS | 5304464034 | $0.00 | ||
| 30 | 5304433579 | RELAY | $32.65 | |||
| 31 | 5304433578 | Overload Protector | WG02F09267, 216954208 | $0.00 | ||
| 34 | 240405201 | GROMMET,CONDENSOR | $20.35 | |||
| 41 | 240433202 | SCREW | 240433204 | $1.45 | ||
| 44 | 5303001199 | CLAMP-WIRING HARNESS | $67.50 | |||
| 45 | 5308016566 | SCREW | 5304455650 | $14.50 | ||
| 56 | 240582001 | Cover-terminal | 218895701 | $0.00 | ||
| 57 | 240542601 | CLIP-WIRING HARNESS | $92.90 | |||
| 58 | 218897002 | SCREW-#8-32 X 3/8 | 240555002 | $13.80 | ||
| 59 | 5304430246 | Bracket-cond motor assy | $0.00 | |||
| NI | 240346701 | TAPE-FOAM SEAL, SHROUD | $30.50 | |||
| NI | 240359401 | SCREW-FAN,SHROUD,(2) | 240359403 | $3.65 | ||
| 60 | 240525402 | MOTOR CONDENSER FAN | 5303918774 | $177.80 | ||
| 61 | 240524101 | FAN BLADE | 240524102, WG03F02388 | $25.40 | ||
| 82 | 5304418225 | ROLLER,COMPRESSOR BASE,REAR | $49.35 | |||
| 83 | 5303316859 | RIVET | 5304455655 | $7.25 | ||
| 84 | 240500801 | LOWER DRAIN TUBE | $66.75 | |||
| 85 | 240493101 | Tube-connector,suction | $0.00 | |||
| NI | 5303918263 | HEAT EXCHANGER | $463.00 | |||
| NI | 5303918222 | HOT TUBE REPAIR KIT | $442.45 |
*The price can change whitout warning
