Brand: Electrolux
Model: GLRT183TDWA - REFRIGERATOR

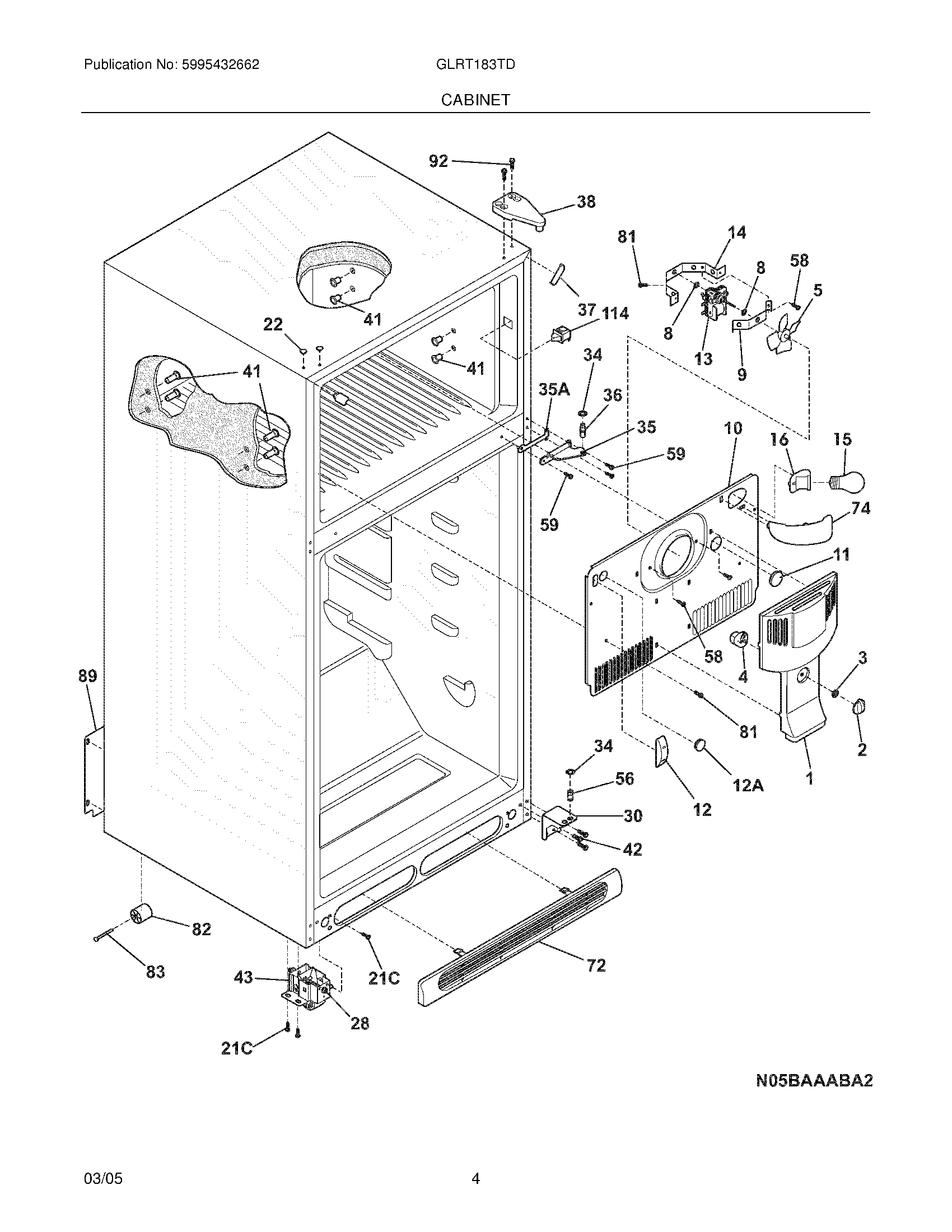

05 - CABINET
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 240355401 | COVER-FAN | WG03L02764, 241652301 | $0.00 | ||
| 2 | 240367001 | KNOB-DAMPER CONTROL | WG03L04003 | $0.00 | ||
| 3 | 5303001028 | Nut,push-on | 5303212803 | $0.00 | ||
| 4 | 241523701 | Damper-fan cover | $0.00 | |||
| 5 | 5308000010 | FAN PLASTIC EVAP. | $58.80 | |||
| 8 | 5300157666 | BUSHING | G187559 | $49.35 | ||
| 9 | 5303292396 | BRACKET,FRONT MOTOR MOUNTING | $74.05 | |||
| 10 | 240462009 | Cover-evap coil | $0.00 | |||
| NI | 240568601 | SEAL KIT | 5304434189 | $68.20 | ||
| NI | 241537701 | Wiring Harness,freezer section ,with light | $0.00 | |||
| 11 | 5303208309 | PLUG-HOLE | $43.55 | |||
| 12 | 241557601 | PLUG-HOLE,ICEMAKER | 242193602 | $13.80 | ||
| 12A | 240374401 | Plug-wtr inlet tube,round ,1`` | $0.00 | |||
| 12A | 241586701 | PLUG-FOAM-WTR-INLET,ROUND | $18.15 | |||
| 13 | 240369702 | EVAP MOTOR KIT | 5303918549 | $95.80 | ||
| NI | 215474201 | WASHER NYLON EVAP FAN SHAFT | $18.85 | |||
| NI | 218931001 | Clamp-motor wiring,nylon ,w/adhesive tape | $0.00 | |||
| 14 | 5303292397 | BRACKET & BUSHING, SUB ASMY | 240438003 | $16.70 | ||
| 15 | 241560701 | BULB,LIGHT | $45.00 | |||
| 16 | 241513901 | SOCKET-LIGHT | 218906802 | $18.15 | ||
| 21C | 218252200 | Screw,No.8 truss hd ,10-32CA x 0.500 | WG03A01971, 218252201 | $0.00 | ||
| 22 | 215774901 | PLUG BUTT./UP. HINGE HLE WHT | $17.40 | |||
| 28 | 240335501 | ROLLER ASSY,FRONT (2) | 5304499445 | $23.95 | ||
| 30 | 240314002 | SUPPORT | 240314011 | $68.20 | ||
| 34 | 240311303 | BUSHING | $10.15 | |||
| 35 | 240313802 | Bracket-ctr hinge,white | WG03A00664 | $0.00 | ||
| 35A | 240336802 | SPACER-HINGE,CENTER | $18.85 | |||
| 36 | 240516401 | PIN-CENTER HINGE,W/WASHER | 241708002, WG03A00999 | $21.80 | ||
| 37 | 241611301 | CORNER CABINET TRIM,WHITE | 5303918606 | $7.25 | ||
| 38 | 241622601 | BRACKET-UPPER HINGE | 240313703 | $30.50 | ||
| 41 | 5303001609 | SHELF GROMMET | $11.80 | |||
| NI | 5308009759 | GROMMET,SHELF MTG | 5304500407 | $6.55 | ||
| 42 | 240578901 | SCREW-HINGE | 240578902 | $14.50 | ||
| 43 | 240335003 | Roller Assy, Front - If fixed rollers w/ leveling screws order 241559601(RH) and 241559602(LH). | WG03F03496, 5304499445 | $0.00 | ||
| 56 | 240516501 | PIN LOWER HINGE | 240516502, WG03A01000 | $69.65 | ||
| 58 | 5303001343 | SCREW, HEX WASHER HEAD, 8-15A | 5304455651 | $13.80 | ||
| 59 | 240442702 | SCREW #10-32 X 3/4 WHITE | 240442708 | $8.00 | ||
| 72 | 240368205 | GRILLE/KICKPLATE - WHITE | 241839405 | $62.40 | ||
| 74 | 240354301 | LAMP COVER | 240354302 | $20.35 | ||
| 81 | 5308016566 | SCREW | 5304455650 | $14.50 | ||
| 82 | 5304418225 | ROLLER,COMPRESSOR BASE,REAR | $49.35 | |||
| 83 | 5303316859 | RIVET | 5304455655 | $7.25 | ||
| 89 | 241574607 | Cover-access,w/label | 241733907, 241733911 | $0.00 | ||
| NI | 241500301 | SCREW,HEX WASHER HEAD,8-18AB X | 241500303 | $4.35 | ||
| 92 | 241624301 | SCREW | 241710601 | $13.80 | ||
| 114 | 241554901 | SWITCH-LIGHT/LAMP | $72.60 | |||
| NI | 240479601 | PLUG BUTTON WHT | 240494001, WG03F03412 | $17.40 | ||
| NI | 5303305324 | TOUCH-UP PAINT,WHITE | 5303321319 | $13.80 |
*The price can change whitout warning
