Brand: Electrolux
Model: UL2110A0 - IMPERIAL-BROICH/FREEZER

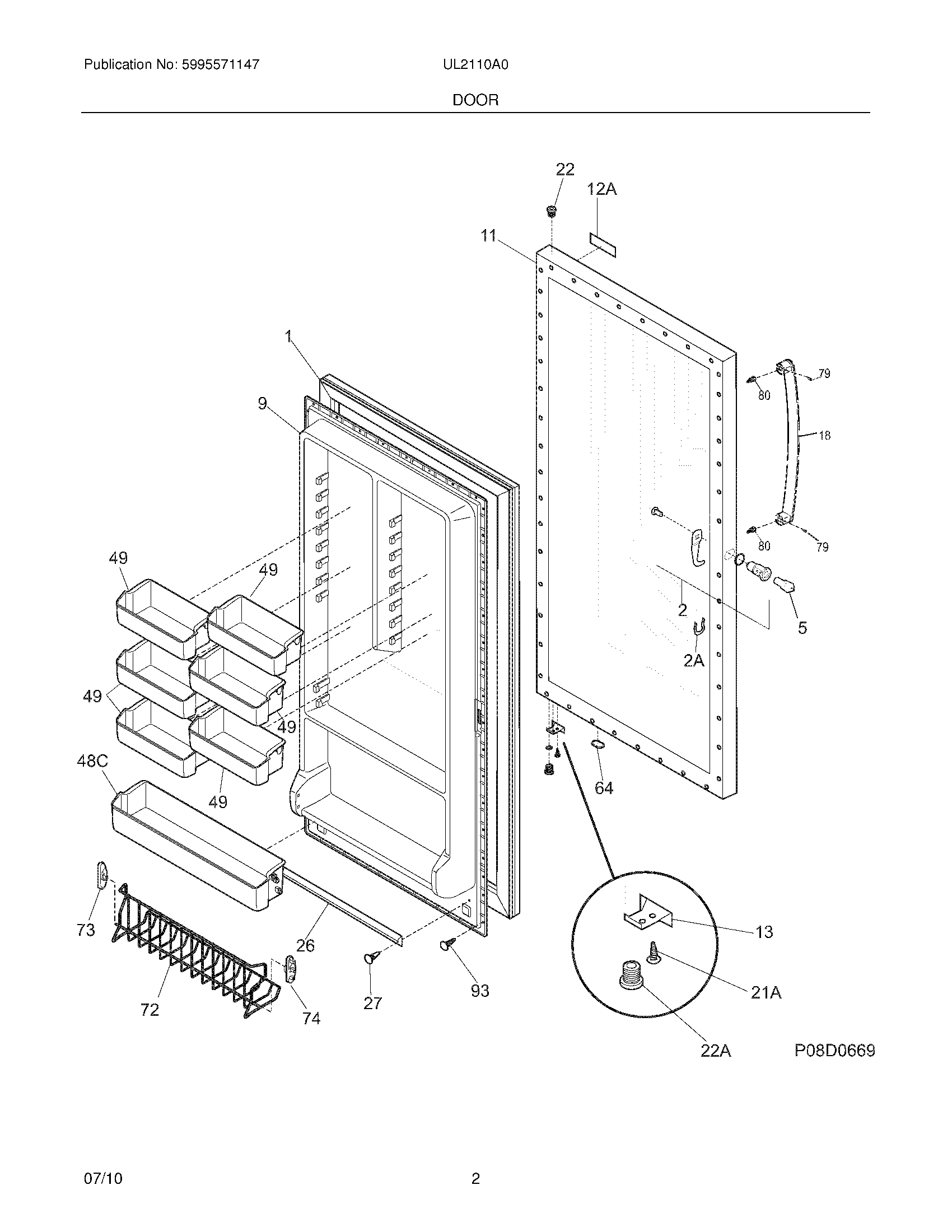

03 - DO0R
- 01 - COVER
- 03 - DO0R
- 05 - CABINET
- 07 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 216522362 | Gasket-door,white | 5304507208, 5304507199 | $0.00 | ||
| 2 | 297318600 | LOCK ASSY | $37.00 | |||
| 2A | 297213300 | Clip,spring | $0.00 | |||
| 5 | 297147700 | KEY,LOCK | $7.25 | |||
| 9 | 297185900 | PANEL-INNER DOOR,FRZR | $198.10 | |||
| 11 | 297316729 | Panel-outer door,white | $0.00 | |||
| 12A | 297013400 | Bezel,nameplate ,white | $0.00 | |||
| NI | 5303297032 | INSERT-BEZEL | $5.90 | |||
| 13 | 297257000 | DOOR STOP,CHROME,RH/LH | $16.70 | |||
| 18 | 297307070 | Handle-door,stainless ,w/end caps | $0.00 | |||
| NI | 240537301 | NUT-ANCHOR,DOOR HDL SCREW | $11.60 | |||
| 21A | 297197500 | SCREW,DOOR STOP MTG,FH38-16X.7 | $0.00 | |||
| 22 | 216970800 | Bearing,hinge w/o`ring ,top | WG03L05876, 216970802 | $0.00 | ||
| 22A | 297006800 | Bearing-hinge,btm, w/o`ring | WG03F04168 | $0.00 | ||
| 26 | 216524201 | GASKET,SECONDARY | $50.80 | |||
| 27 | 5304472186 | CLIP,PANEL MTG | $11.60 | |||
| NI | 5304406520 | CLIP,PANEL MOUNTING KIT | $46.45 | |||
| 48C | 297225600 | DOOR BIN,GALLON,FULL WIDTH | 5304510193 | $75.50 | ||
| 49 | 297187200 | BIN,DOOR,FREEZER | A00299203 | $76.95 | ||
| 64 | 216403700 | Plug-button,hole filler ,door base | WG03L06140 | $0.00 | ||
| 72 | 297186701 | Shelf,tilt out ,wire | $0.00 | |||
| 73 | 216513900 | ENDCAP,LEFT SIDE | $50.00 | |||
| 74 | 216514000 | END CAP TILTOUT, RH | $49.20 | |||
| 79 | 297295900 | SCREW | $19.60 | |||
| 80 | 218755504 | SCREW-SHOULDER | $13.80 | |||
| 93 | 5304460605 | Screw,ph truss head ,8-18AB x 0.500 | WG03A01294, 216858001 | $0.00 |
*The price can change whitout warning
