Brand: Electrolux
Model: UL2110A0 - IMPERIAL-BROICH/FREEZER

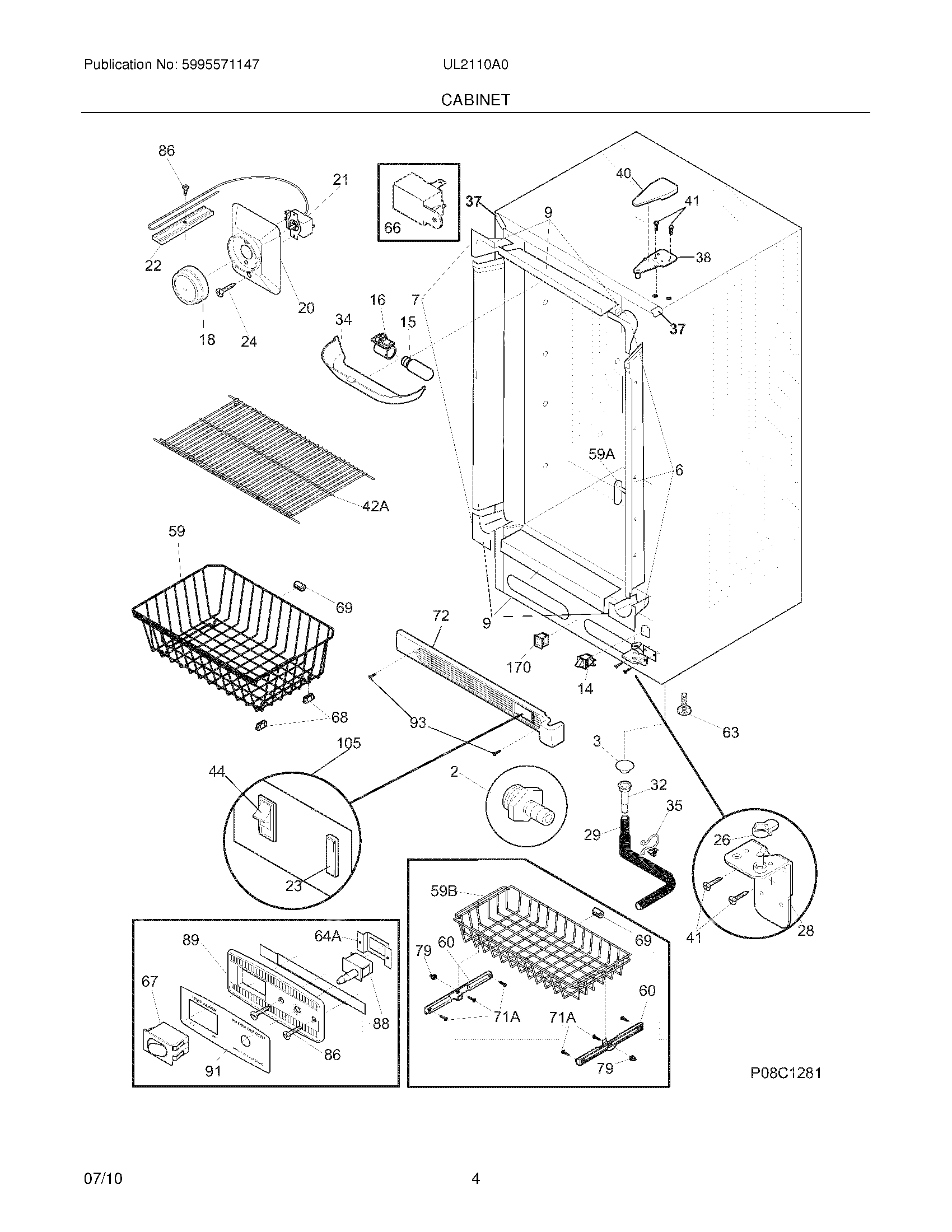

05 - CABINET
- 01 - COVER
- 03 - DO0R
- 05 - CABINET
- 07 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 2 | 216269500 | ADAPTER, DRAIN HOSE | $0.00 | |||
| 3 | 216502600 | PLUG,DRAIN,EXTERIOR | $17.40 | |||
| 6 | 297200900 | BREAKER KIT W/CORNERS | $71.10 | |||
| 7 | 297201100 | Breaker Kit w/corners,lock catch | $0.00 | |||
| 9 | 297200100 | BREAKER KIT W/CORNERS | $59.50 | |||
| 14 | 216998000 | LAMP | 216822900 | $71.85 | ||
| 15 | 216846400 | LIGHT BULB/LAMP | $63.85 | |||
| 16 | 297139500 | SOCKET,LIGHT/LAMP | $18.15 | |||
| 18 | 216707200 | KNOB-CONTROL | $44.25 | |||
| 20 | 297013800 | Cover-control housing | $0.00 | |||
| 21 | 216788200 | Control-temperature | $0.00 | |||
| 22 | 216823500 | CLAMP, CAP TUBE, COLD CONTROL | $0.00 | |||
| 23 | 297087400 | Light,signal ,amber | 297181900 | $0.00 | ||
| 24 | 5304460604 | Screw,type A ,10-24 x 3/8 | $0.00 | |||
| 26 | 216503300 | Ramp,door closer | $0.00 | |||
| 28 | 297283900 | HINGE,BOTTOM,STEPPED PIN | $54.45 | |||
| 29 | 216313502 | HOSE-DRAIN | 5304510363 | $13.80 | ||
| 32 | 5308005500 | DRAIN | $0.00 | |||
| 34 | 297184402 | Shield-light | $0.00 | |||
| 35 | 216273000 | CLIP | $22.50 | |||
| 37 | 297273900 | TRIM-CABINET CORNER,WHITE,(2) | $0.85 | |||
| 38 | 297283800 | UPPER HINGE | 297283803 | $19.60 | ||
| 40 | 297164400 | COVER-HINGE | $12.35 | |||
| 41 | 297236250 | SCREW-HINGE | 240578902 | $14.50 | ||
| 42A | 297119601 | SHELF WH 14.50 X 27.88 | 297367400 | $96.50 | ||
| NI | 216502400 | GROMMET,SHELF | $16.70 | |||
| 44 | 216823300 | SWITCH-ROCKER | $0.00 | |||
| 59 | 297343600 | BASKET | 5304497658 | $127.00 | ||
| 59A | 216486500 | Stop-basket,(2) | WG03L05862 | $0.00 | ||
| 59B | 297347400 | Basket,mid-level | $0.00 | |||
| 60 | 297013500 | SLIDE,SHELF | $0.00 | |||
| 63 | 216396900 | SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE | WG03F04389 | $0.00 | ||
| NI | 297164650 | BRACKET,LH LEG LEVELOR | $18.15 | |||
| NI | 297164651 | Bracket,RH leg levelor | $0.00 | |||
| 64A | 216009200 | BRACKET-DFR SWITCH | $0.00 | |||
| 66 | 216713700 | Buzzer,alarm | $0.00 | |||
| 67 | 216823201 | Switch-rocker,SPST | $0.00 | |||
| 68 | 08009560 | BASKET SLIDE | $36.10 | |||
| 69 | 5305878546 | BUMPER-BASKET | $7.25 | |||
| 71A | 297146820 | Screw,8-18AB x.470 QX | $0.00 | |||
| 72 | 297036902 | Grille/Kickplate,32`` ,white | $0.00 | |||
| 79 | 3017666 | INSERT NUT | 301036 | $15.95 | ||
| 86 | 216036601 | SCREW,RWHD,8-32A X 0.500,GX-CA | $13.05 | |||
| 88 | 216380500 | SWITCH-DEFROST | $0.00 | |||
| 89 | 297013700 | Bezel-power defrost | $0.00 | |||
| 91 | 216206400 | INSERT-BEZEL | $0.00 | |||
| 93 | 5304460605 | Screw,ph truss head ,8-18AB x 0.500 | WG03A01294, 216858001 | $0.00 | ||
| 105 | 216926601 | Bracket,alarm, 1 light | $0.00 | |||
| 105 | 216804500 | Harness-alarm/signal | $0.00 | |||
| 105 | 216926700 | SHIELD | $0.00 | |||
| 170 | 297280400 | VALVE,BREATHER | $10.15 | |||
| NI | 216795106 | Energy Guide | $0.00 | |||
| NI | 297001704 | INSULATION,24",DRAIN TUBE | $20.35 |
*The price can change whitout warning
