Brand: Electrolux
Model: EW30IS65JSA - RANGE

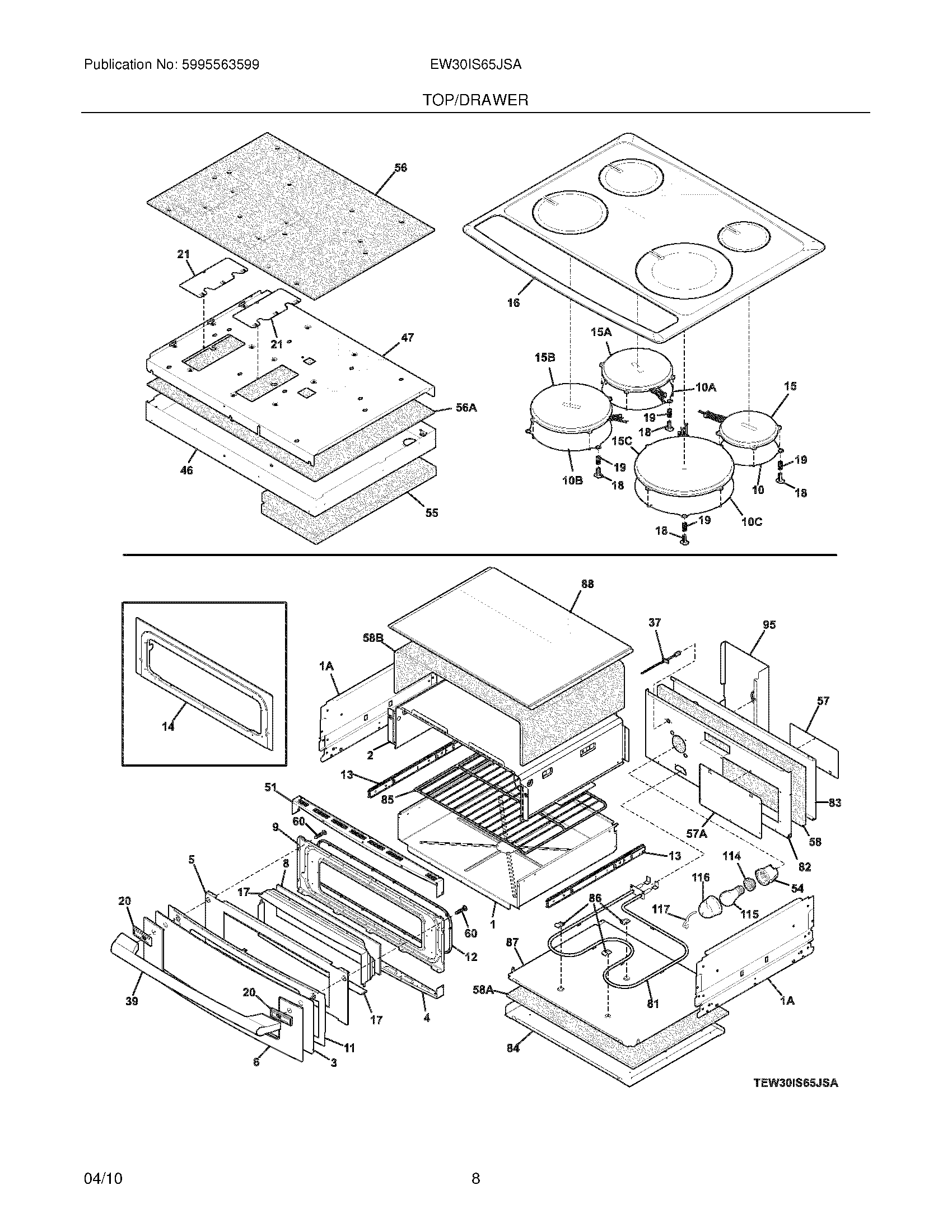

07 - TOP/DRAWER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 318384703 | DRAWER BODY PORC | $325.85 | |||
| 1A | 318300002 | SIDE PANEL,WARMER DRAWER | $55.90 | |||
| 2 | 318384601 | WRAPPER,OUTER | $177.10 | |||
| 3 | 318904408 | Glass,drawer ,black ,outer | $0.00 | |||
| 4 | 318904903 | Trim,door ,black ,lower | $0.00 | |||
| 5 | 318391901 | Deflector,drawer | $0.00 | |||
| 6 | 318377911 | Trim,front ,stainless | 318377915 | $0.00 | ||
| NI | 5303323134 | SCREW | $15.25 | |||
| 8 | 318384800 | Glass,inner | $0.00 | |||
| 9 | 318384903 | Liner,drawer | $0.00 | |||
| 10 | 318330405 | Panel,coil support ,145MM | $0.00 | |||
| 10A | 318330406 | Panel,coil support ,180MM | $0.00 | |||
| 10B | 318330407 | Panel,coil support ,210MM | $0.00 | |||
| 10C | 318330408 | Panel,coil support ,260MM | $0.00 | |||
| 11 | 318385701 | Frame,drawer ,outer | $0.00 | |||
| 12 | 318053326 | SEAL,WARMER DRAWER | $98.00 | |||
| 13 | 318385600 | SKATE, DRAWER | $106.70 | |||
| 14 | 318385401 | COVER,FRONT DRAWER | $166.90 | |||
| 15 | 318329232 | ELEMENT,INDUCTION 145mm | $299.05 | |||
| 15A | 318329230 | Element,induction coil ,180MM ,LH rear | $0.00 | |||
| 15B | 318329233 | Element,induction coil ,210MM ,LH front | $0.00 | |||
| 15C | 318329215 | Element,induction coil ,260MM ,RH front | 318329231 | $0.00 | ||
| 16 | 318389303 | Maintop Assembly,glass/steel ,black/stainless | $0.00 | |||
| NI | 318534402 | SEAL, COOKTOP | $87.10 | |||
| 17 | 318385000 | Spacer,glass ,(2) | $0.00 | |||
| 18 | 318405000 | PIN GUIDE ELEMENTS 12 | $18.85 | |||
| 19 | 318534300 | SPRING GUIDE PIN 12 | $7.25 | |||
| 20 | 318902902 | Spacer,handle ,grey ,(2) | $0.00 | |||
| 21 | 318577900 | Shield,EMI | $0.00 | |||
| 37 | 316217005 | PROBE,OVEN TEMP | $80.55 | |||
| 39 | 241881302 | Handle,door ,stainless | $0.00 | |||
| 46 | 318225445 | Box,burner | $0.00 | |||
| 47 | 318405105 | Panel,mounting | $0.00 | |||
| NI | 5304453707 | SCREW,CONTROL MTG | $15.25 | |||
| 51 | 318904703 | Trim,door ,black ,upper | $0.00 | |||
| 54 | 5303271606 | Housing,oven light | 3051511 | $0.00 | ||
| 55 | 318407300 | INSULATION | 318407310 | $0.00 | ||
| 56 | 318563801 | Insulation,generator | $0.00 | |||
| 56A | 318330546 | Insulation,carrier panel | $0.00 | |||
| 57 | 318386300 | Panel,service ,rear | $0.00 | |||
| 57A | 318386400 | Panel,service ,front | $0.00 | |||
| 58 | 318362120 | Insulation,rear | $0.00 | |||
| 58A | 318362121 | Insulation,bottom | $0.00 | |||
| 58B | 318362129 | Insulation,upper | $0.00 | |||
| 60 | 5303324305 | Screw,10-24 x 0.625 | $0.00 | |||
| NI | 3201909 | FLAT WASHER | 134716700 | $2.20 | ||
| 81 | 318255302 | ELEMENT, WARMER DRAWER | $132.10 | |||
| 82 | 318385302 | Panel,back | $0.00 | |||
| 83 | 318385201 | Panel,back insul | $0.00 | |||
| 84 | 318385101 | Panel,lower insul | $0.00 | |||
| 85 | 318908100 | RACK,MINI OVEN | $167.65 | |||
| 86 | 316095800 | ELEMENT HANGER | $10.15 | |||
| 87 | 318295311 | Panel,bottom | $0.00 | |||
| 88 | 318532302 | Panel,deflector ,mini oven | $0.00 | |||
| 95 | 318303811 | Shield,wire | $0.00 | |||
| NI | 318534601 | Plate,wire shield | $0.00 | |||
| 114 | 318224000 | SOCKET-LIGHT | 316116400, WG02F05726, WG02L06821 | $60.25 | ||
| 115 | 5303013071 | BULB-LAMP | 316538904 | $19.60 | ||
| 116 | 318406100 | Lens,oven light ,glass | $0.00 | |||
| 117 | 5303205904 | Clip,lamp cover ,retainer | $0.00 | |||
| NI | 318083098 | HARNESS,WIRING,MINI OVEN | $44.55 | |||
| NI | 318004902 | THERMAL SWITCH | $78.40 | |||
| NI | 318403100 | BRACKET,BRIDGE,(2) | 318403105 | $50.80 | ||
| NI | 316459400 | SPONGE,SCOTCH-BRITE | $2.45 | |||
| NI | 318163601 | CERAMABRYTE C12 18OZ CLEANER | 5305511218 | $8.70 | ||
| NI | 5304447556 | Washer,flat ,(2) | $0.00 | |||
| NI | 08016432 | SCREW,8-18 X .375,(4) | 316519700 | $10.60 | ||
| NI | 5303211311 | #8 SCREW | $14.50 | |||
| NI | 5303307980 | SCREW, | $14.50 | |||
| NI | 5303323277 | SCREW | $10.20 | |||
| NI | 5304436875 | SCREW,8-18 X 1/2,BLACK | $0.00 | |||
| NI | 5304454881 | SCREW,8-18 X .375,(4) | 316519700 | $10.60 |
*The price can change whitout warning
