Brand: Electrolux
Model: EW30IS65JSA - RANGE

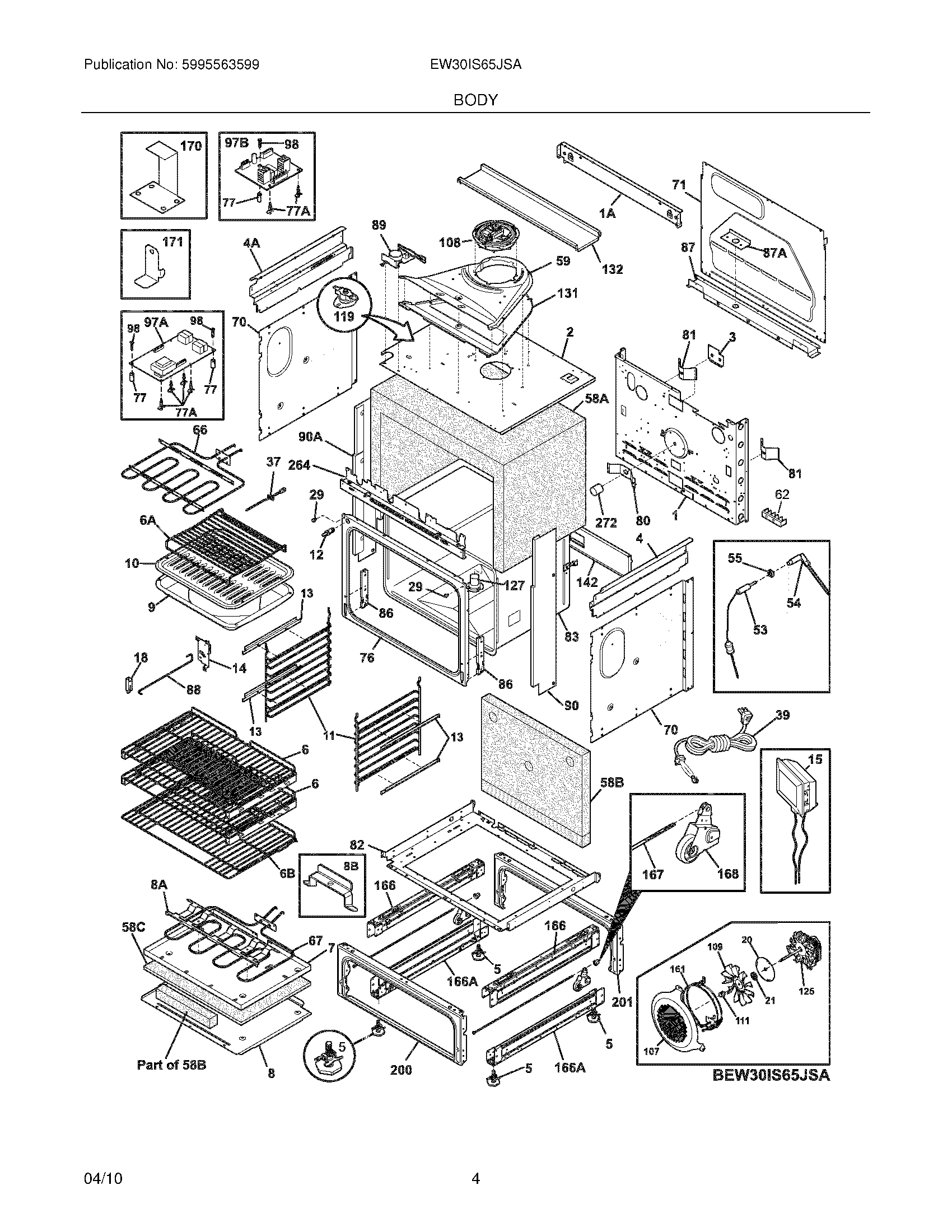

05 - BODY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 318259220 | Back,main | $0.00 | |||
| 1A | 318905600 | Back,main ,upper | $0.00 | |||
| 2 | 318570500 | Panel,insualtion ,top | $0.00 | |||
| 3 | 318402800 | Plate,cover | $0.00 | |||
| 4 | 318905702 | Panel,side ,RH upper | $0.00 | |||
| 4A | 318905703 | Panel,side ,LH upper | $0.00 | |||
| 5 | 318175508 | LEVELING SCREW,W/TEE NUT | 318175510 | $23.25 | ||
| 6 | 318903105 | OVEN SHELF<30">NICKEL AY | $393.50 | |||
| 6A | 318365800 | Rack,broiler pan | WG02F06960 | $0.00 | ||
| 6B | 318908003 | RACK | 318908006 | $222.90 | ||
| 7 | 318297303 | BOX,BAKE ELEMENT | $114.65 | |||
| 8 | 318359500 | SERVICE PANEL | $132.10 | |||
| 8A | 318313601 | BRACKET,BAKE ELEMENT | $69.65 | |||
| 8B | 318403200 | Bracket,service panel ,(2) | 318403202 | $0.00 | ||
| NI | 5304471183 | SCREW,6-32 X 17/32 | $0.00 | |||
| 9 | 318138801 | PAN,BROILER | $55.54 | |||
| 10 | 318126401 | INSERT,BROILER PAN,COBALT BLUE | 316082001 | $50.80 | ||
| 11 | 318903300 | OVEN RACK | $108.30 | |||
| 12 | 316445501 | SWITCH,OVEN LIGHT,DOOR FRAME | 808136601 | $40.65 | ||
| 13 | 318603913 | Bracket,ladder mtg. ,(4) | $0.00 | |||
| NI | 5304456367 | Rivet,ladder bracket ,(8) | $0.00 | |||
| 14 | 318562200 | SENSOR BRACKET | $264.15 | |||
| 15 | 318241006 | LAMP ASSY,HALOGEN | 139001800 | $118.30 | ||
| 18 | 318562300 | BRACKET,ROD | $17.25 | |||
| 20 | 318389400 | PLATE,RETAINER | $16.60 | |||
| 21 | 318389000 | SEAL RING | $21.80 | |||
| 29 | 316517600 | SPACER,OVEN DOOR | $12.35 | |||
| 37 | 316217002 | OVEN TEMPERATURE SENSOR | $63.15 | |||
| 39 | 318113111 | Cord,electric | 5304520547 | $0.00 | ||
| 53 | 318601302 | PROBE, MEAT | 5304504202 | $115.40 | ||
| 54 | 318601206 | RECEPTACLE,PROBE | $175.60 | |||
| NI | 318373001 | Bracket,receptacle ,temp probe | $0.00 | |||
| NI | 5304435874 | Plate,covering ,probe | $0.00 | |||
| NI | 316247800 | LOCK WASHER | $17.40 | |||
| 55 | 316247700 | NUT,HEX | $17.40 | |||
| 58A | 318386113 | Insulation,oven wrapper | 318386121 | $0.00 | ||
| 58B | 318285079 | Insulation,oven back | 318594311 | $0.00 | ||
| 58C | 318294912 | INSULATION,BAKE ELEMENT | $88.55 | |||
| 59 | 318570600 | Duct,cooling fan | $0.00 | |||
| NI | 318579001 | BRACKET,WIRE | $10.55 | |||
| 62 | 5303935061 | TERMINAL BLOCK | 5304409888, WG02A00893 | $11.60 | ||
| NI | 5303323144 | NUT-10-32 | 732071040 | $0.00 | ||
| NI | 5303323139 | SCREW, 10-24 X 29/32 | $13.80 | |||
| 66 | 318255806 | ELEMENT BROIL,4000W | $288.85 | |||
| 67 | 318254911 | BAKE ELEMENT, 2500W | 318254916 | $207.55 | ||
| 70 | 318259114 | Shield,insulation ,sides ,(2) | $0.00 | |||
| 71 | 318260007 | Panel,rear box | $0.00 | |||
| 76 | 318056236 | Front,oven | $0.00 | |||
| 77 | 318293702 | Spacer,control ,(2) | $0.00 | |||
| 77A | 316114100 | SPACER | $62.40 | |||
| 80 | 5303320846 | Plate,oven mtg | $0.00 | |||
| 81 | 318192400 | Spring,oven | $0.00 | |||
| NI | 5303323129 | SCREW 8 X 3/4 | $1.75 | |||
| 82 | 318258770 | Shield,insulation ,lower | $0.00 | |||
| 83 | 318261445 | Liner,oven assy | $0.00 | |||
| 86 | 316508600 | RECEPTACLE-HINGE DOOR ELUX,HIN | 316580700 | $31.20 | ||
| NI | 5304461333 | SCREW 10-32 X 17/32 | $13.80 | |||
| 87 | 318260630 | Bracket,cable mtg. | $0.00 | |||
| 87A | 318111806 | PLATE,CORD SET MTG | $12.35 | |||
| 88 | 318376505 | Rod,latch | $0.00 | |||
| 89 | 318261211 | MOTOR ASM,DOOR LATCH | 318261229 | $85.60 | ||
| 90 | 318905806 | PANEL,SIDE,STAINLESS,RH | 318905812 | $208.30 | ||
| 90A | 318905807 | PANEL,SIDE,STAINLESS,LH | 318905813 | $201.00 | ||
| 97A | 316443916 | RELAY BOARD | $459.35 | |||
| NI | 318402341 | Harness,wiring ,relay board | $0.00 | |||
| 97B | 316519200 | RELAY PLATE, CONVECTION | $273.60 | |||
| 98 | 5304401490 | SCREW,6-18 X 1 | $12.35 | |||
| 107 | 318906601 | COVER FAN | $198.10 | |||
| 108 | 318575600 | MOTOR FAN | $150.25 | |||
| 109 | 318398300 | FAN WHEEL | 318398302 | $24.70 | ||
| 111 | 316136600 | ECROU | $19.60 | |||
| 119 | 318578502 | Thermostat,cooling fan ,110 deg. | 318578507 | $0.00 | ||
| 125 | 318398201 | MOTOR | 5304463302 | $226.40 | ||
| 127 | 318317104 | ADAPTER,VENT TUBE | 318317006 | $13.80 | ||
| 131 | 318574800 | BOTTOM,COOLING DUCT | 318574804 | $74.65 | ||
| 132 | 318404703 | Duct,air | $0.00 | |||
| 142 | 318123910 | Deflector | $0.00 | |||
| 161 | 318255511 | ELEMENT CONVECTION 240V 2500W | $122.65 | |||
| 166 | 318298400 | Bracket,base support ,(2) | WG02A00970 | $0.00 | ||
| 166 | 318298403 | SUPPORT & NUT KIT | 903088-9010 | $59.50 | ||
| 167 | 318147811 | SCREW,LOCK ADJUSTING | $31.95 | |||
| 168 | 318302400 | WHEEL & BRACKET ASSY,ADJUST. | $76.95 | |||
| NI | 5304416408 | SCREW,WAF HD,#10-24 X 1.75 | 5304500008 | $11.60 | ||
| 170 | 318335700 | ANTI-TIP & ACCESSORIES | $58.25 | |||
| 171 | 318335200 | BRACKET,ANTI-TILT | $32.65 | |||
| 200 | 318298226 | Frame,drawer ,front | $0.00 | |||
| 201 | 318298230 | FRAME,DRAWER,BLACK,REAR | 318298233 | $46.45 | ||
| NI | 318531701 | SPACER,(2) | $12.35 | |||
| 264 | 318913112 | Trim,vent ,black ,upper | 318913116 | $0.00 | ||
| 272 | 318249409 | Tube,protector | 318249412 | $0.00 | ||
| NI | 318384468 | Wiring Harness,main | $0.00 | |||
| NI | 318231879 | HARNESS-CAPACITOR ASM | 5304517813 | $36.30 | ||
| NI | 5304400192 | Retainer,wiring | $0.00 | |||
| NI | 5303323136 | SCREW | 732022460, WG02A00980 | $2.60 | ||
| NI | 3051050 | SCREW-SHOULDER | $0.00 | |||
| NI | 5303211311 | #8 SCREW | $14.50 | |||
| NI | 5303311306 | SCREW | 5300803416 | $6.55 | ||
| NI | 5303323277 | SCREW | $10.20 | |||
| NI | 5303324184 | SCREW,8-18 X 5/16,BLACK | $0.00 | |||
| NI | 5304415832 | SCREW,8-18 X 0.406 | 732012720 | $0.00 | ||
| NI | 5304436875 | SCREW,8-18 X 1/2,BLACK | $0.00 | |||
| NI | 5304454881 | SCREW,8-18 X .375,(4) | 316519700 | $10.60 |
*The price can change whitout warning
