Brand: Electrolux
Model: E32AF75JPS2 - FREEZER

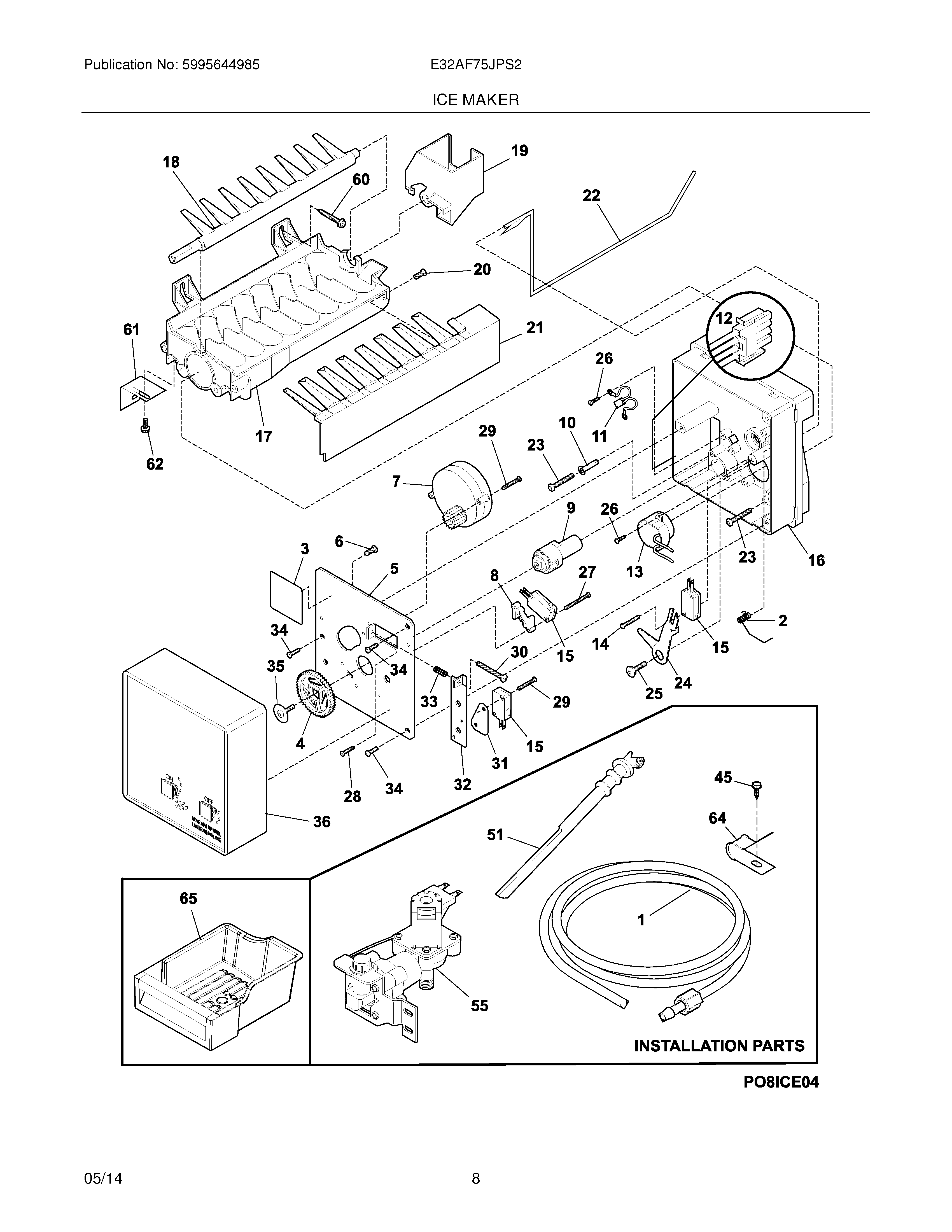

09 - ICE MAKER
- 01 - COVER
- 03 - DOOR
- 05 - CABINET
- 07 - SYSTEM
- 09 - ICE MAKER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 297044904 | TUBE-WATER INLET | $48.65 | |||
| NI | 240561701 | SEAL | $21.05 | |||
| 2 | 5304456650 | Spring-shutoff arm,ICE MAKER | 5304469396 | $0.00 | ||
| 3 | 5304456657 | NAMEPLATE | $3.65 | |||
| 4 | 5304456658 | GEAR | 5304469403 | $20.35 | ||
| 5 | 5304456659 | PLATE,MOUNTING | $46.45 | |||
| 6 | 5304456691 | Screw,M 3x20 No.3 ,valve plate | $0.00 | |||
| 7 | 5304445222 | ICE MAKER | 241798231 | $201.75 | ||
| NI | 5304445223 | SPRING BEAM | $7.25 | |||
| 8 | 5304456661 | Spacer-hold switch | 5304469404 | $0.00 | ||
| 9 | 5304456662 | Cam | 5304469402 | $0.00 | ||
| 10 | 5304456689 | RETAINER | $79.10 | |||
| 11 | 5304456663 | Thermal Cutoff,ice maker ,complete assy | $0.00 | |||
| 12 | 5304456875 | HARNESS-WIRING, ICEMAKER | $128.45 | |||
| 13 | 5304456665 | THERMOSTAT,ICE MAKER | $128.45 | |||
| 14 | 5304456666 | Screw,M 3x20 No.2 ,(6) | $0.00 | |||
| 15 | 5304456667 | SWITCH,MICRO,(3) | $88.55 | |||
| NI | 5304456688 | Terminal | $0.00 | |||
| 16 | 5304456668 | SUPPORT | $135.70 | |||
| 17 | 5304456669 | ICE MAKER | 241798231 | $201.75 | ||
| 18 | 5304456670 | EJECTOR-ICE | 5304469384 | $60.25 | ||
| 19 | 5304456671 | ICE MAKER | 241798231 | $201.75 | ||
| 20 | 5304455677 | SCREW,8-32 X 3/8 | $12.35 | |||
| 21 | 5304456672 | ICE MAKER | 241798231 | $201.75 | ||
| 22 | 5304456673 | Shut-off Arm | 5304469377 | $0.00 | ||
| 23 | 5304456674 | SCREW,M 4X25,#2,MOLD-TO-SUPPOR | $22.50 | |||
| 24 | 5304456675 | LEVER ARM | $0.00 | |||
| 25 | 5304456676 | SCREW,M 4X12.8 #2,LEVER ARM/SP | $23.25 | |||
| 26 | 5304455680 | SCREW,PLASK,4-14 X 3/8 | $13.80 | |||
| 27 | 5304456677 | Screw,M 3x25 No.3 ,hold switch mtg ,(2) | $0.00 | |||
| 28 | 5304456660 | SCREW,M 4X6 #2 | $10.15 | |||
| 29 | 5304456678 | Screw,M 3x12 No.3 ,(2) | $0.00 | |||
| 30 | 5304456679 | SCREW,TIMING ADJ,M 4X25 #3 | $13.80 | |||
| 31 | 5304456680 | INSULATOR | 5304469406 | $13.05 | ||
| 32 | 5304456681 | PLATE,VALVE SWITCH | $39.20 | |||
| 33 | 5304456682 | Spring,timing adjust | 5304469401 | $0.00 | ||
| 34 | 5304456683 | SCREW,SWITCH MTG. | 241679901 | $14.50 | ||
| 35 | 5304456684 | SCREW | $32.65 | |||
| 36 | 297306700 | ICEMAKER | 297345201 | $246.75 | ||
| NI | 5304456690 | LABEL,ON/OFF | $3.65 | |||
| 45 | 5304455650 | SCREW | $14.50 | |||
| 51 | 216887500 | TUBE,WATER,ICE MAKER | $48.65 | |||
| 55 | 241803701 | WATER-VALVE | 242252603 | $84.90 | ||
| 60 | 218362501 | SCREW,HEX WASHER HEAD,8-18AB X | $12.35 | |||
| 61 | 5304456686 | BRACKET-LEVELLING, ICE MAKER | 218721500, WG03A00662 | $74.75 | ||
| 62 | 5304456687 | Screw-IM brkt mtg,pan hd phillips ,8-32T x 0.375 | $0.00 | |||
| 64 | 5304455846 | CLAMP | $10.90 | |||
| 65 | 297318300 | Container,ice bin | $0.00 | |||
| NI | 297345200 | ICEMAKER | 297345201 | $246.75 | ||
| NI | 5304456692 | WASHER | $13.05 | |||
| NI | 5304456693 | NUT,M 3.5 | $13.80 | |||
| NI | 5304456737 | RETAINER | 5304456689 | $79.10 |
*The price can change whitout warning
