Brand: Electrolux
Model: E32AF75JPS2 - FREEZER

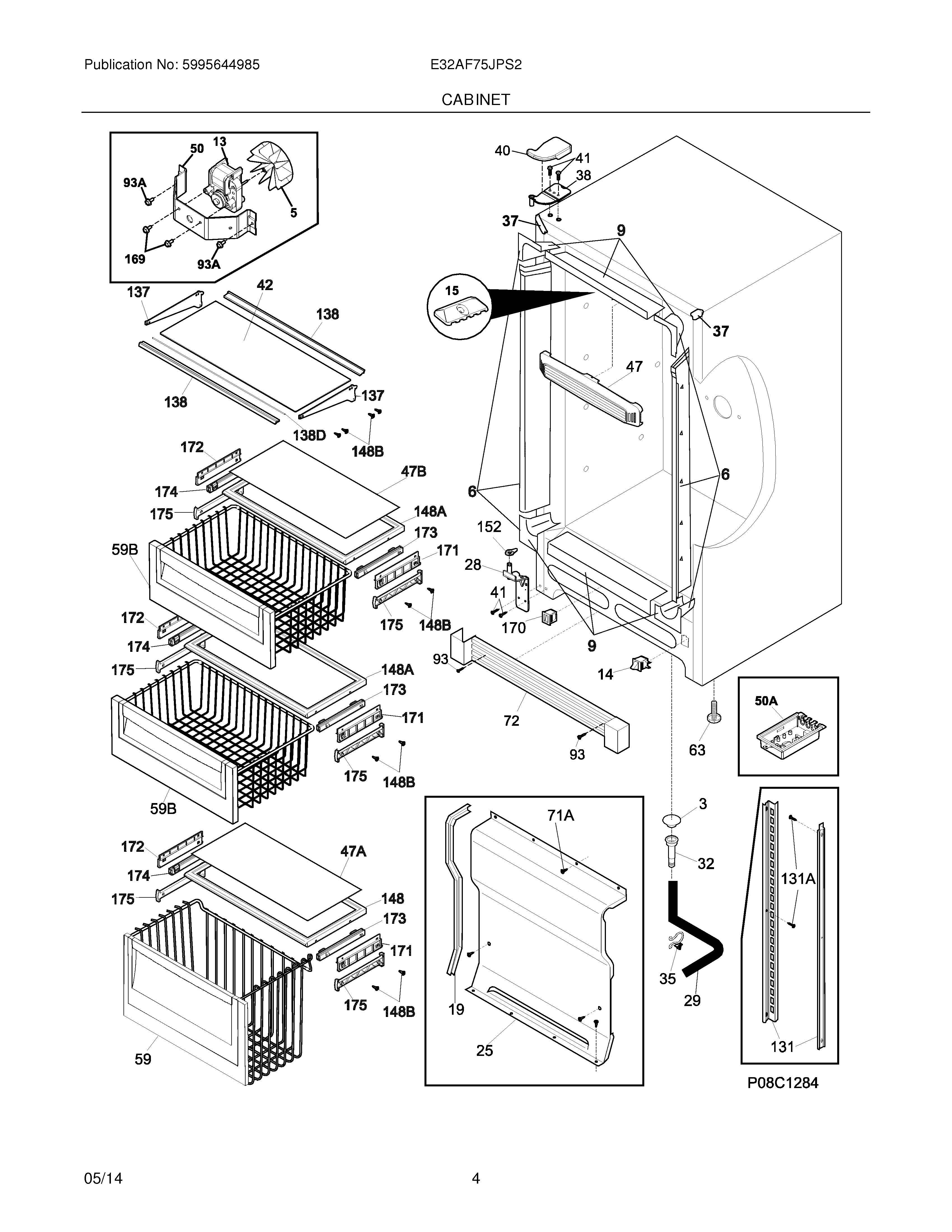

05 - CABINET
- 01 - COVER
- 03 - DOOR
- 05 - CABINET
- 07 - SYSTEM
- 09 - ICE MAKER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 3 | 216503100 | SCREEN DRAIN | $62.40 | |||
| 5 | 297259600 | FAN BLADE,EVAPORATOR | $11.90 | |||
| 6 | 297200900 | BREAKER KIT W/CORNERS | $71.10 | |||
| 9 | 297200100 | BREAKER KIT W/CORNERS | $59.50 | |||
| 13 | 297250000 | FAN MOTOR EVAPORATOR 115V | 297309000 | $55.95 | ||
| 14 | 216822901 | LAMP | 216822900 | $71.85 | ||
| 15 | 241891103 | LIGHT, LED | 241891106 | $89.25 | ||
| 19 | 216204902 | GASKET-EVAP COVER | $0.00 | |||
| 25 | 297099255 | COVER-EVAPORATOR | $0.00 | |||
| 28 | 297302511 | HINGE | 5303018741 | $35.55 | ||
| 29 | 216313501 | DRAIN HOSE | 5304512272 | $15.95 | ||
| 32 | 5308005500 | DRAIN | $0.00 | |||
| 35 | 216273000 | CLIP | $22.50 | |||
| 37 | 297273903 | TRIM-CABINET CORNER,GRAY | 297273906 | $7.25 | ||
| 38 | 297303901 | Hinge-upper,LH | $0.00 | |||
| 40 | 297304001 | Cover-hinge,gray ,LH | $0.00 | |||
| 41 | 297236250 | SCREW-HINGE | 240578902 | $14.50 | ||
| 42 | 297296600 | Shelf-glass | $0.00 | |||
| 47 | 297192900 | BAFFLE,AIR | 297192903 | $25.40 | ||
| 47A | 297291300 | GLASS,CRISPER COVER | $127.00 | |||
| 47B | 297291301 | GLASS,CRISPER COVER | $135.00 | |||
| 50 | 08013207 | BRACKET | $12.95 | |||
| 50A | 241891608 | POWER BOARD-LED | $259.10 | |||
| NI | 216858001 | SCREW,8-18X.50 AB,#10 | $10.90 | |||
| 59 | 297304401 | BASKET,ASSY,TALL | 297304400 | $0.00 | ||
| 59B | 297297501 | Basket,assy-mid level | $0.00 | |||
| 63 | 216396900 | SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE | WG03F04389 | $0.00 | ||
| NI | 297164650 | BRACKET,LH LEG LEVELOR | $18.15 | |||
| NI | 297164651 | Bracket,RH leg levelor | $0.00 | |||
| 71A | 297146820 | Screw,8-18AB x.470 QX | $0.00 | |||
| 72 | 297332100 | GRILLE/KICKPLATE,32" | 5304510562 | $207.55 | ||
| 93 | 5304460605 | Screw,ph truss head ,8-18AB x 0.500 | WG03A01294, 216858001 | $0.00 | ||
| 93A | 297174300 | SCREW,#8,18X.63,SELF PIERCE | $12.35 | |||
| NI | 5303313703 | CLIP | $8.55 | |||
| 131 | 297327200 | Channel-shelf mtg,side ,(2) | $0.00 | |||
| 131 | 297146821 | Screw,th ,8-18x.470 AB QX ,white ,(6) | $0.00 | |||
| 137 | 297296510 | BRACKET-SHELF | 297296511 | $87.80 | ||
| 138 | 297296300 | TRIM-SHELF | $78.40 | |||
| 138 | 297350900 | GASKET,SHELF | $18.15 | |||
| 148 | 297288802 | Frame,basket-cover ,tall | $0.00 | |||
| 148 | 297288803 | FRAME,BASKET,MID-LEVEL | $0.00 | |||
| 148 | 297142600 | SCREW | $13.05 | |||
| 152 | 297302700 | Bearing-hinge | $0.00 | |||
| 169 | 216912401 | SCREW,HEX WASHER HEAD,8-32 X 0 | $13.05 | |||
| 170 | 297280403 | VALVE,BREATHER | $21.80 | |||
| 171 | 297092700 | BRACKET | $53.00 | |||
| 172 | 297092701 | BRACKET CRISPER COVER LH | $54.45 | |||
| 173 | 297291200 | WHEEL-BASKET,RIGHT A/SUPPOR | $70.30 | |||
| 174 | 297291201 | WHEEL-BASKET,LEFT A/SUPPO | $70.30 | |||
| NI | 297305500 | Clip,crisper | $0.00 | |||
| 175 | 297099500 | SUPPORT,CRISPER | $45.00 | |||
| NI | 297330102 | Energy Guide | $0.00 | |||
| NI | 297001704 | INSULATION,24",DRAIN TUBE | $20.35 |
*The price can change whitout warning
