Brand: Electrolux
Model: GLFH1767GW1 - FREEZER

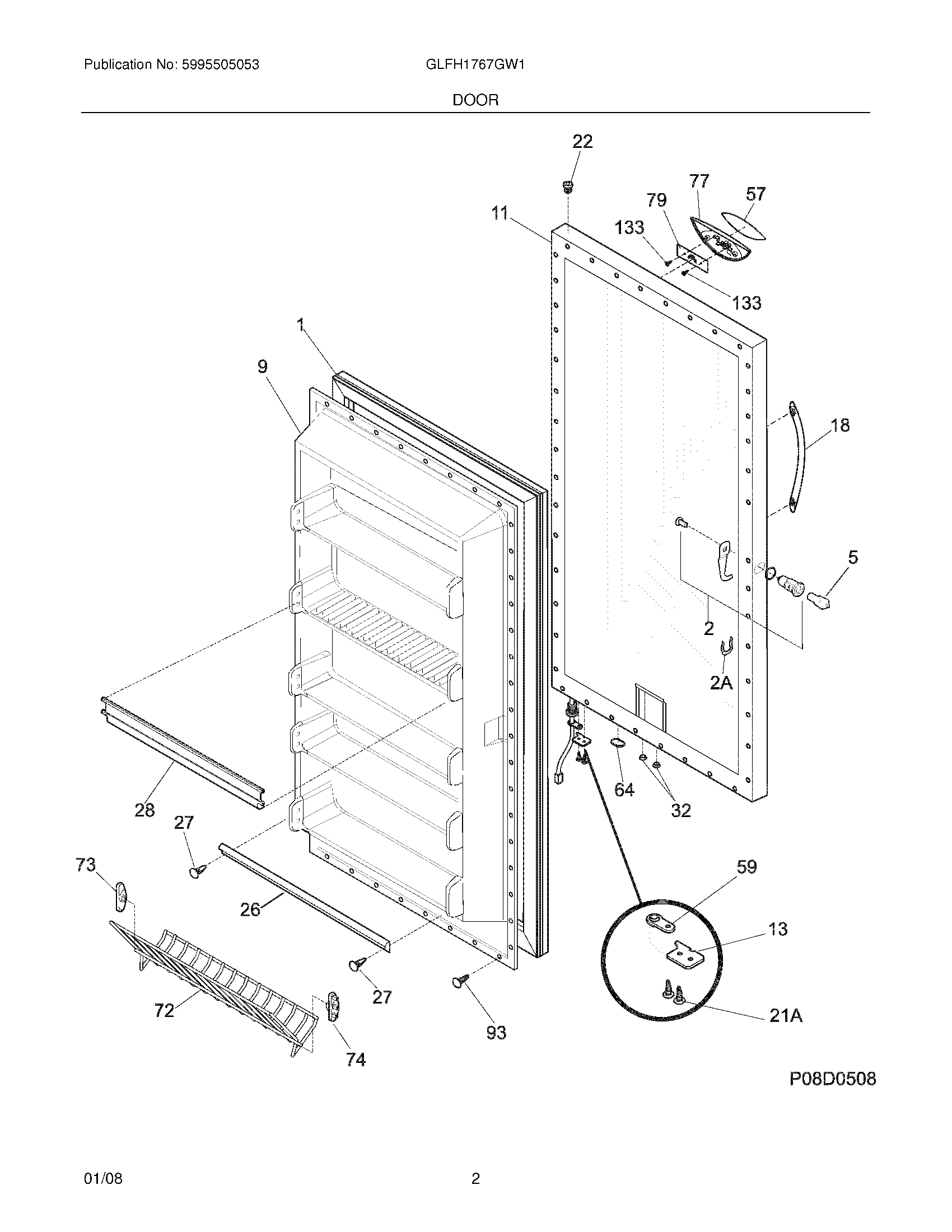

03 - DOOR
- 01 - COVER
- 03 - DOOR
- 05 - CABINET
- 07 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 216522309 | DOOR-GASKET,WHT | 5304507200, WG03L06143 | $193.05 | ||
| 2 | 297090000 | LOCK ASSY | 297318600, WG03F04171 | $37.00 | ||
| 2A | 297090900 | CLIP,SPRING | $10.90 | |||
| 5 | 297147700 | KEY,LOCK | $7.25 | |||
| 9 | 216527816 | PANEL-INNER DOOR,FRZR | $0.00 | |||
| 11 | 216526565 | Panel-outer door,white | $0.00 | |||
| 13 | 5303271076 | DOOR STOP | $16.70 | |||
| 18 | 216921200 | HANDLE,WHITE | 5304475665 | $0.00 | ||
| NI | 216932501 | Nut,flange locking ,handle | $0.00 | |||
| 21A | 5304460608 | Screw,flat head ,No.1/4-20 ,door stop/hng | $0.00 | |||
| 22 | 216970800 | Bearing,hinge w/o`ring ,top | WG03L05876, 216970802 | $0.00 | ||
| 26 | 216524200 | GASKET,SECONDARY | 216524201 | $50.80 | ||
| 27 | 5303212828 | CLIP,PANEL | $16.70 | |||
| NI | 5304406520 | CLIP,PANEL MOUNTING KIT | $46.45 | |||
| 28 | 216806100 | Rack-door,contour ,(3) | $0.00 | |||
| 32 | 5309950074 | VALVE, BREATHER | WG03F04240 | $0.00 | ||
| 57 | 297072601 | Overlay | 297072600 | $0.00 | ||
| 59 | 216974500 | BEARING,DOOR CLOSER | $15.95 | |||
| 64 | 216403700 | Plug-button,hole filler ,door base | WG03L06140 | $0.00 | ||
| 72 | 297118100 | Shelf,tilt out ,wire ,(2) | 216514100 | $0.00 | ||
| 73 | 216513900 | ENDCAP,LEFT SIDE | $50.00 | |||
| 74 | 216514000 | END CAP TILTOUT, RH | $49.20 | |||
| 77 | 297072500 | Bezel | $0.00 | |||
| 79 | 216944300 | CONTROL BOARD,DIGITAL | $162.55 | |||
| 93 | 5304460605 | Screw,ph truss head ,8-18AB x 0.500 | WG03A01294, 216858001 | $0.00 | ||
| 133 | 216905300 | SCREW PH 324X.25 ELECTRONIC AS | 216905301 | $14.50 |
*The price can change whitout warning
