Brand: Electrolux
Model: GLFH1767GW1 - FREEZER

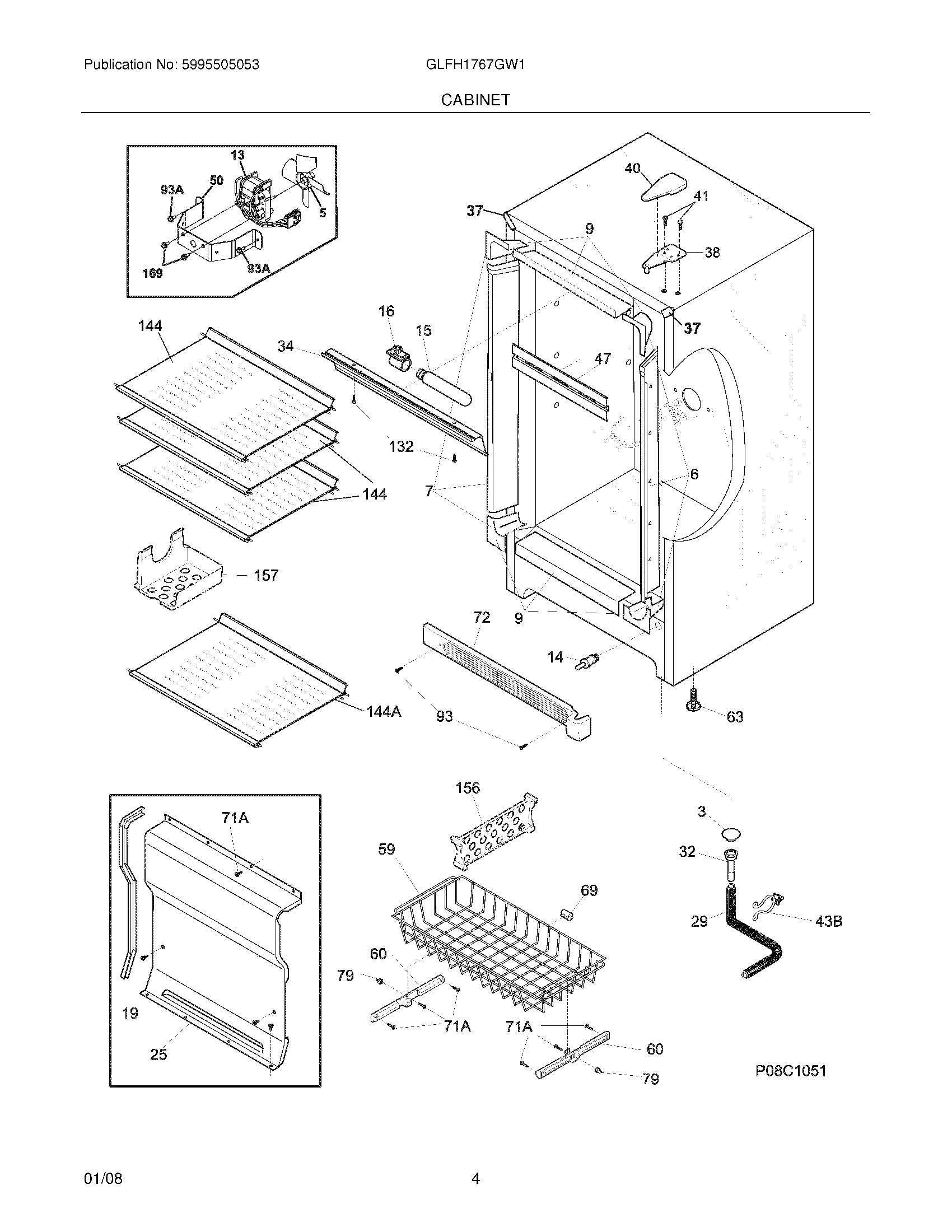

05 - CABINET
- 01 - COVER
- 03 - DOOR
- 05 - CABINET
- 07 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 3 | 216503100 | SCREEN DRAIN | $62.40 | |||
| 5 | 216325600 | FAN PLASTIC EVAP. | 5308000010 | $58.80 | ||
| 6 | 297200600 | Breaker Kit w/corners,no lock slot | $0.00 | |||
| 7 | 297200800 | Breaker Kit w/corners,incl lock catch | $0.00 | |||
| 9 | 297200100 | BREAKER KIT W/CORNERS | $59.50 | |||
| 13 | 216934100 | Motor,fan ,115 V | WG03F04159, 297309000 | $0.00 | ||
| 14 | 216472300 | DOOR SWITCH,LIGHT | 297243800 | $19.60 | ||
| 15 | 216988100 | LED LIGHT | 5304517886 | $74.05 | ||
| 16 | 216817601 | SOCKET,LIGHT/LAMP | 297139500 | $18.15 | ||
| 19 | 216204900 | GASKET - EVAP. COVER | $47.40 | |||
| 25 | 297098801 | Cover-evaporator | $0.00 | |||
| 29 | 216313503 | DRAIN HOSE | 5304512272 | $15.95 | ||
| 32 | 5308005500 | DRAIN | $0.00 | |||
| 34 | 216816223 | Shield-light | $0.00 | |||
| 37 | 241611301 | CORNER CABINET TRIM,WHITE | 5303918606 | $7.25 | ||
| 38 | 297164300 | UPPER HINGE | 297283803 | $19.60 | ||
| 40 | 297164400 | COVER-HINGE | $12.35 | |||
| 41 | 240578902 | SCREW-HINGE | $14.50 | |||
| 43B | 297048400 | CLIP,WIRE | 297315800 | $10.15 | ||
| 47 | 216661600 | BAFFLE,AIR | 297192903 | $25.40 | ||
| 50 | 216394050 | BRACKET,FAN MOTOR MOUNT | $21.80 | |||
| 59 | 297121000 | Basket,shallow ,(2) | 297308400 | $0.00 | ||
| 60 | 297013500 | SLIDE,SHELF | $0.00 | |||
| 63 | 216396900 | SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE | WG03F04389 | $0.00 | ||
| 69 | 5305878546 | BUMPER-BASKET | $7.25 | |||
| 71A | 297146800 | Screw,8-18AB x 0.470 ,EVAP PANEL | 297146820 | $0.00 | ||
| 72 | 297036900 | KICK PLATE 32" GRAY | 297036907 | $37.00 | ||
| 79 | 3017666 | INSERT NUT | 301036 | $15.95 | ||
| 93 | 5304460605 | Screw,ph truss head ,8-18AB x 0.500 | WG03A01294, 216858001 | $0.00 | ||
| 93A | 216629601 | SCREW,HEX WASHER HEAD,10-16 X | $13.05 | |||
| 132 | 5304460601 | Screw,6-20AB x 3/8 | 297096100 | $0.00 | ||
| 144 | 297178100 | Shelf-assy,fixed,glass ,(3) ,complete | 297324500 | $0.00 | ||
| 144 | 297178101 | Shelf-assy,fixed,glass ,complete | $0.00 | |||
| NI | 216502400 | GROMMET,SHELF | $16.70 | |||
| 156 | 297071800 | Divider,basket ,(2) | $0.00 | |||
| 157 | 297071900 | Shelf,small items | $0.00 | |||
| 169 | 216912401 | SCREW,HEX WASHER HEAD,8-32 X 0 | $13.05 | |||
| NI | 216910403 | Energy Guide | $0.00 | |||
| NI | 5303305324 | TOUCH-UP PAINT,WHITE | 5303321319 | $13.80 | ||
| NI | 297001704 | INSULATION,24",DRAIN TUBE | $20.35 | |||
| NI | 297088700 | Guide-Electronic control | $0.00 | |||
| NI | 297169900 | POWER CORD | 297366805 | $68.95 |
*The price can change whitout warning
