Brand: Electrolux

Model: FGGF3058RFC - RANGE/OVEN, GAS, FREESTANDING, 30 INCH

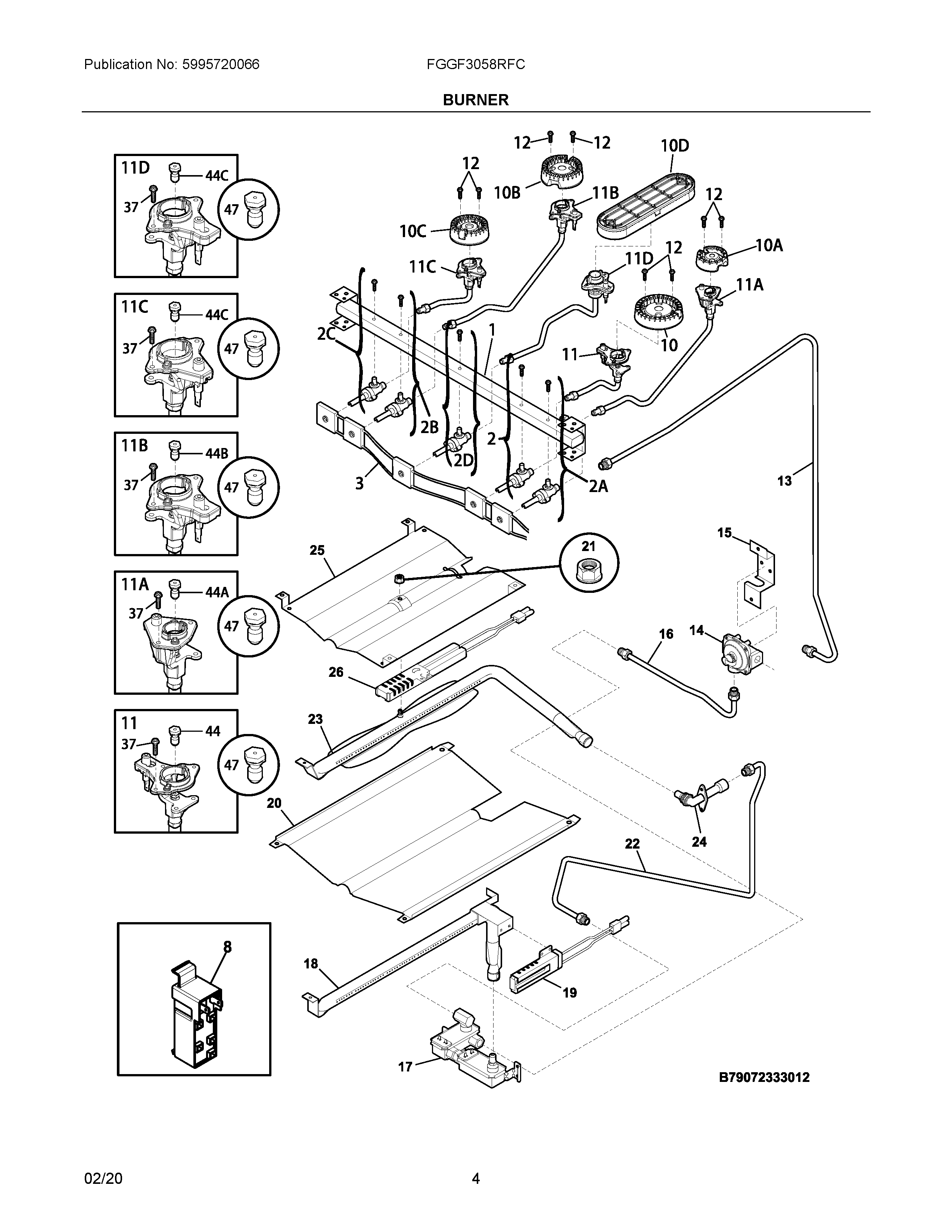

03 - BURNER

FGGF3058RFC
Plan number Part Number Description Replacement Price
1 316605501 MANIFOLD,PIPE 5304513540   $95.05
2 5304506550 VALVE,16/17/18,BURNER   $67.50
2A 5304506547 VALVE,BURNER,5K   $66.05
2B 5304506549 VALVE,12/14K BURNER   $67.50
2C 5304506548 VALVE,BURNER,9.5K   $79.10
2D 5304506551 VALVE,TOP BURNER,OVAL   $58.80
NI 316215600 SCREW,VALVE MOUNTING   $14.50
3 5304506556 HARNESS,IGNITION 5304528828   $100.90
8 808608804 SPARK MODULE   $87.10
NI 316021109 SCREW   $14.50
NI 316257400 BRACKET,SPARK MODULE   $14.50
10 316438400 BURNER,16/17K   $79.85
10A 316438200 BURNER, SEALED, 5K   $58.05
10B 316438000 BURNER,SEALED,12K BTU   $68.95
10C 316558300 SEALED BURNER   $53.70
10D 316559300 CENTER BURNER   $181.45
11 316536625 IGNITOR/ORIFICE ASSY   $188.70
11A 316536610 ALL ASSY/ORIFICE, BURNER S   $94.35
11B 316536612 IGNITOR/ORIFICE ASM,TOP BURN.   $119.00
11C 316536602 ENS. IGNITOR / ORIFICE, BURNER   $127.00
11D 316536623 IGNITER/ORIFICE ASSY,BURNER   $150.95
12 316540900 SCREW (12)   $14.50
13 316489101 TUBE-MANIFOLD SUPPLY   $104.50
14 5304498819 REGULATOR,PRESSURE 316091711   $100.15
NIA 316021104 SCREW   $8.00
15 316091600 BRACKET - REGULATOR   $70.40
16 316431000 TUBE,VALVE-REGULATOR,3/8 5304507348   $45.00
17 316031501 SAFETY VALVE   $303.35
NIA 316498100 SHIELD WIRE SAFETY VALVE   $14.50
18 316404400 BURNER,OVEN   $105.95
19 5304506545 IGNITOR,BROILER   $115.40
NIA 316401500 COVER,BROIL IGNITOR   $0.00
20 316401401 BAFFLE,OVEN BURNER 5304519024   $76.95
21 5303013272 NUT   $18.15
22 316537100 TUBE,VALVE-MIXER,3/8 5304507768   $47.90
23 316404302 BURNER,BROILER   $106.70
24 316409700 ELBOW,MIXER 5304516894   $83.45
NI 297174300 SCREW,#8,18X.63,SELF PIERCE   $12.35
25 5304497666 BAFFLE,BROILER   $90.00
26 316489403 IGNITOR,BURNER   $175.60
37 316240600 SCREW,MOUNTING,IGNITOR   $11.60
44 316527510 HOLDER,ORIFICE 316543200   $87.80
44A 316527504 ORIFICE TOP BURNER 5K   $23.25
44B 316527502 ORIFICE TOP BURNER 12K   $23.25
44C 316527500 ORIFICE TOP BURNER 9.5K   $21.80
47 316542418 LP CONVERSION KIT 316542420, GRLP4   $0.00
NI 316580602 HARNESS,IGNITOR   $55.55
NI 316001003 SCREW,GROUNDING,10-24 X 1.835 316001017   $0.75
NI 316021105 SCREW, HEX   $11.60
2 5304506550 VALVE,16/17/18,BURNER   $67.50
2A 5304506547 VALVE,BURNER,5K   $66.05
2B 5304506549 VALVE,12/14K BURNER   $67.50
2C 5304506548 VALVE,BURNER,9.5K   $79.10
2D 5304506551 VALVE,TOP BURNER,OVAL   $58.80
10 316438400 BURNER,16/17K   $79.85
11 316536625 IGNITOR/ORIFICE ASSY   $188.70
19 316489403 IGNITOR,BURNER   $175.60
26 5304506545 IGNITOR,BROILER   $115.40
*The price can change whitout warning
