Brand: Electrolux

Model: FGGF3058RFC - RANGE/OVEN, GAS, FREESTANDING, 30 INCH

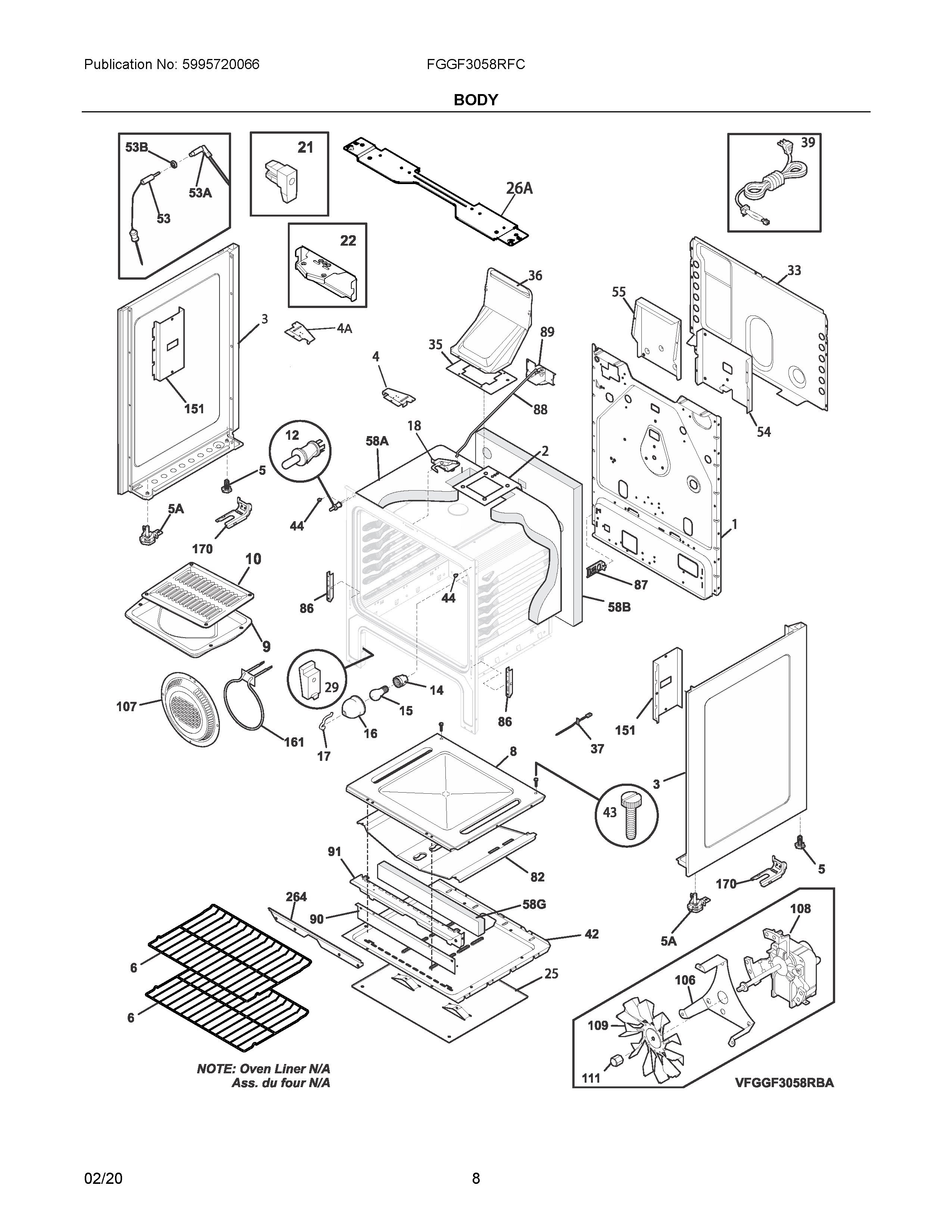

04 - BODY

FGGF3058RFC
Plan number Part Number Description Replacement Price
1 316401600 BACK,MAIN 316401608   $129.90
NI 316089500 SCREW   $13.80
2 316437100 BRACE,OVEN TOP   $32.65
NI 297174300 SCREW,#8,18X.63,SELF PIERCE   $12.35
NI 316021109 SCREW   $14.50
3 316400118 PANEL,BODYSIDE,BLACK,RH 316400144   $127.00
3A 316400119 SIDE PANEL, BLACK, LEFT 316400145   $126.30
4 316605400 BRACKET-MAINTOP,RH   $17.40
4A 316605401 BRACKET-MAINTOP,LH   $15.25
5 316272900 SCREW,LEVELING,PLASTIC,REAR   $13.80
5A 316498900 LEVELING LEG ASSY,METAL,FRONT 5304509869   $5.80
6 316496207 RACK OVEN   $113.70
8 316400603 OVEN LOWER PANEL   $178.55
9 316081900 BROILER PAN & INSERT KIT 5304494997   $76.20
10 316082000 BROILER PAN & INSERT KIT 5304494997   $76.20
12 316445500 SWITCH,DOOR FRAME OVEN LIGHT   $61.70
14 316116400 SOCKET-LIGHT   $60.25
15 316538901 BULB-LAMP 316538904   $19.60
16 318406100 LENS, OVEN LIGHT, GLASS   $0.00
17 316087500 LIGHT RETAINER   $58.05
18 316405800 LATCH ASSEMBLY,OVEN DOOR   $61.70
NI 5303285179 SCREW   $13.80
21 316408000 TIE SIDE   $17.40
22 316286300 BRACKET-BODYSIDE,(2)   $18.15
25 316406200 SHIELD,HEAT,LOWER   $84.20
26A 316498200 BRACKET,CHASSIS SUPPORT   $50.10
29 807047102 GLIDE,DRAWER,FRONT   $11.60
33 316402500 SHIELD,REAR WALL   $123.35
35 316542100 GASKET-FLUE 316542102   $11.60
36 316208901 FLUE   $124.10
37 316490003 PROBE,OVEN TEMP 316490000   $58.80
39 807108202 POWER CORD   $34.90
NI 316001003 SCREW,GROUNDING,10-24 X 1.835 316001017   $0.75
NI 316418901 SCREW,TRILOBE,10-32 X 5/16"   $14.50
42 316400700 SHIELD,WOOL,LOWER   $140.05
43 3131732 SCREW   $11.00
44 316517600 SPACER,OVEN DOOR   $12.35
53 5304504202 PROBE, MEAT   $115.40
NIA 316536904 RECEPTACLE,PROBE   $116.10
53B 316247700 NUT,HEX   $17.40
NIBA 316534100 WASHER FLAT MEAT PROBE   $15.25
54 316404200 SHIELD, HEAT   $0.00
55 316404800 SHIELD,FLUE 5304510473   $23.95
58A 316403700 INSULATION,OVEN WRAPPER   $311.35
58B 316403600 INSULATION,OVEN BACK   $120.45
58G 08067973 INSULATION - MAIN FRONT   $53.00
82 316400801 SHIELD,BAKE BURNER   $0.00
NIA 316432800 CLIP,WIRE   $7.25
86 316441300 RECEPTACLE,HINGE   $22.50
NIA 316418900 VIS,SIMS LP,#8-32 X 5/16"   $14.50
87 316401201 BRACKET,HARNESS 316401202   $10.15
88 316232700 ROD,AUTO LATCH 316232702   $12.35
89 316464300 MOTOR-LATCH 5304528973   $54.45
106 316404100 BRACKET,MOTOR MTG   $60.95
107 316026701 COVER - FAN   $399.85
108 316256900 MOTOR,FAN   $179.25
109 318398302 FAN WHEEL   $24.70
111 316136600 ECROU   $19.60
151 316404601 SHIELD,BODYSIDE   $21.80
161 316211603 ELEMENT, CONVECTION FAN, 350 W WG02F06923   $0.00
170 316112005 ANTI-TIP KIT ASSY   $15.25
NIA 316107200 ANTI-TIP KIT ASSY 316112005   $15.25
NIB 316116000 SCREW - ANTI TIP   $12.35
NIC 316541700 ANTI-TIP KIT ASSY 316112005   $15.25
264 316404700 BRACKET,AIR DAM   $16.70
NI 5304502787 HARNESS,MAIN 5304516081   $95.80
NI 316539800 RETAINER,WIRE   $13.80
NI 316021105 SCREW, HEX   $11.60
NI 316279600 SCREW,BRACKET,STIFFENER   $12.35
NI 5303285179 SCREW   $13.80
*The price can change whitout warning
