Brand: Electrolux
Model: EI23BC65KS5 - REFRIGERATOR

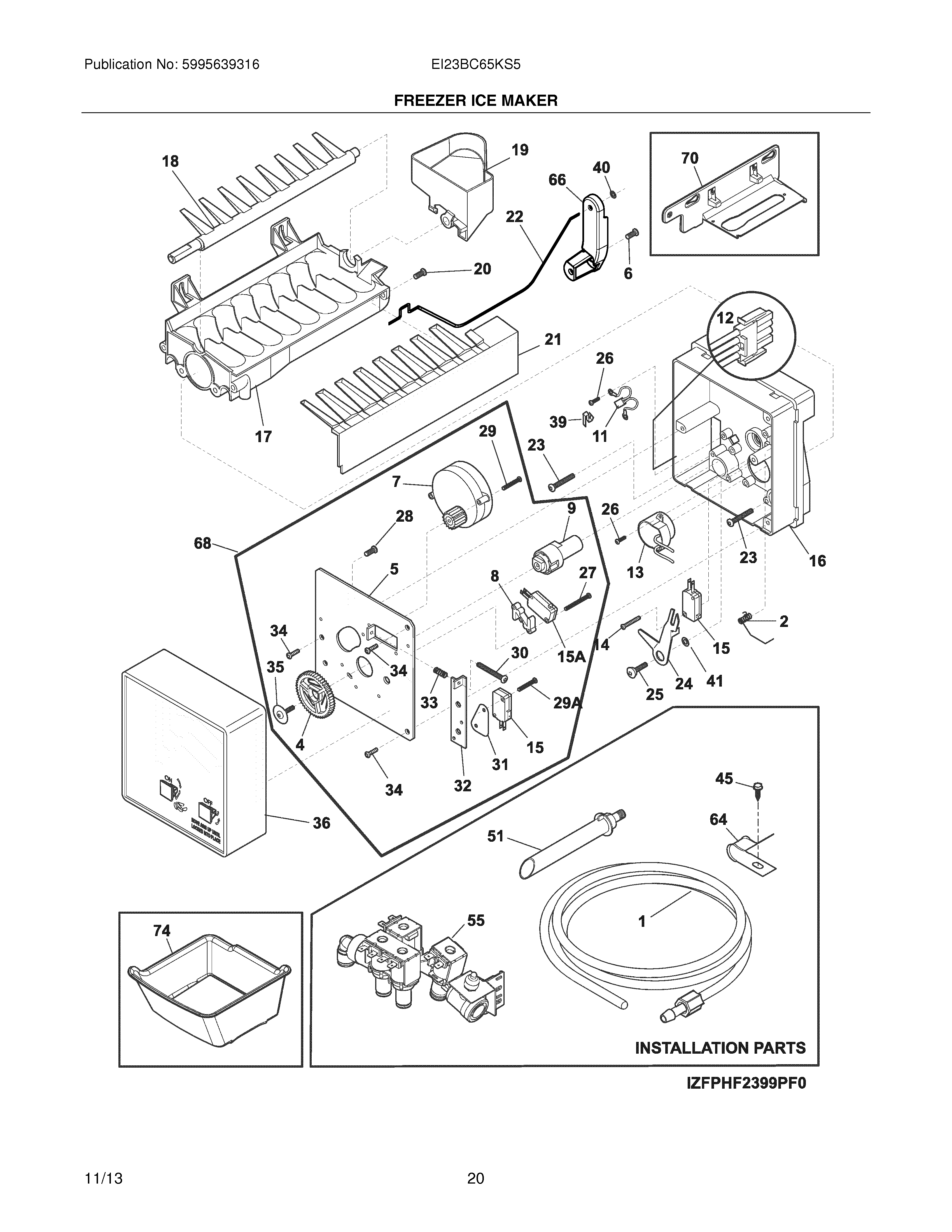

19 - FREEZER ICE MAKER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 218976435 | TUBE,WATER INLET,5/16 X 59" | $21.05 | |||
| NI | 218976425 | TUBE-WATER INLET,51.00" ,BROWN | $103.80 | |||
| NI | 218976428 | Tube-water,5/16 - 51`` ,natural | $0.00 | |||
| NI | 241844403 | TUBE | $13.05 | |||
| NI | 241920104 | FILL TUBE KIT | 241920106 | $58.05 | ||
| NI | 241964707 | WATER TUBE,1/4-36" | $18.85 | |||
| NI | 241965906 | WATER TUBE,5/16,67" | $24.70 | |||
| 2 | 5304469396 | Spring-shutoff arm,ice maker | $0.00 | |||
| 4 | 5304469403 | GEAR | $20.35 | |||
| 5 | 5304469399 | Mounting Plate | $0.00 | |||
| 6 | 3206305 | SCREW,PAN HEAD,8-32 X 0.250 | 218359202 | $10.90 | ||
| 7 | 5304469407 | MOTOR,ICEMAKER | $158.20 | |||
| 8 | 5304469404 | Spacer-hold switch | $0.00 | |||
| 9 | 5304469402 | Cam | $0.00 | |||
| 11 | 5304455695 | Thermal Cutoff,ICE MAKER ,complete assy | $0.00 | |||
| 12 | 5304469390 | Harness-wiring | $0.00 | |||
| 13 | 5304469387 | THERMOSTAT ASSY,ICE MAKER | $106.70 | |||
| 14 | 5304469394 | Screw,No.5-24 x 3/4 | $0.00 | |||
| 15 | 5304469388 | Switch-micro,2 | $0.00 | |||
| 15A | 5304469405 | Switch-micro | $0.00 | |||
| 16 | 5304469379 | Housing,control | $0.00 | |||
| 17 | 5304469413 | MOLD-ICE MAKER,WITH HEATER | $210.45 | |||
| 18 | 5304469384 | EJECTOR-ICE | $60.25 | |||
| 19 | 242051201 | Cup-water inlet,w/bearing | $0.00 | |||
| 20 | 5304469391 | SCREW,8-32 X 3/8",(4) | 5304480396 | $11.60 | ||
| 21 | 5304469378 | ICE STRIPPER | $0.00 | |||
| 22 | 242051301 | Shut-off Arm | $0.00 | |||
| 23 | 5304469392 | Screw,mold-to-support ,(2) | $0.00 | |||
| 24 | 5304469382 | LEVER ARM | $21.80 | |||
| 25 | 5304469397 | Screw,lever arm/sprt | $0.00 | |||
| 26 | 5304469393 | Screw | $0.00 | |||
| 27 | 5304469410 | Screw,hold switch mtg ,(2) | $0.00 | |||
| NI | 5304469406 | INSULATOR | $13.05 | |||
| 28 | 5304469414 | SCREW,PAN HEAD,8-32 X 0.250 | 218359202 | $10.90 | ||
| 29 | 5304469409 | Screw | $0.00 | |||
| 29A | 5304469412 | Screw,No.4-24 X 3/4`` | $0.00 | |||
| 30 | 5304469408 | Screw-timing adj,8-32 x 1.000 | $0.00 | |||
| 31 | 5304469389 | SPACER-SWITCH | $2.95 | |||
| 32 | 5304469400 | Plate-valve switch | $0.00 | |||
| 33 | 5304469401 | Spring,timing adjust | $0.00 | |||
| 34 | 5304469380 | Screw,No.8-10x1/2 | $0.00 | |||
| 35 | 5304469411 | Screw | $0.00 | |||
| 36 | 5304469385 | Cover-ice maker | $0.00 | |||
| 39 | 5304469383 | Clamp | $0.00 | |||
| 40 | 5304458401 | Clip-retainer | $0.00 | |||
| 41 | 5304469381 | Washer,flat | $0.00 | |||
| 45 | 5304453923 | SCREW, | 5303307980 | $14.50 | ||
| 51 | 242169404 | WATER TUBE KIT,VALVE | 5303918602 | $76.95 | ||
| 55 | 242253002 | VALVE,WATER QUAD SOLENOID | $206.85 | |||
| NI | 218709101 | SCREW-HDL MTG,HEX WSH HD,#10AB | $6.55 | |||
| NI | 240363602 | SCREW-SHOULDER,#12-11,HEX HD | $13.05 | |||
| 64 | 5304453921 | CLAMP | 5304455846 | $10.90 | ||
| 66 | 242060701 | SUPPORT BAIL ARM | $13.05 | |||
| 68 | 5304469398 | Mounting Plate,assy | $0.00 | |||
| 70 | 242053001 | BRACKET-ICE MAKER | $52.25 | |||
| NI | 240383406 | SCREW TRUSS HD QUAD | 5304515677 | $8.70 | ||
| NI | 241690701 | SCREW-#8-32 X 3/8 | 240555002 | $13.80 | ||
| NI | 242039701 | SCREW | $13.80 | |||
| 74 | 242128001 | CONTAINER,ICE | $186.50 | |||
| NI | 241798219 | KIT, ICE MAKER CONG | 5303918493 | $255.45 | ||
| NI | 240396801 | CLAMP TUBE | $19.60 | |||
| NI | 241503901 | TUBE ADAPTER | $52.25 | |||
| NI | 242103001 | CONNCETOR-WATER,STRAIGHT | 241806601 | $69.65 |
*The price can change whitout warning
