Brand: Electrolux

Model: EI23BC65KS5 - REFRIGERATOR

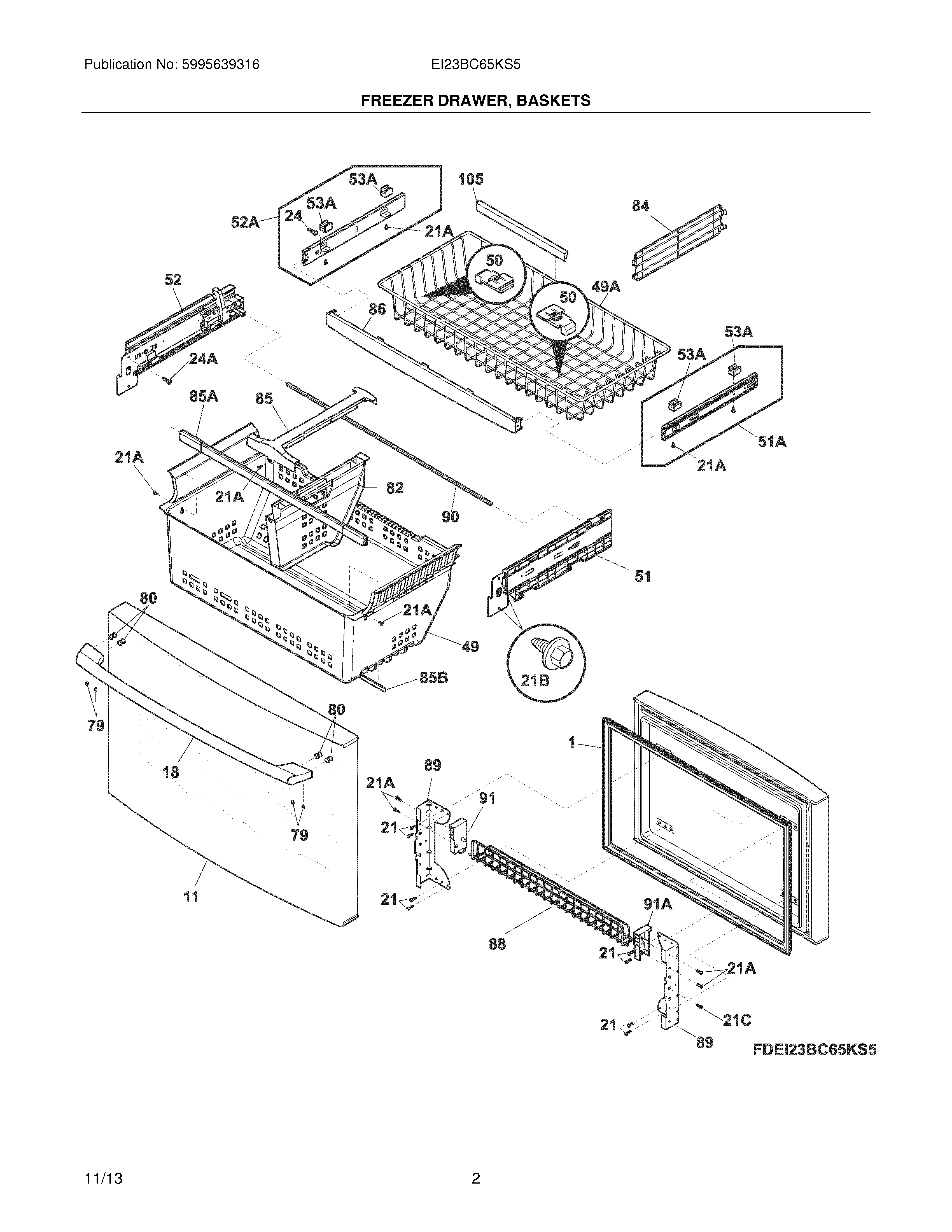

03 - FREEZER DRAWER/BASKETS

EI23BC65KS5
Plan number Part Number Description Replacement Price
1 241778308 GASKET,FREEZER DRAWER,GRAY 5304501270   $203.20
11 241987922 DRAWER,FREEZER,STAINLESS   $553.00
18 241881310 HANDLE FRZR DRAWER STAINLESS   $277.95
NI 241601002 HEXAGONAL KEY 5304467131   $23.25
NI 241701902 SCREWDRIVER,3/32"   $20.35
21 241690602 SCREW   $10.90
21A 241953902 SCREW 8 18 X .380   $17.40
21B 242146401 SCREW,SER HEX WASH HD,1/4-20 X   $14.50
21C 241899703 SCREW,TRUSS HEAD,#10-32 X 1/4   $15.25
24 240383406 SCREW TRUSS HD QUAD 5304515677   $8.70
24A 240383412 SCREW,TRUSS HD QUAD,#10-15   $11.60
49 242130801 BASKET-FRZR,LOWER 5304526200   $155.90
49A 241780811 BASKET-FRZR,UPPER   $224.95
50 242219502 CLIP-BASKET,PULL SIDE   $18.15
51 242147108 SLIDE ASSY,RH,LWR BASKET 5303918694   $221.35
NI 242039702 SCREW   $4.35
51A 241894221 SLIDE ASSY,BASKET,RH,FZ   $136.45
51A 242039701 SCREW   $13.80
52 242147107 SLIDE ASSY,LH,LWR BASKET 5303918693   $245.30
52A 241894222 SLIDE ASSY,BASKET,LH,FZ   $137.15
53A 242216301 RETAINER, BASKET SET OF FOUR 5303918801   $12.35
79 218755401 SCREW SET   $23.95
80 218755504 SCREW-SHOULDER   $13.80
82 242131401 DIVIDER,BASKET   $63.05
84 241780905 DIVIDER,BASKET   $0.00
85 242139401 DIVIDER,BASKET,LOWER   $83.45
NI 242139201 SPRING-COMPRESSION,DIVIDER,LOW   $18.85
85A 242139301 SUPPORT-BEAM,DIVIDER,LOWER BAS   $75.50
85B 241872203 SUPPORT-BEAM,LOWER BASKET   $51.55
86 241807605 BAR 5304507340   $45.70
NI 242011101 PIN LOCK   $14.50
88 241824008 RACK-TILT OUT,DOOR WHITE   $118.30
89 241972302 BRACKET-FREEZER DRAWER   $104.50
NI 242147601 PLATE,TAPPING 5304497384   $15.95
90 242136901 BALANCE BAR   $36.30
91 241824102 CAP DOOR RACK   $16.70
91A 241824101 CAP DOOR RACK WHITE   $16.70
105 242116801 TRIM,BASKET   $18.15
NI 242015001 SCREW 10 8 19 X 1/2   $16.70
*The price can change whitout warning
